Auxiliary relay box (svt raptor only), Roadside emergencies – FORD 2012 F-150 Raptor v.3 User Manual
Page 345

Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
79
5A*
Rain sensor
80
—
Not used
81
—
Not used
82
—
Not used
83
—
Not used
84
—
Not used
85
—
Electric fan relay (low speed)
*Mini fuse **Cartridge fuse

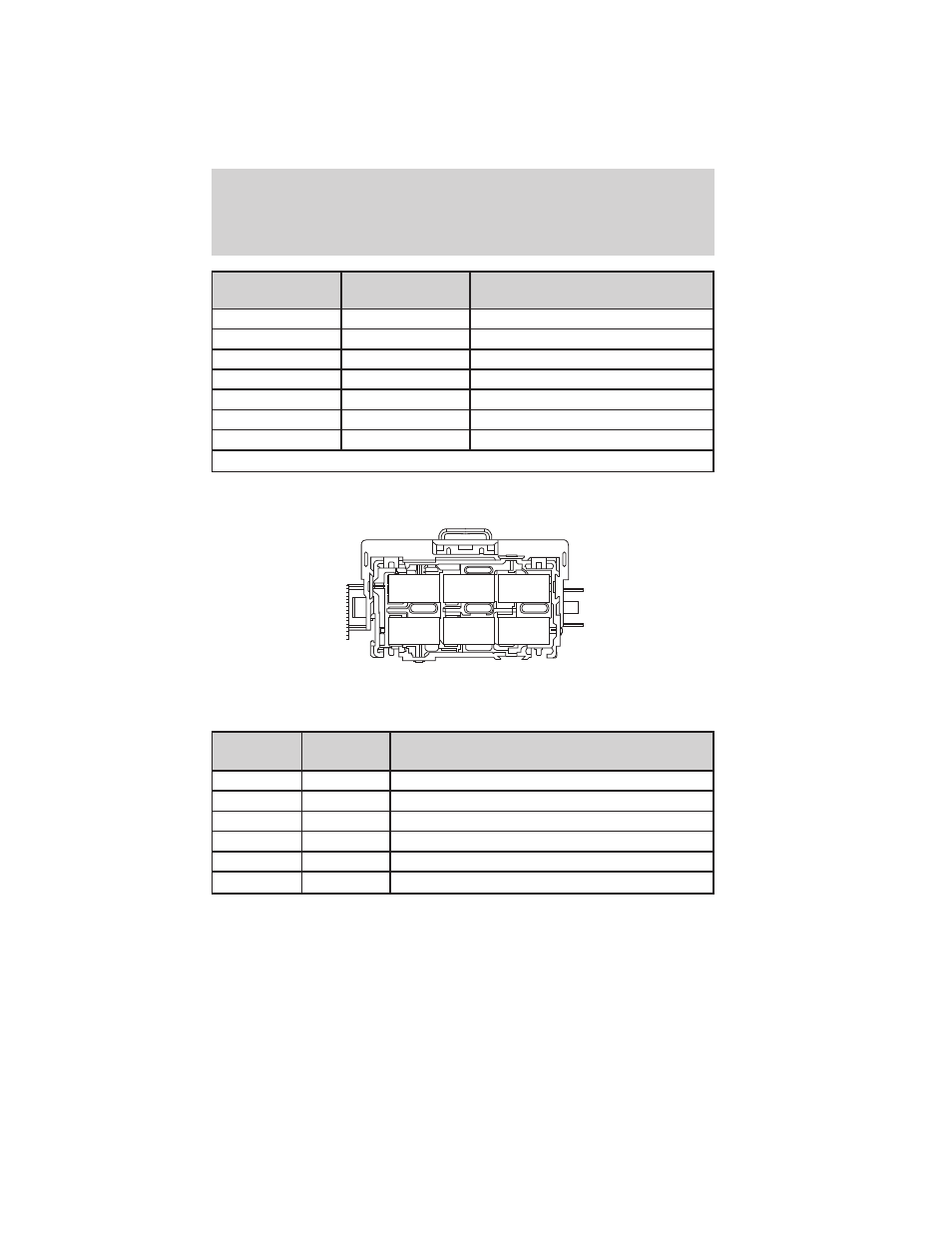

Auxiliary relay box (SVT Raptor only)
The relay box is located in the left rear corner of the engine
compartment.
Fuse/Relay
location
Fuse amp
rating
Description
1
—
Upfitter 1 relay
2
—
Upfitter 2 relay
3
—
Upfitter 3 relay
4
—
Upfitter 4 relay
5
—
Front camera washer relay
6
—
Not used
2
4
6
1
3
5
Roadside Emergencies
345
2012 F-150 (f12)
Owners Guide, 3rd Printing
USA (fus)
