FORD 2013 F-150 v.3 - Manual (Page 315)

Fuse or relay
number
Fuse amp
rating
Protected components
77 10A* Powertrain control module –
Voltage power 3 (Emission
related powertrain components,
Electric fan relays coil)
78 15A* Powertrain control module –
Voltage power 4 – Ignition coils
(3.5L, 3.7L, 5.0L engines)
20A* Powertrain control module –
Voltage power 4 – Ignition coils
(6.2L engine)
79 5A* Rain sensor
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Electric fan relay (low speed)
*Mini fuse **Cartridge fuse
Passenger Compartment Fuse Panel
The fuse panel is located under the right-hand side of the instrument
panel.

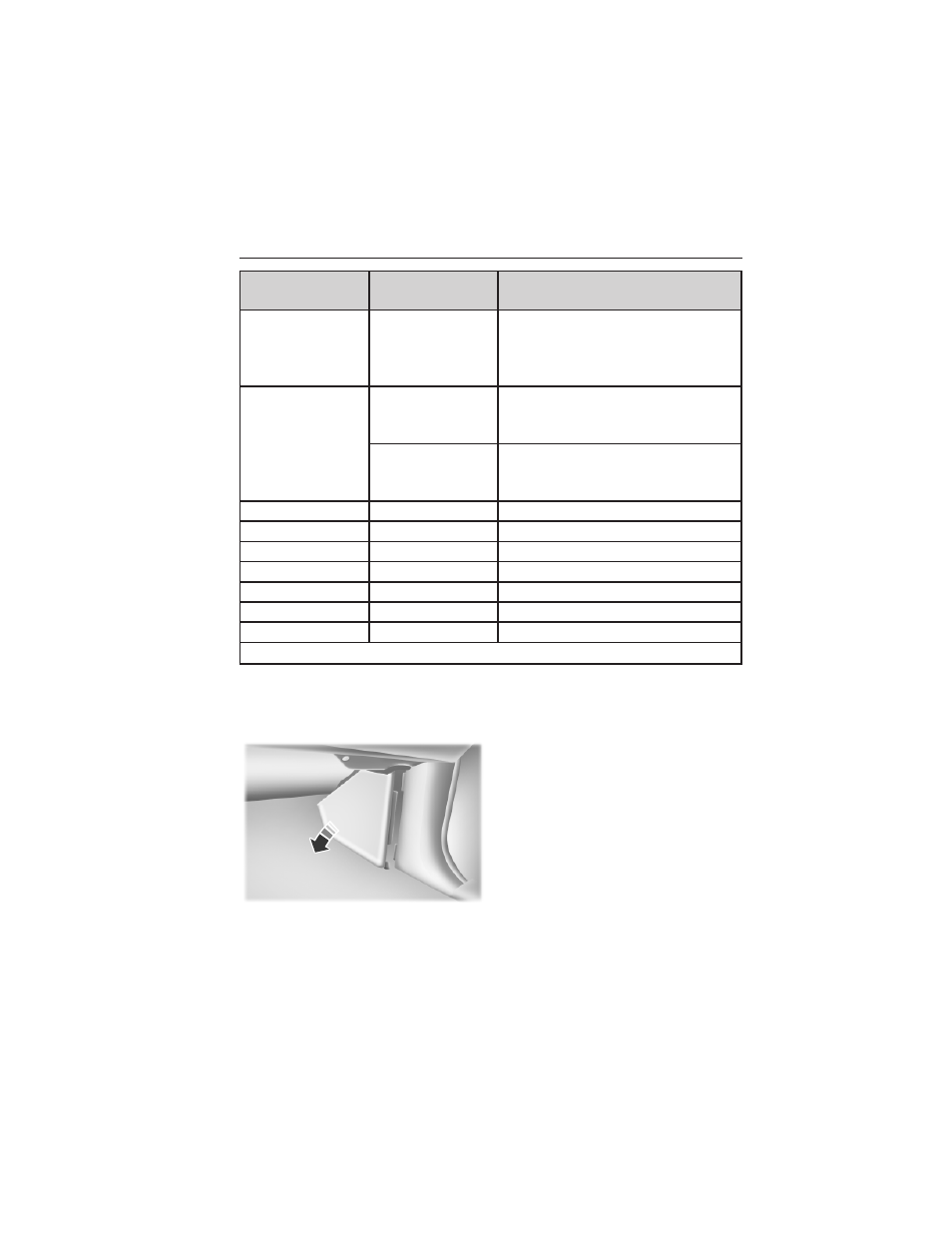

To remove the trim panel for access
to the fuse box, pull the panel toward
you and swing it out away from the
side and remove it. To reinstall it, line
up the tabs with the grooves on the
panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the
cover, then pull the cover off.
