27
TriPod
™
LT Folding Back
The TriPod
™
LT comes standard with a
folding back.

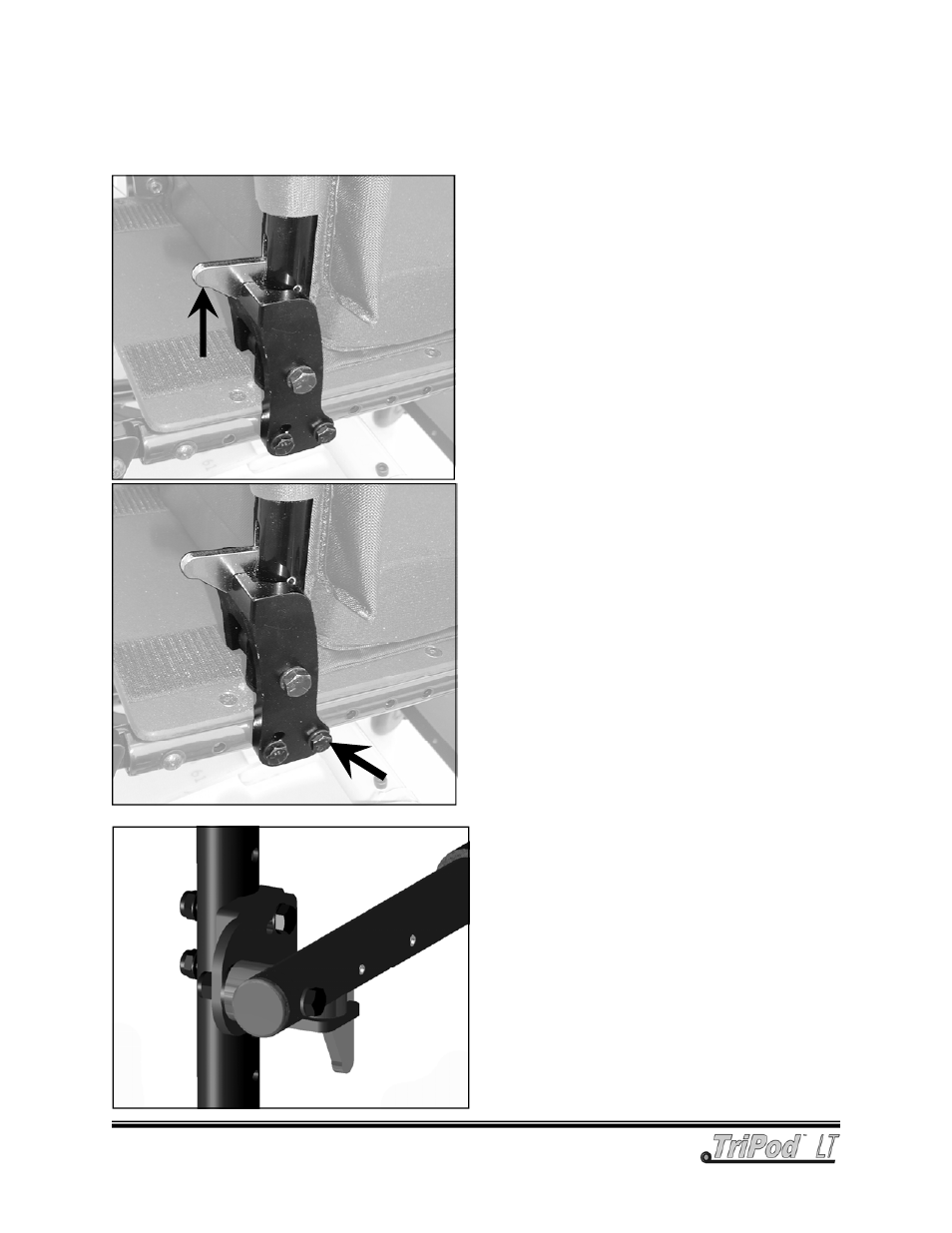

1. To fold the back down, pull upward on the
trigger while pushing back canes forward
toward seat.
2. To place the back cane to the upright
position, pull back canes up until trigger
snaps into place.
Note: The back canes fold down completely
when using a solid seat and back. When using
a sling seat and back the back canes will only
fold partially.
Adjustments
Back Cane Adjustment
The angle and depth of the back canes
may be adjusted by repositioning the back
cane pivot plate in the pre-drilled holes on
the frame.
Flip Arm / Locking Arm
To adjust height of armrests, loosen and
remove the bolts and nuts holding the arm
to the back cane tube. Align holes in arm
with holes in back cane tube at desired
height. Reassemble with bolts and nuts.
