Main Frame—Footboards

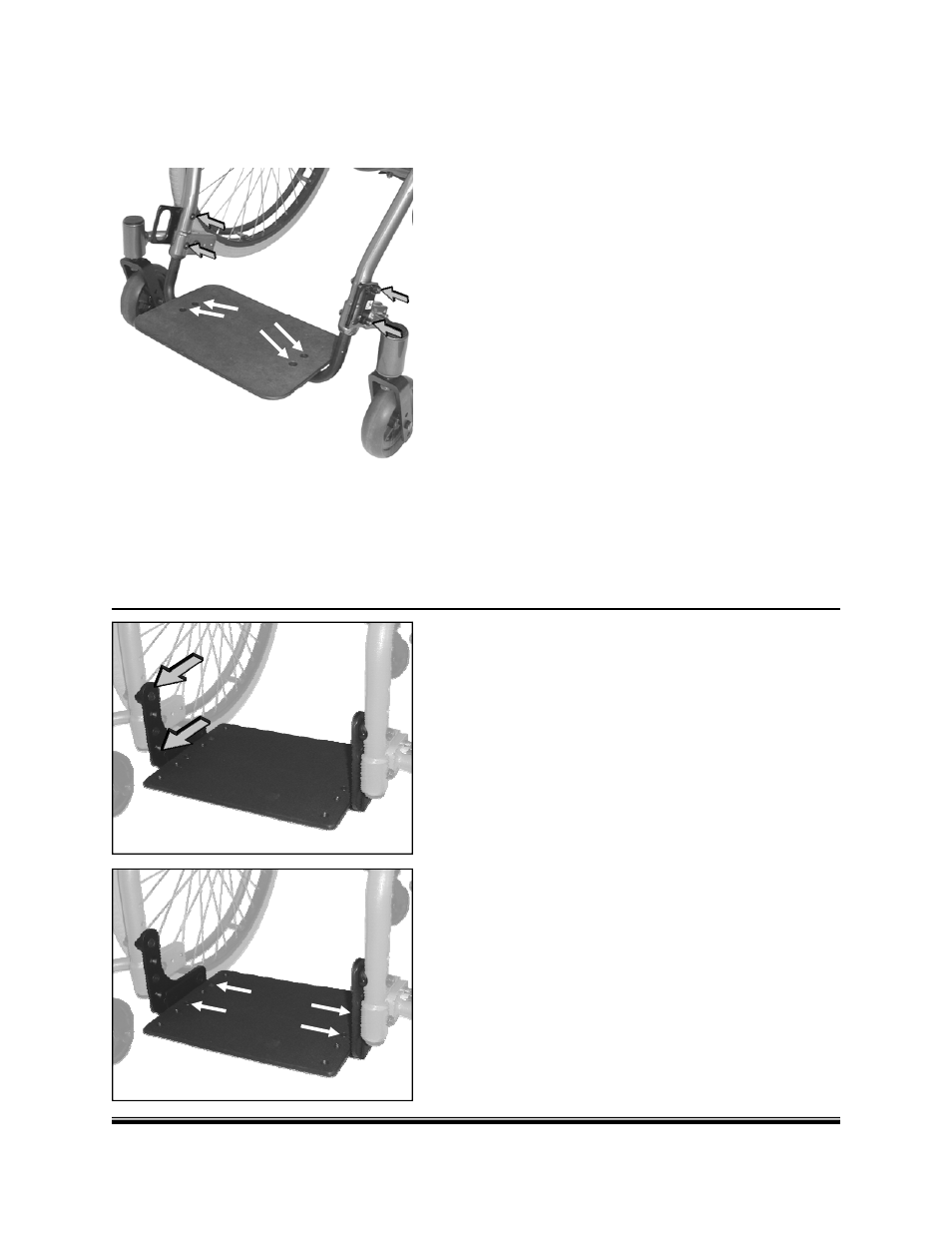

Adjustable Footboard
To adjust the height of the footboard:
1. Remove the screws and nuts, on each side,
holding the footboard in place. Position the
footboard up or down, aligning with holes in the
frame.
2. Replace the screws and nuts.
3. Tighten
securely.
Footrest Angle
To adjust the footrest angle:
1. Loosen the (2) screws and nuts on both sides of
the footboard, shown (white arrows)
2. Position the footplate to the desired angle.
3. Tighten the (2) screws and nuts securely.
Adjustable Flip Back Footboard
To adjust the height of the footrest:
1. Remove the (2) screws and nuts, on each side,
holding the footrest hanger brackets in place.
Position the footboard up or down, aligning with
holes in the frame.
2. Replace the screws and nuts.
3. Tighten
securely.
Footrest Fore and Aft Position
To adjust the footrest fore and aft position:
1. Remove the (2) screws and nuts on each side of
the footboard, shown.
2. Position the footplate to the desired location,
aligning holes in footboard with holes in “L”
brackets.
3. Replace screws and nuts.
4. Tighten securely.
