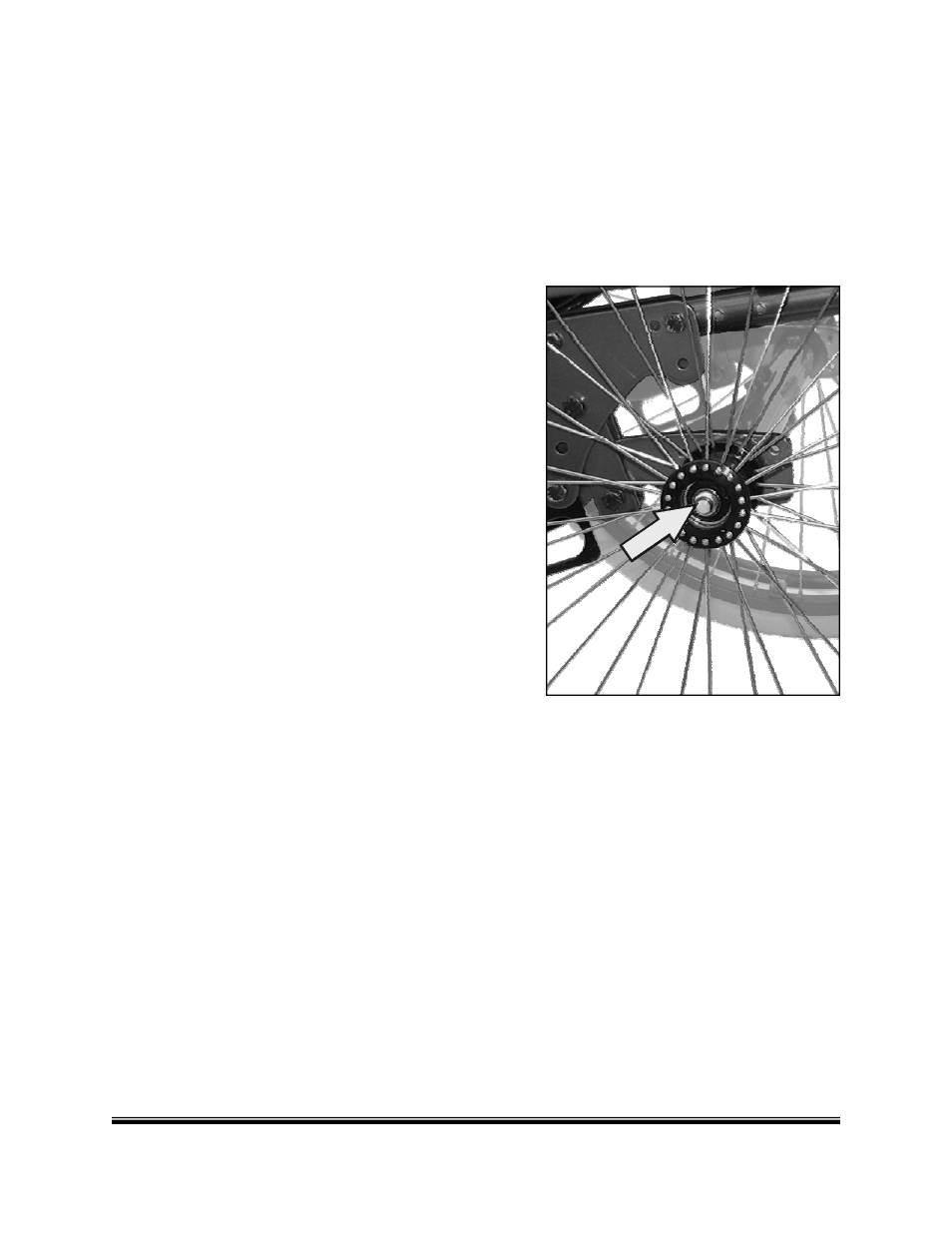

Quick Release Axle
The TriPod
™
LT
is equipped with double lock quick
release axles that release with the push of a button.
This double lock quick release mechanism allows the
large drive wheels to be easily removed for transpor-
tation or storage.
To remove the large Drive wheel:
1. Unlock the wheel lock.
2. Grasp the frame with one hand.
3. With the other hand, squeeze the quick release
button.
4. The wheel will then pull off easily.
Warning: the axle is not properly locked until the
outside quick release button pops out to its fully
extended position.
Main Frame—Quick Release Axle
