Removing EGR Cooler

STEP 13:

Remove the V-Band clamp that is connecting

the EGR cooler and the exhaust crossover

elbow. (Fig. 8)

STEP 14:

Remove the exhaust crossover elbow that is

held in place by two 15mm nuts. Install the

smaller of the two exhaust block off plates.

Location noted in Fig. 9.

STEP 15:

Remove the EGR cooler by pulling up and out

towards the front of the vehicle.

STEP 16:

Remove the EGR cooler mounting bracket by

unbolting the two 14mm bolts that bolt

directly to the engine. Fig. 10

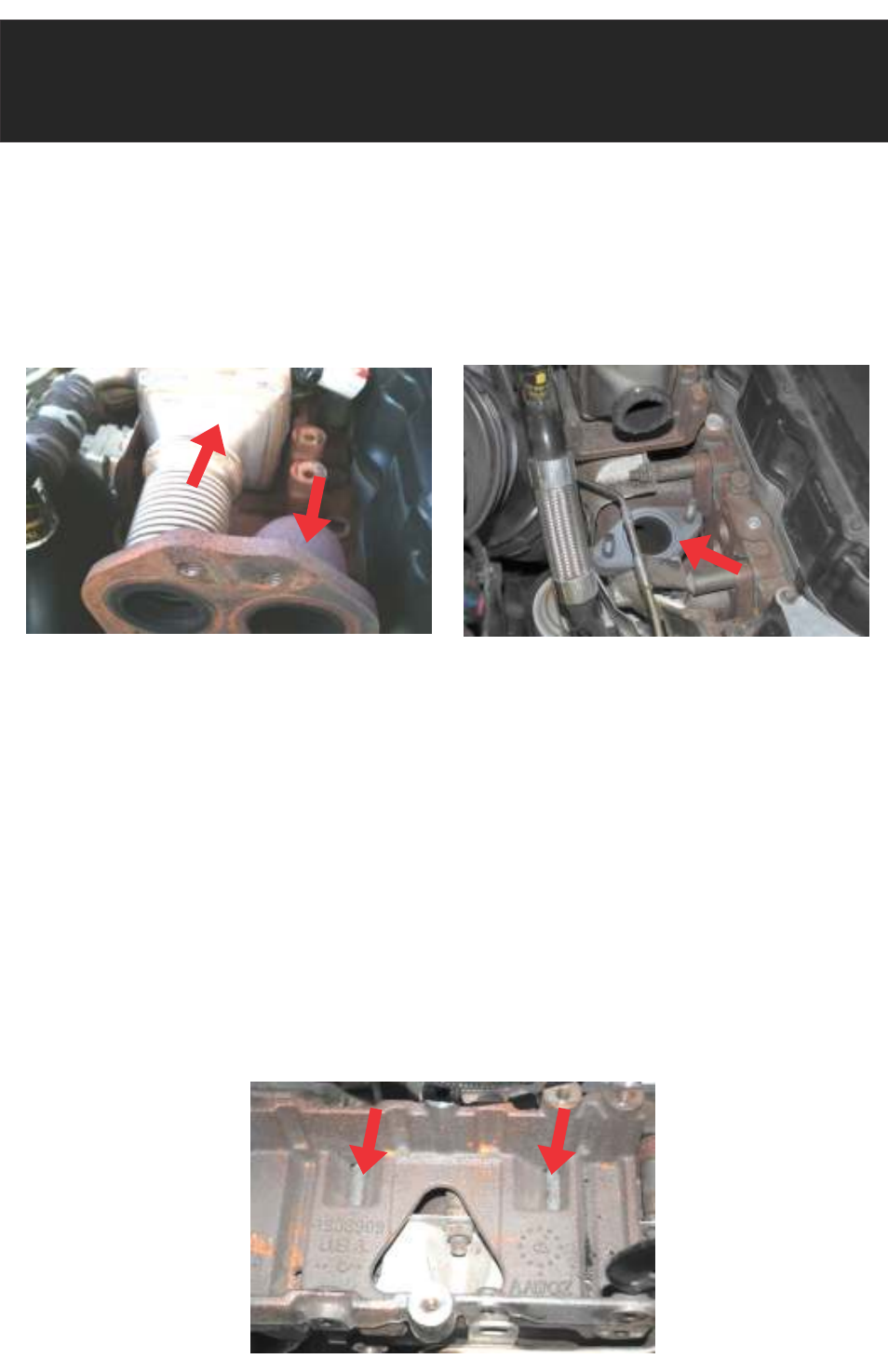

Fig. 8

EGR Cooler

Exhaust

Crossover

Elbow

Fig. 9

Fig. 10
