Drucker Diagnostics Model 614B Centrifuge User Manual

Page 2

Page 2

Model Description:

The Model 614B is a continuous duty centrifuge designed for the small lab or

doctor’s office for the purposes of separating laboratory fluids. The unit is controlled

by a mechanical timer settable from 1 to 30 minutes. Samples can be safely viewed

through the transparent lid. In the event that the lid is opened during a run, the

power to the motor is disconnected.

For warranty information, turn to page 10.

* The rotor and rotor accessories are rated for a rotation frequency of 3,500 RPM.

Table of Contents

Model Description

pg. 2

Supplied Equipment

pg. 2

Features

pg. 3

Specifications

pg. 3

Setup Location and Procedure

pg. 4

Operation

pg. 5

Rotor Removal and Installation

pg. 5

Tube Holder Configurations

pg. 6

Care and Preventative Maintenance pg. 7,8

Safety

pg. 8

Calibration and Ground Testing

pg. 8

Troubleshooting

pg. 8

Replacement Parts

pg. 9

Available Accessories

pg. 9

Warranty

pg. 10

WARNING:

For the safety of both the

operator and service personnel, care should

be taken when using this centrifuge if

handling substances that are known to be

toxic, radioactive or contaminated with

pathogenic microorganisms. When Risk

Group II materials are used, (as identified in

the World Health Organization “Laboratory

Bio–Safety Manual”), a Bio–Seal should be

employed. The Bio–Seal accessory for the

model 614 tube holders is the non–aerosol

shield cap, p/n 7713011. In the event that

materials of a higher risk group are being

used, more than one level of protection must

be provided. The use of flammable or ex-

plosive materials as well as those materials

which have a vigorous chemical reaction is

prohibited.

For your safety and the durability

of your machine, never transport or store

centrifuge with tube holders inside machine.

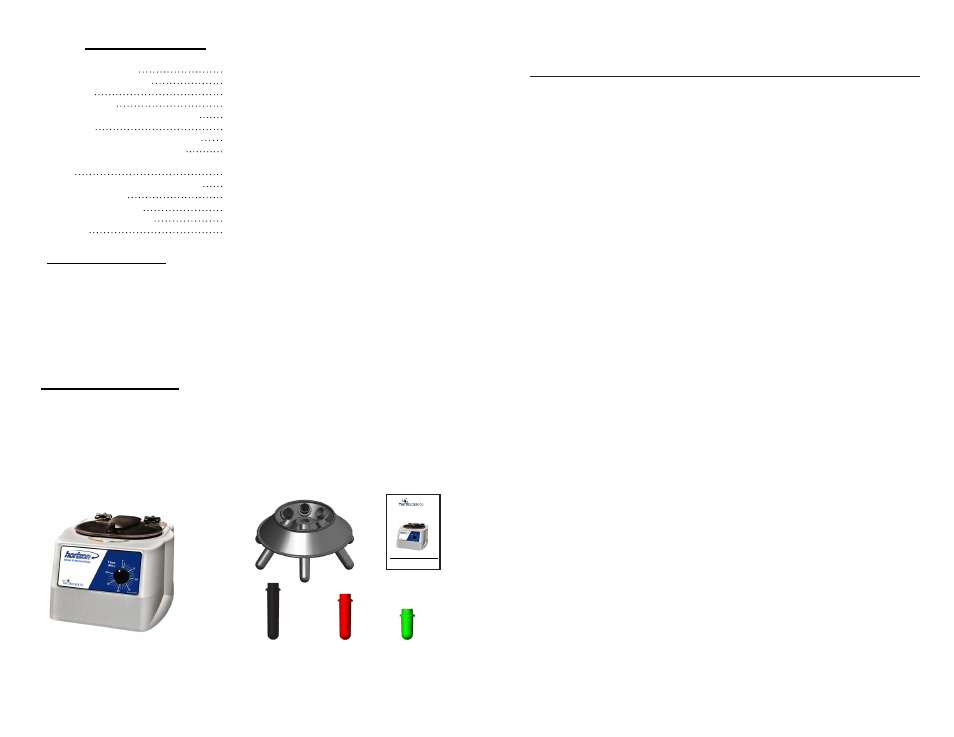

Supplied Equipment*:

The following items come standard with each

Model 614B centrifuge:

1. One (1) six-place fixed-angle rotor

2. Operator’s manual

p/n 03-0-0002-0040

3. Six (6) 125 mm tube holders

4. Six (6) 100 mm tube holders

5. Six (6) 75 mm tube holders

p/n

7786047

p/n

7713032

p/n

7713031

p/n

7713033

x 6

Operator’s Manual

Model

614B • Laboratory Centrifuge

Rev. A

P/N 03-0-0002-0040

NOTES:

Page 11
