COLLAR PARTS
Transmitter Parts
1. Antenna
2. Stimulation intensity selection dial
3. Toggle switch allows you to select
between low and high tones.(On two-dog
models, the toggle switch allows you to
select between black and orange collars.)
4. Battery charging receptacle and cover
plug
5. Constant Button -implements constant
stimulation as long as you hold the
button down (for up to 12 seconds)
6. Nick Button - implements a very short
single pulse of electrical stimulation
7. Locate Button - causes the collar horn to
emit a series of beeps when pushed
8. Transmitter Indicator Light - indicates
when the transmitter is activated
9. Mode button- Run/point and Point mode
8
TRANSMITTER & COLLAR PARTS
COLLAR PARTS

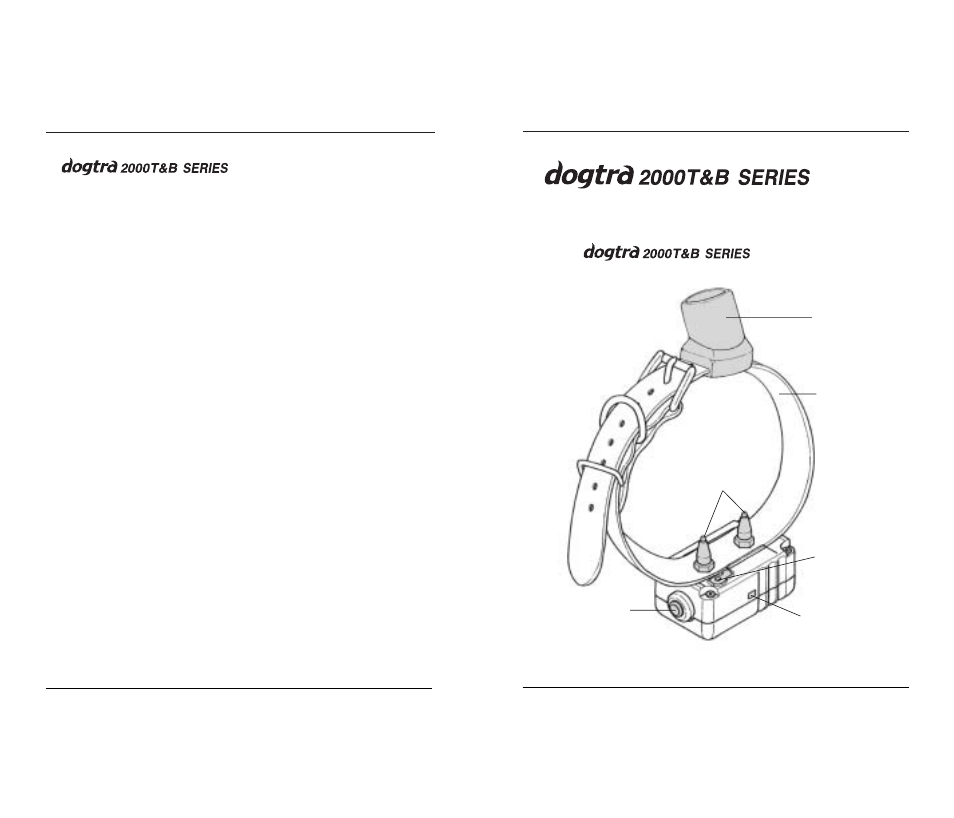

Collar Parts
Beeper horn
Collar strap
Power switch -
on/off push button
Collar indicator
light - indicates when
the collar is on/off
and when the battery is low.
Battery charging
receptacle and
cover
Contact points for
e-collar function
