CF 141

4

32-1032 REV 1 0405


POWER SWITCH
Use this switch, in the left rear of the Control Unit, to turn on and turn off power to the test stand. Power is
indicated by an amber light on the face of the Control Unit.

POWER PLUG RECEPTACLE
Located in the left rear of the Control Unit. Plug the power cord in here.

CONTROL CABLE
Plug this cable into the lower male connector on the test stand, adjacent to the motor.

SPECIFICATIONS

Load capacity

500 lbF [2.2 kN]

Speed range

0.2 - 5.5 in/min [5 - 140 mm/min]

Maximum travel

4” [102 mm]

Speed variation with load ±0% (Stepper motor driven)
Power

Universal input, 80 - 240 VAC, 50/60 Hz

Fuse type

1.2A, 250V, 3AG SLO BLO

Weight (test stand only)

TSFM500: 36 lb [16.3 kg]
TSFM500H: 30 lb [13.6 kg]

Control unit weight

2.7 lb [1.2 kg]

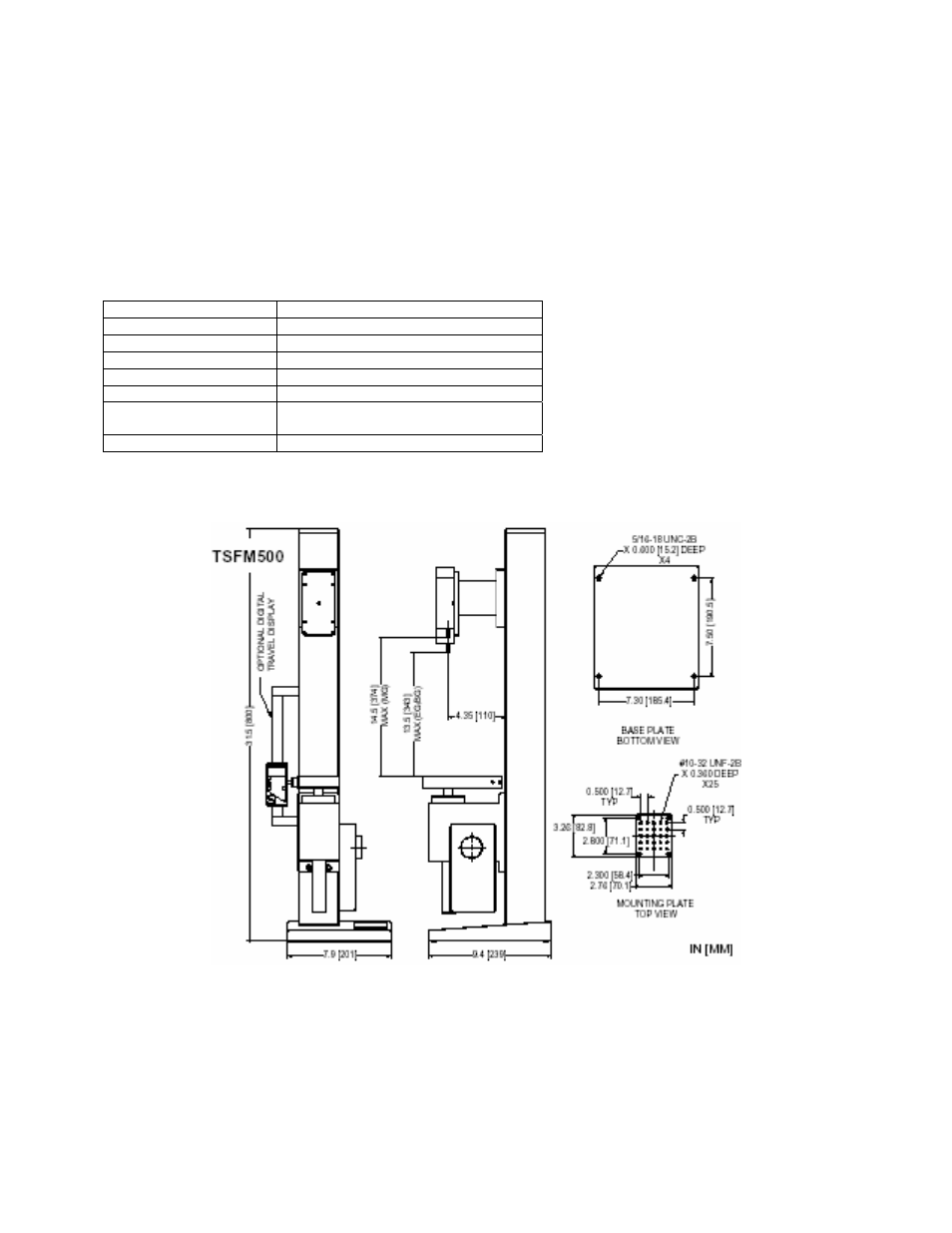

DIMENSIONS

IN [MM]
