12.5 Initial settings

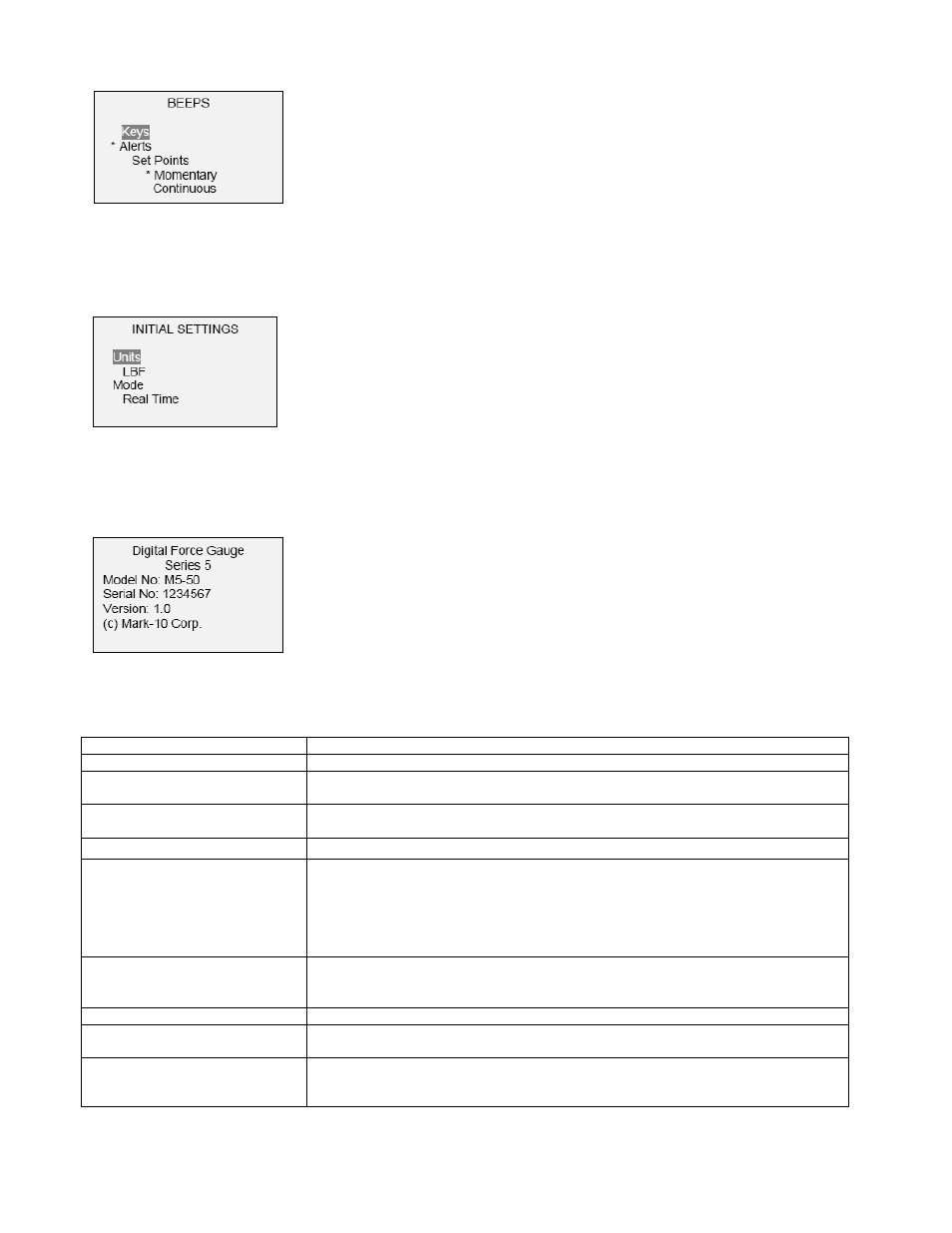

This section is used to configure the initial settings upon powering on the gauge. The initial units of
measurement and the primary reading measurement mode may be configured. To access these settings, select
Initial Settings from the menu. The screen will appear as follows:
The default values are LBF and Real Time.
27
12.6 Information / Welcome Screen
The following screen is displayed at power up and can be accessed at any time by selecting Information from
the menu:
13 SPECIFICATIONS
13.1 General
Accuracy: ±0.1% of full scale ±1 digit
Sampling rate: 7,000 Hz
Power: AC or rechargeable
battery Low battery indicator appears when battery level is low, and gauge powers off
automatically when power reaches critical stage.
Battery life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs: USB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control
Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable
settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default
settings, averaging mode, external trigger, passwords, key tones, audio alarms,
backlight, calibration
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only):
M5-012 - M5-100: 1.0 lb [0.45 kg]
M5-200 - M5-500: 1.2 lb [0.54 kg]
Included accessories:
Carrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery,
USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO
software, and user’s guide), NIST-traceable certificate of calibration with data
13.2 Factory Settings
