23
WM5-96 Instruction Manual
The digital outputs highlighted in the
below mentioned table, are subject to
a self test that implies their brief acti-
vation when the instrument is switched on.
Their use as pulse outputs is therefore not
recommended.

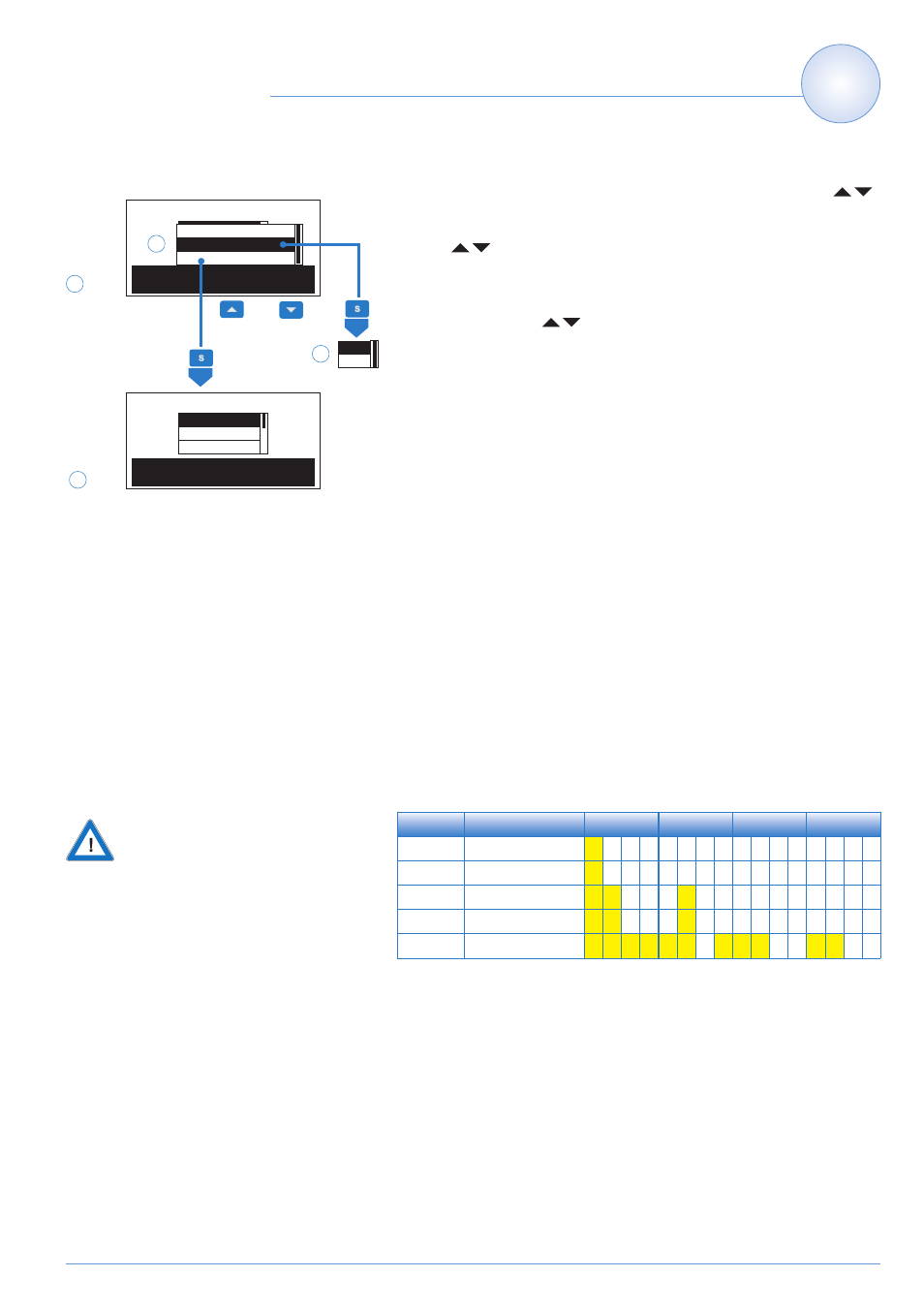

Programming WM5 96
ALARM (5) : the digital output is enabled only if the expected alarm
status occurs. Select the ALARM function by means of the “ ”
keys and confirm with the “S” keys (5a) .Then select “ND” (normally
de-energized relay) or “NE” (normally energized relay) (5b) by means
of the “ ” keys. To program the values of the set-points refer to
the “alarm” menu.
REMOTE CONTR.
(5) : the digital output can be enabled by means of a
command sent by means of serial port. Select the REMOTE CONTR. func-
tion by means of the “
” keys, then press the “S” key to confirm.
Proceed, if necessary, with the configuration of the other digital out-
puts
(6) .
(19-1)
******DDIIGGIITTAALL OOUUTTPPUUTTSS******
AALLAARRMM
NN DD
OUT D0
OUT D1
OUT D2
6
Code Description Slot A Slot B Slot C Slot D
AO1058 1 relay output A0 B0 C0 D0
AO1059 1 open coll. output A0 B0 C0 D0
AO1035 2 relay outputs A0 A1 B0 B1 C0 C1 D0 D1
AO1036 2 open coll. outputs A0 A1 B0 B1 C0 C1 D0 D1
AO1037 4 open coll. outputs A1 A2 A3 A4 B1 B2 B3 B4 C1 C2 C3 C4 D1 D2 D3 D4
******DDIIGGIITTAALL OOUUTTPPUUTTSS******
AALLAARRMM
NN DD
ING. C1
ING. C2
ING. C3
5
PULSE
ALARM
REMOTE CONTR.
ND
NE
5b
5a
