22

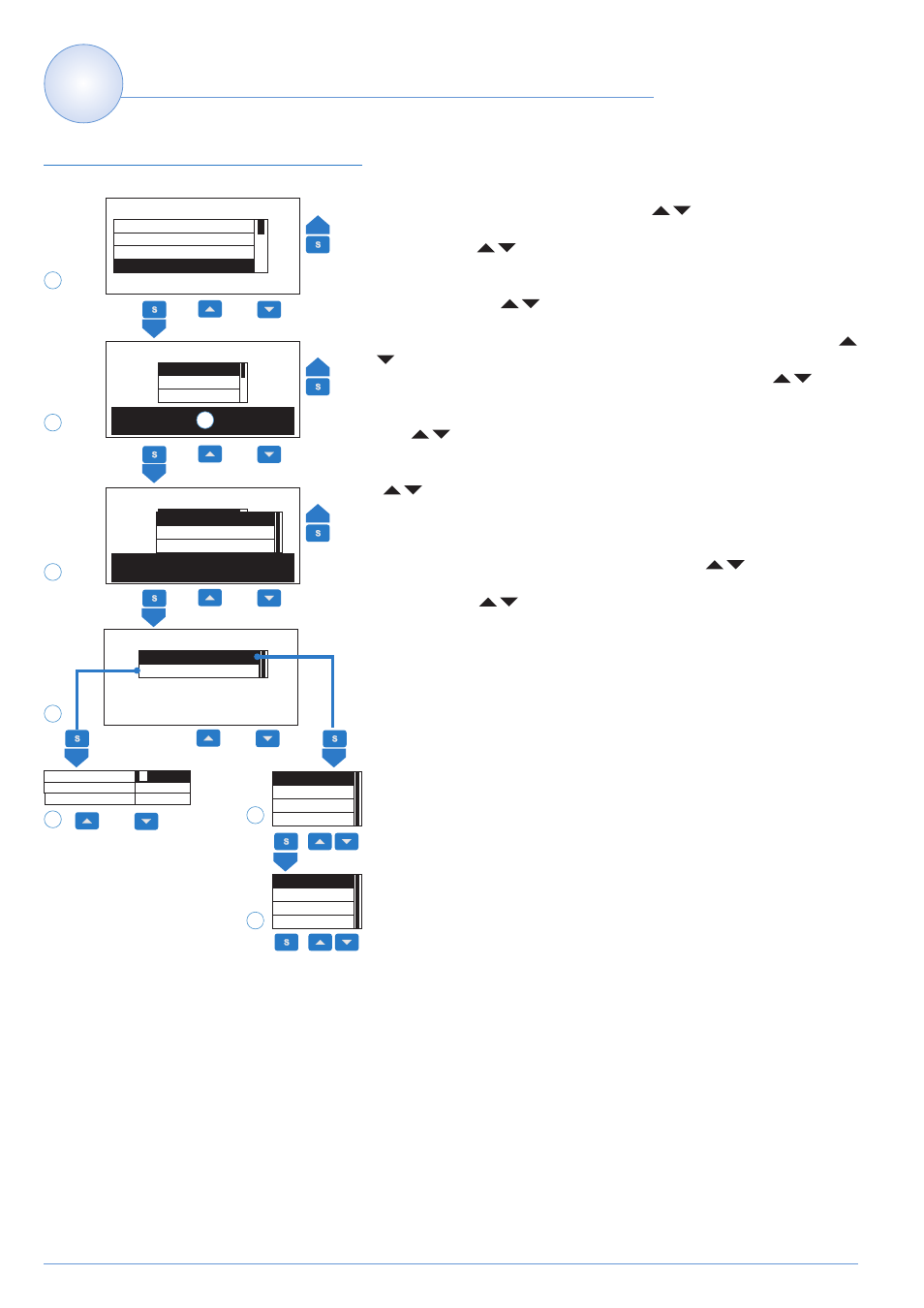

Programming WM5 96
This function allows the selected function to be coupled to the select-
ed digital output: pulse, alarm, remote control. Select the DIGITAL
OUTPUT function
(1)
by means of the “
” keys and confirm with
“S”.
(2)
Select the digital output (ex.: D0=digital output 0 of slot D) by
means of the “
” keys, the instrument displays the function of the
selected output
(a)
, press “S” to confirm the selected digital output
(3)
select the operating mode to be coupled to the selected digital output
by means of the “
” keys. The functions are the following:
PULSE
(3)
: the measured energy is retransmitted by the digital output
by means of pulses. Choose the PULSE function by means of the “
” keys and confirm with “S”. Then select the type of energy to be
retransmitted: select ENERGY TYPE by means of the “
” keys
and confirm with “S”, the instrument displays the list of energies (4a),
(kWh +, kWh-, kvarh +, kvarh-): select the desired energy by means of
the “
” keys and confirm with the “S” key: for each energy it’s
possible to retransmit the total energy metering (TOT) or the tariffs
from T1 to T12
(4b)
, choose the desired energy detail by means of the
“
” keys and confirm with the “S” key. At the end of the proce-
dure, the value of the pulse associated to the energy measured by the
instrument is to be decided, that is the number of pulses generated by
the digital output for each measured kWh+ (or kWh- or kvarh+ or
kvarh-). Choose PULSES
(4)
by means of the “
” keys and con-
firm with the “S” key, then
(4c)
set the desired value of the pulses by
means of the “
” keys, confirm the value with the “S” key.
WM5-96 Instruction Manual
Digital outputs
************MMAAIINN MMEENNUU************
RREEVV.. 11..44..22..66 ((AAVV55))
METERS
DISPLAY PAGE
DIGITAL INPUTS
DIGITAL OUTPUTS
******DDIIGGIITTAALL OOUUTTPPUUTTSS******
AALLAARRMM
NN DD
OUT D0
OUT D1
OUT D2
******DDIIGGIITTAALL OOUUTTPPUUTTSS******
AALLAARRMM
NN DD
ING. C1
ING. C2
ING. C3
1
2
3
> 2s
> 2s
Measure
> 2s
Go back
Go back
PULSE
ALARM
REMOTE CONTR.
********PPUULLSSEE MMEENNUU********
ENERGY TYPE
PULSES
kWh +
kWh -
kvarh +
kvarh -
PULSE /kWh
1
.000
0
min
0.001
0
max
1000
0
123...
4
TOT
L1
L2
L3
a
4a
4b
4c
