Configuration
Mode and connection type
72
71
PQTSoft Network

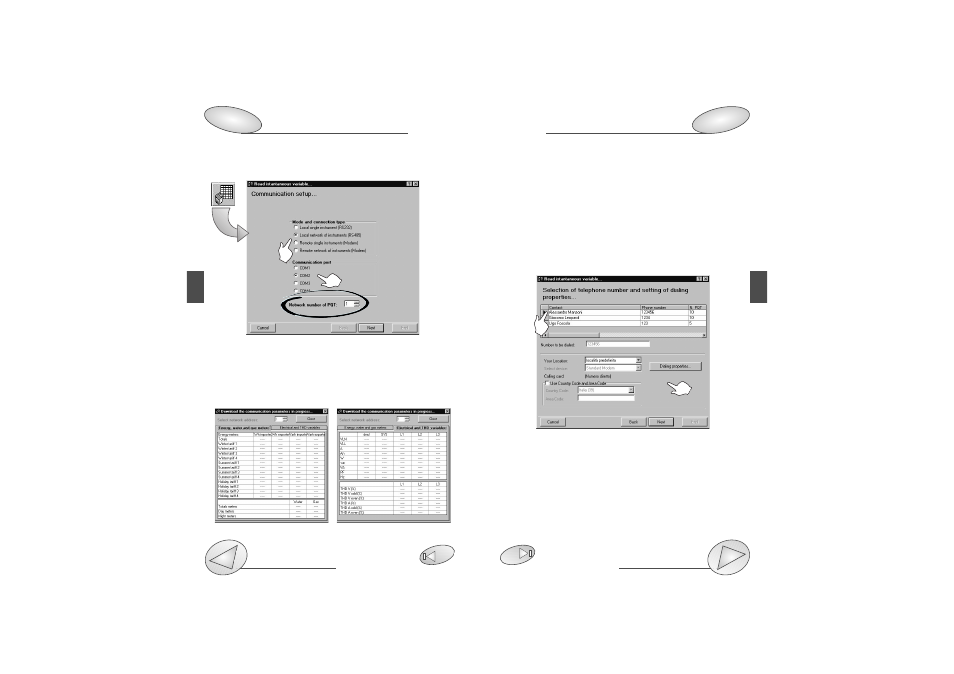

■ Reading of instantaneous variables
This function allows the reading of all the variables and
meters in real time divided into two pages.
After clicking the “function” button on the main menu’s tool
bar, set the communication type [1] and then the commu-
nication port with the PC [2]. Clicking the “end” button, the
relevant dialog box (see below) will be opened.
If you have selected “local network of instruments (RS485),
it is necessary to enter the number of PQTs installed in the
network (see figure on page 82) moving the arrows on the
right of the number up and down.
❑
If “Modem” has been selected in the “Communication
setup”
If you have selected “modem” in the “Communication
setup...” dialog box, the user will have to choose which
telephone number is to be dialled among those in the “con-
tact” list.
[1] Click the contact to select it. To proceed, press the
“Next” button.
[2] For further information on the management of the con-
tacts and the dialling properties see page 87.
1
2
1
2
