Bio-Rad Profinia Protein Purification System Kits User Manual
Page 13

Prepare For Cartridge Line
Priming: This screen directs users to
make sure the fittings for both
cartridge positions 1 and 2 are
connected without any cartridges in
place (Figure 8). Pressing Start
primes the cartridge lines with buffer
at high flow rate and then brings
users to the Install Cartridges screen.
Install Bio-Scale Mini Cartridges:
Disconnect the upper and lower
cartridge holder fittings. Unscrew the
bottom luer cap of a cartridge and
attach it by rotating; clockwise.
Remove the top luer cap of the
cartridge. Attach it by lowering the top
holder and tightening the fitting into
place (Figure 9).
9

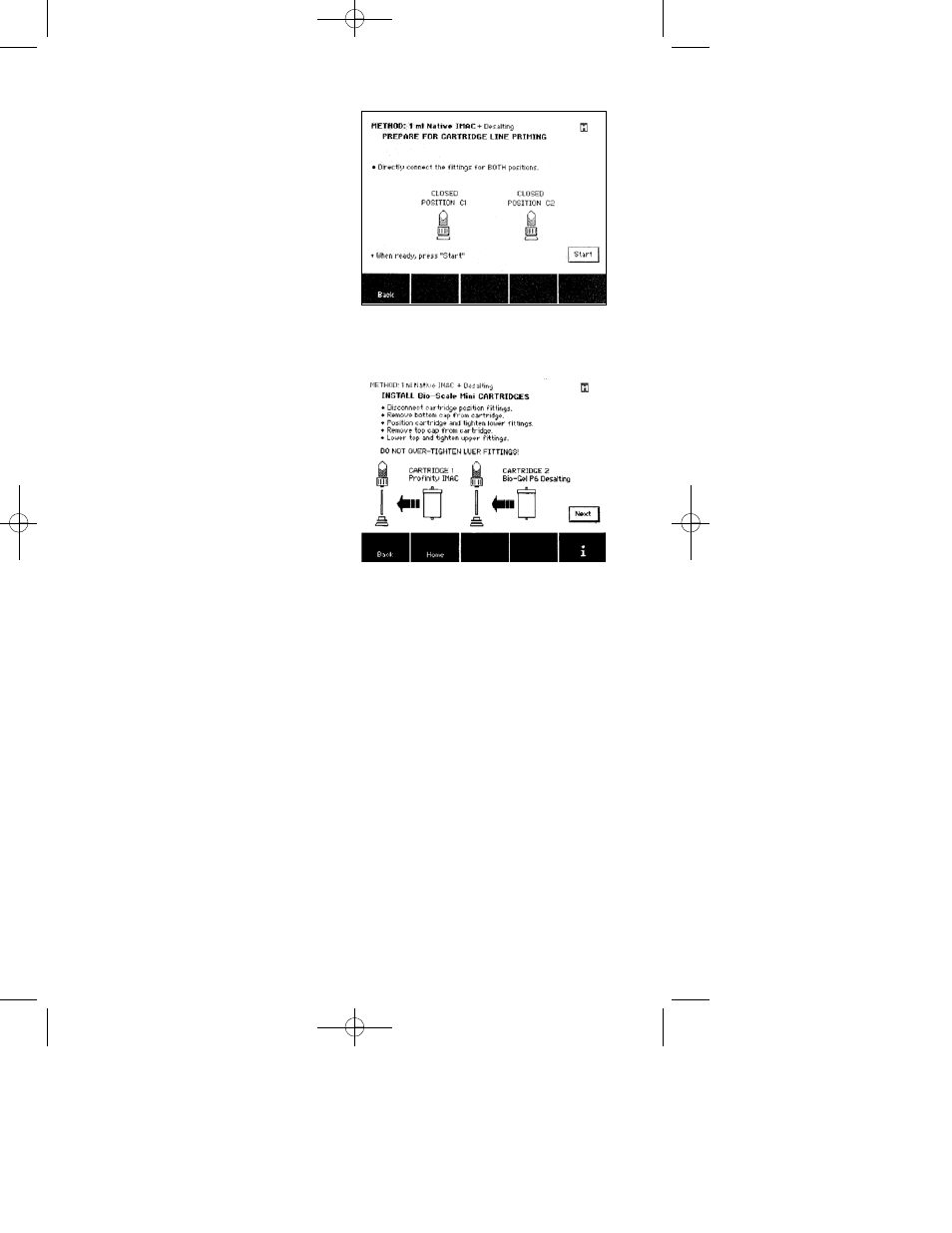

Fig. 9. Installation of cartridges on the Profinia
system.
Fig. 8. Instruction screen for cartridge line
primary before cartridge installation.
10006057E:4006073B.QXD
11/11/2009
10:40 AM
Page 9
