Valve Plumbing

Both the V9-8 and AV9-8 valves accept 1/4-28 flat bottom fittings, and either 1/16" OD/0.020" ID Tefzel

tubing or 1/8" OD, 0.062" ID PTFE tubing may be used. To maintain bio-compatibility, all wetted parts are

non-metallic. The V9-8 and AV9-8 Stream Select valves have numerous uses as part of a chromatography

system, and this will determine the plumbing. Three examples are provided in the following pages.

Note: Always manually prime all pre-column valves before initiating a run. Failure to displace air with buffer could stall the

BioLogic Gradient Pumps or lead to erratic flow.

Example 1. Sample Selection.

The AV9-8 may be used for selecting up to 8 samples for consecutive chromatography runs. Typically, one of the

eight positions holds a rinse solution to clean the sample loop and fill lines between sample injections. For this

example, 1/16" OD/0.020" ID Tefzel tubing is recommended.

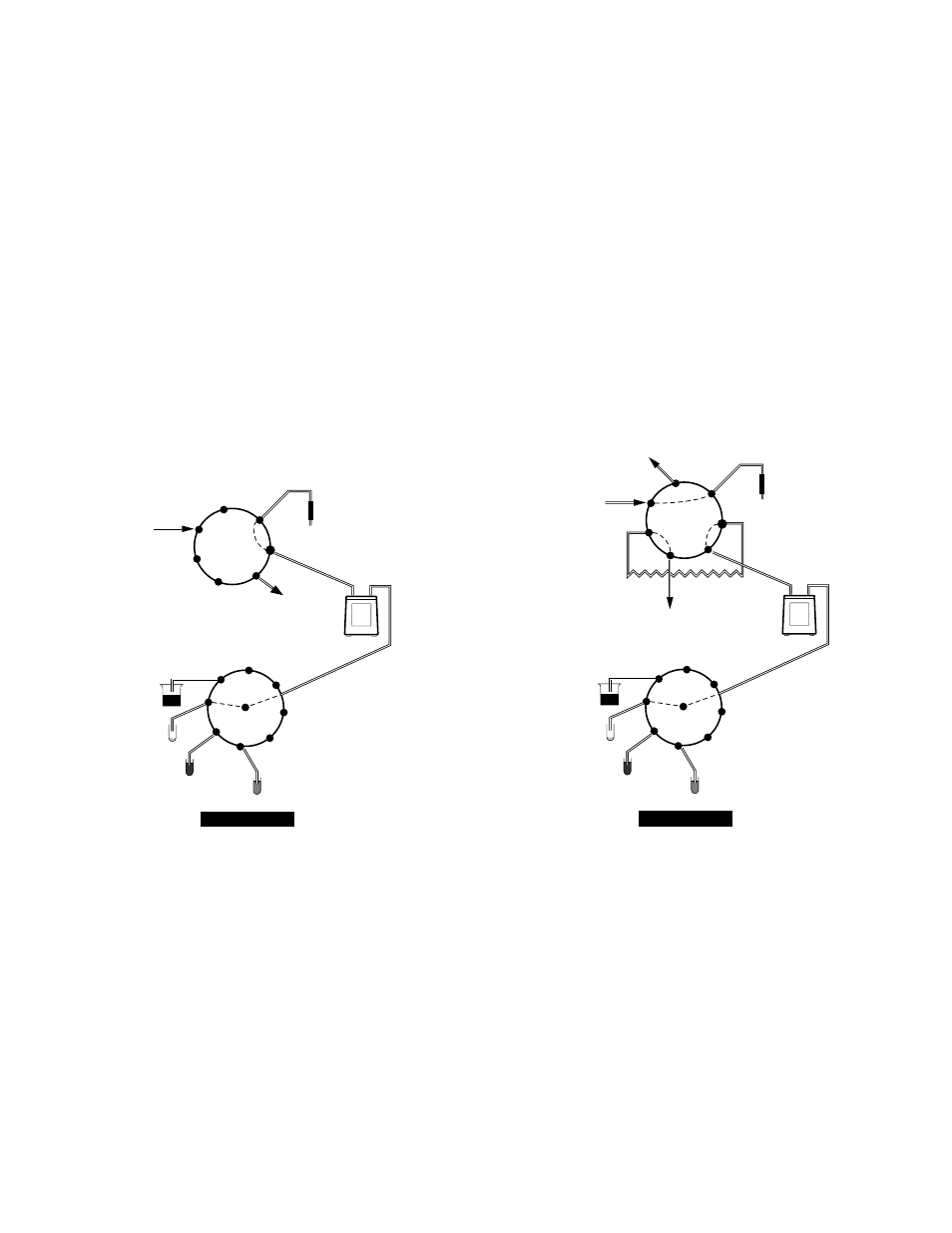

LOADING DIRECTLY ONTO A LOW PRESSURE COLUMN

USING A PERISTALTIC PUMP TO FILL A STATIC LOOP

In the illustration above, the following two configurations are shown:

Using a peristaltic pump to load directly onto a column: To load samples onto a column with low

backpressure, bypass the sample loop and directly load sample from the Model EP-1 Econo Pump onto

the column.

Using a peristaltic pump to fill a static loop: The system can be configured so that the Model EP-1

Econo Pump automatically loads the sample loop. Load at least a 3-fold excess of sample into a static

loop with the peristaltic pump. This helps to ensure that the sample loop is completely filled with

sample prior to injection.

EP-1 ECONO

PUMP

1

2

3

4

5

6

9

7

8

SAMPLE #1

SAMPLE #2

SAMPLE #3

1

2

3

4

5

6

7

COLUMN

WASTE

GRADIENT

PUMP

STATIC

LOOP

LOOP OVERFILL

TO WASTE

V7-3 OR AV7-3

LOAD

POSITION

V9-8 OR AV9-8

RINSE

LOAD

PUMP

1

2

3

4

5

6

9

7

8

SAMPLE #1

SAMPLE #2

SAMPLE #3

LOAD

PUMP

PURGE

1

2

3

4

5

6

7

COLUMN

GRADIENT

PUMP

V7-3 OR AV7-3

INJECT

POSITION

V9-8 OR AV9-8

RINSE
