Note: When scanning a small sized screen it is recommended that the appropriate location
template be used. This template will correctly align the small screen for scanning. This will
simplify the selection of scan coordinates and will help to minimize screen movement
during insertion of the tray.
Note: Do not bend the screen as this may damage the phosphor material.
• Insert the sample tray with screen completely into the scanner so that it engages the
locking clip and you hear a click.
• Close the scanner door.
1. 2.
3. 4.
5. 6.

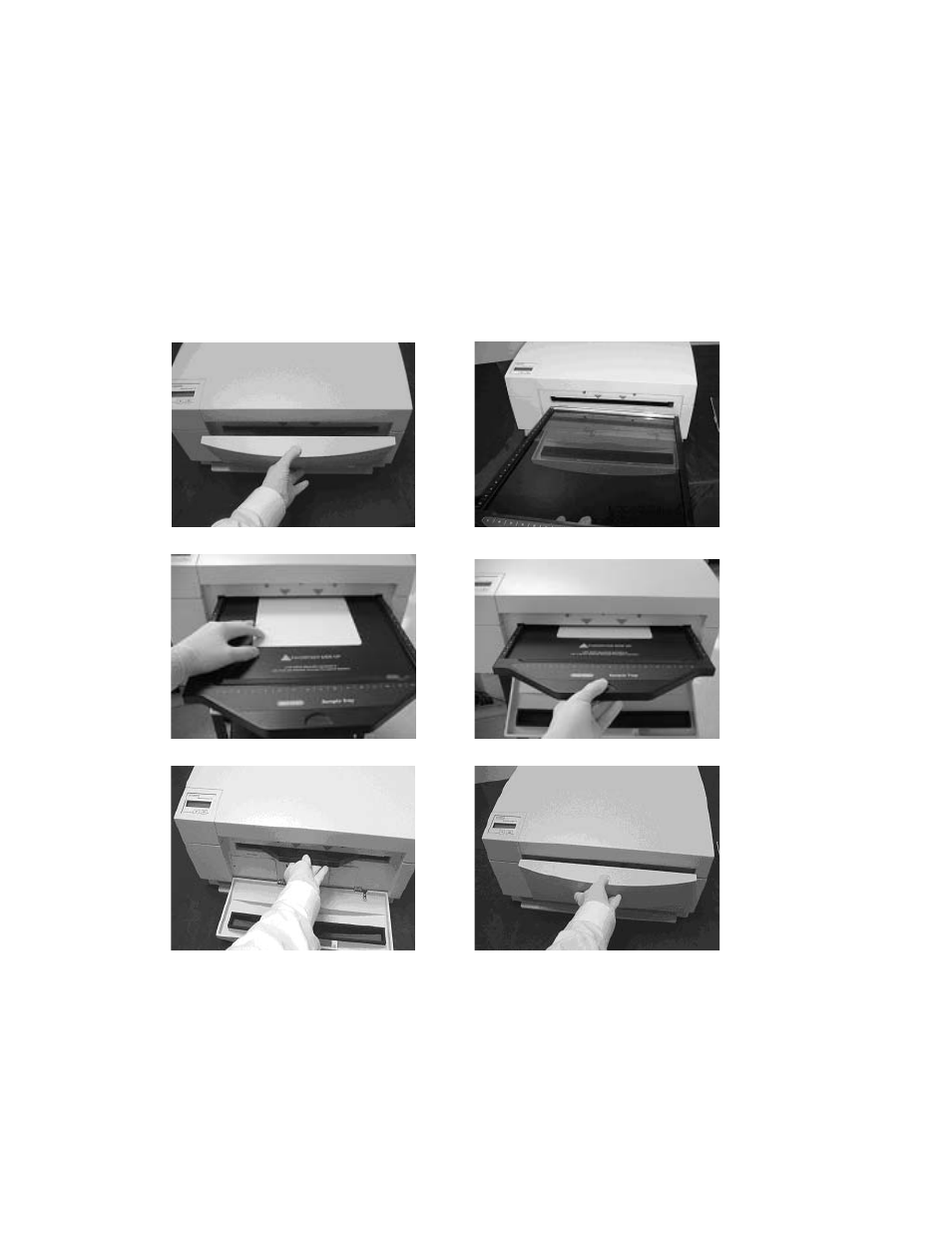

Fig. 4.7. Steps for inserting a screen into the scanner.
