12on-button board –18, 12 on-button board – Compaq Prosignia 340 Series User Manual
Page 44
4–18
Compaq Prosignia Desktop 340 Series Computer
Removal and Replacement Procedures
4.12 On-Button Board
1. Perform the preparation procedures.
2. Remove the hood.
3. Remove the front bezel. (Section 4.11)
4. Disconnect the on-button board connector from the system board.

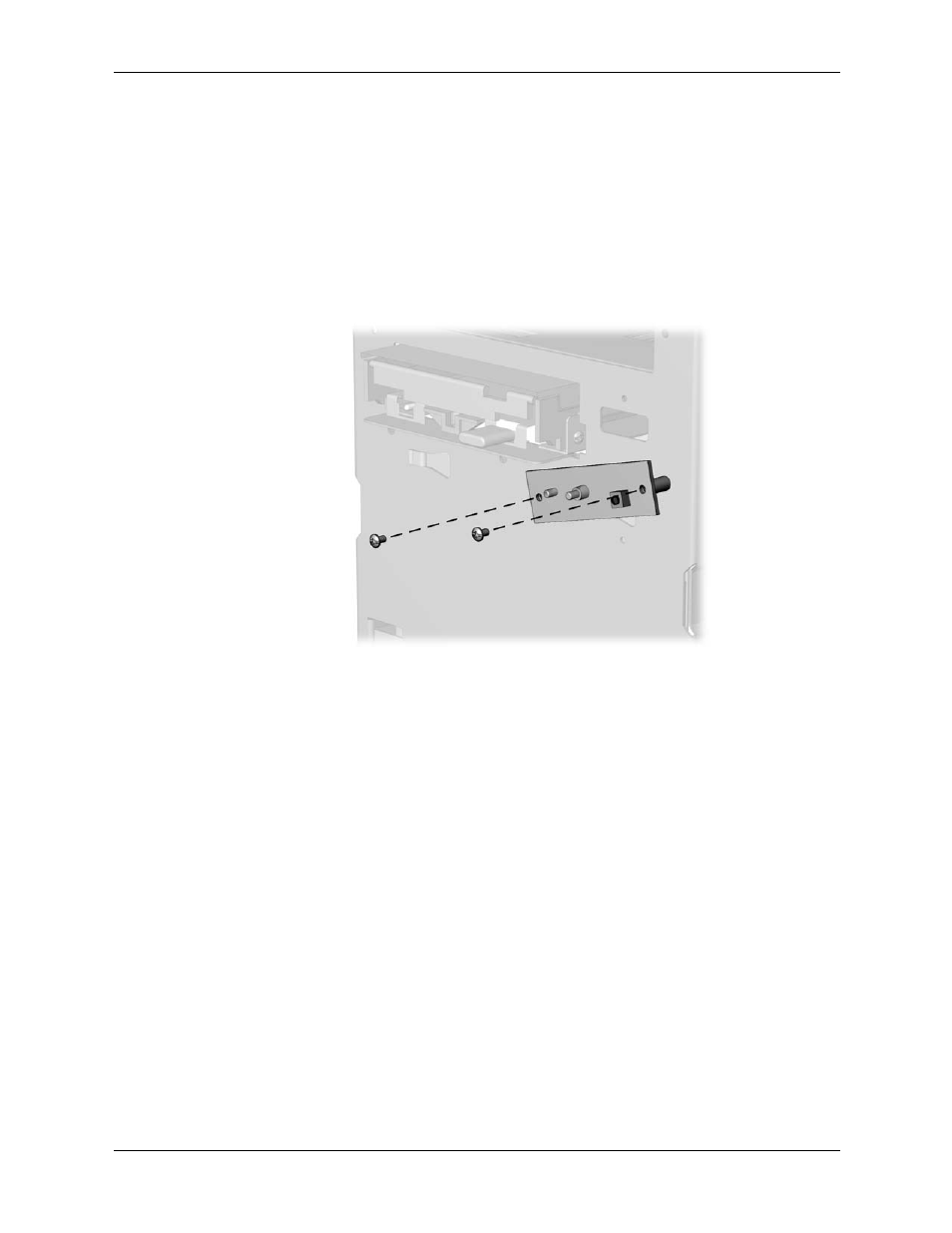

5. Remove the two screws from the button board assembly, and pull the board off the chassis.
To replace the on-button board, reverse this sequence.
