CHAPTER 2: INSTALLATION
Page 2-2 BRIM-F6 User’s Guide
2.2 Installing the FPIMs
To install an FPIM into the BRIM-F6:
1. Remove the screws securing the FPIM coverplate and the coverplate.
See Figure 2-1.
2. Insert the connector pins of the FPIM into the connector on the
BRIM-F6. See Figure 2-2.

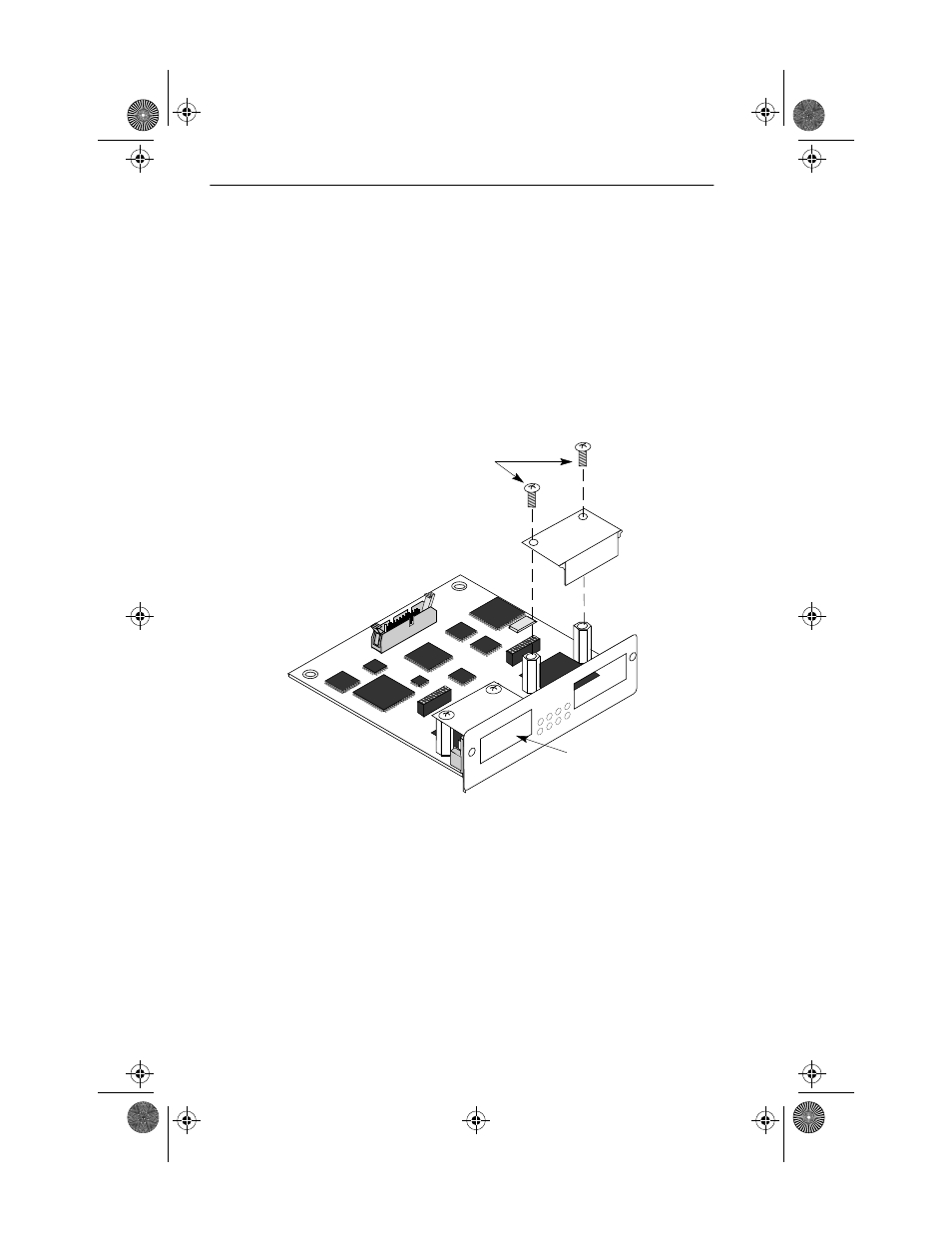

Figure 2-1. Removing the FPIM Coverplate
3. Press down firmly on the FPIM until the pins slide all the way into the
connector holes.
4. Secure the FPIM with the screws provided.
BRIM-F6
XMT
PWR
RCV
STS FPIM A
WRP
LNK
TWR
LNK
RESER
VED FOR FPIM
FPIM B
RESER
VED FOR FPIM
BRIM-F6
XMT
PWR
RCV
STS FPIM A
WRP
LNK
TWR
LNK
FPIM B
RESER
VED FOR FPIM
RESER
VED FOR FPIM
FPIM Screws
FPIM Coverplate
