BRIM-F6 User’s Guide Page 3-1
CHAPTER 3
USING LANVIEW
LANVIEW is a visual diagnostic and status monitoring system developed
by Cabletron Systems. LANVIEW LEDs (see Figure 3-1) help you
troubleshoot Bridge, Port, and Network problems. The following sections
describe BRIM-F6 LEDs.

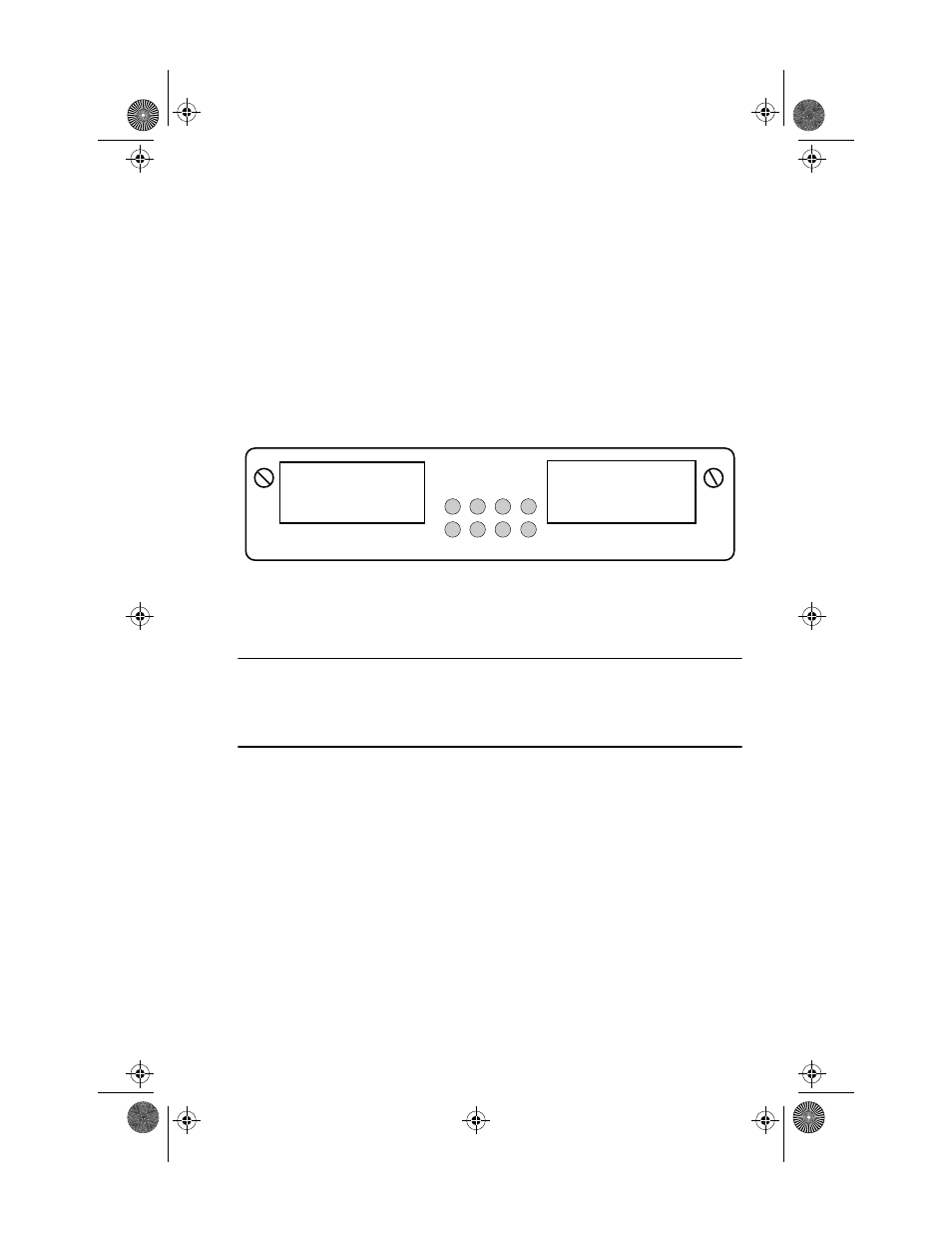

Figure 3-1. BRIM-F6 LANVIEW LEDs
PWR (Power)
When ON, this Green LED indicates that power is supplied to the BRIM.
STS (Status)
This multi-state LED can indicate the following:
Green The station attached to the port is
connected to the network.
Amber The BRIM is in standby mode; the BRIM is
not bridging traffic.
Red or
Flashing Red
The port or the entire BRIM has failed, or
the FDDI ring is not operational.
LED off The port has no valid connector attached.
FPIM B
BRIM-F6
XMT PWR RCV STS
FPIM A
WRP LNK TWR LNK
