CHAPTER 2:
INSTALLATION
Page 2-6
BRIM-F6 User’s Guide
To install the BRIM-F6 ribbon cable:
1. Insert one ribbon cable connector into the ribbon cable jack on the
BRIM. (See Figure 2-4.)

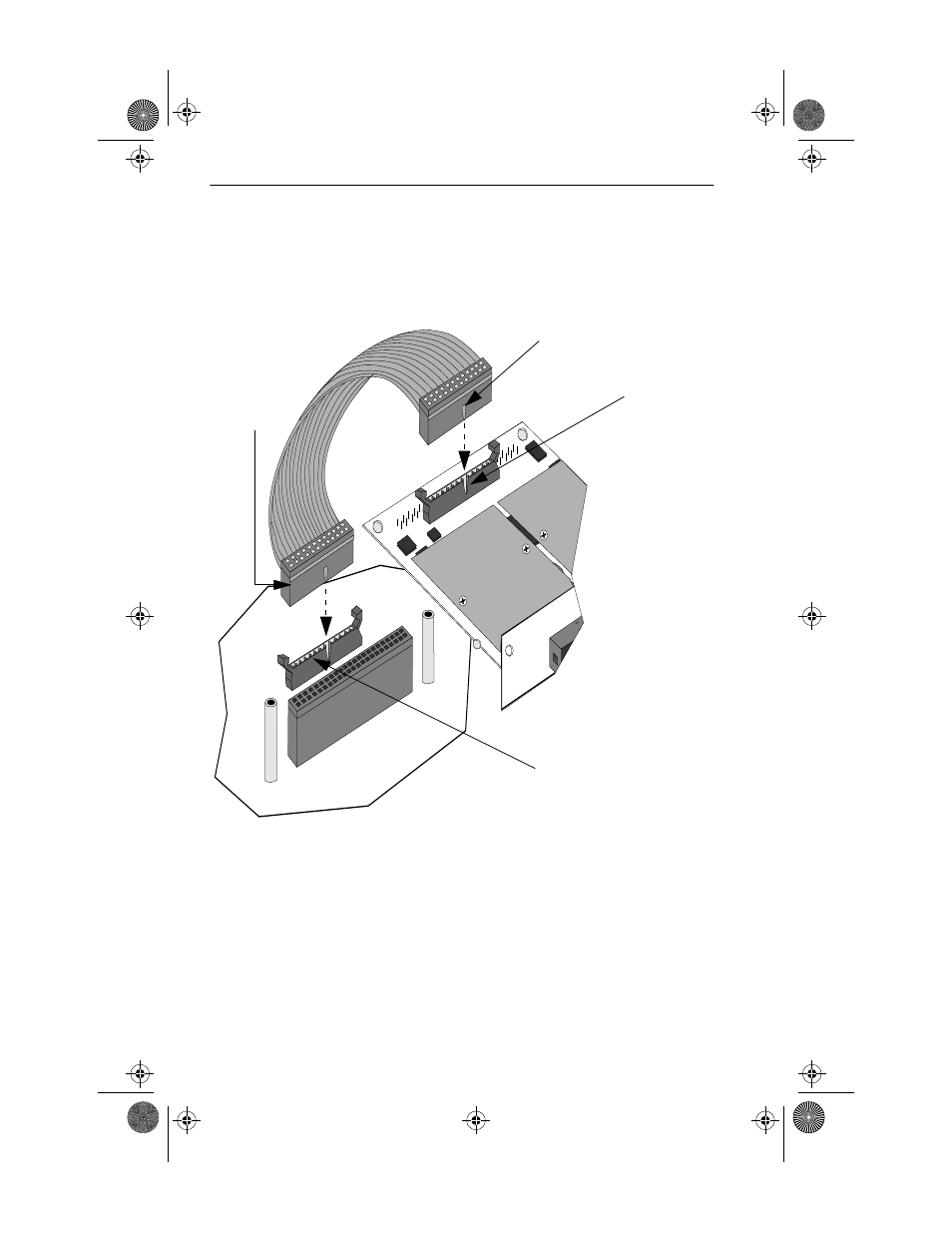

Figure 2-4. Installing the BRIM-F6 Ribbon Cable
Caution:
The ribbon cable connector only fits into the ribbon cable jack
one way. Fit the tab on the connector into the groove in the jack for correct
cable orientation.
2. Press down on the connector until the clips on the jack snap into a
vertical locked position.
WRP
TWR
RCV
XMT
STS
Tab
Groove
Ribbon
Cable
Connector
Ribbon
Cable
Jack
BRIM-F Book Page 6 Monday, January 29, 1996 9:26 AM
