BL-ER-P Ethernet Radio Unit for Pedestal
Installation Guide
1-866-294-5847
Rev 8.19.2014
www.baselinesystems.com

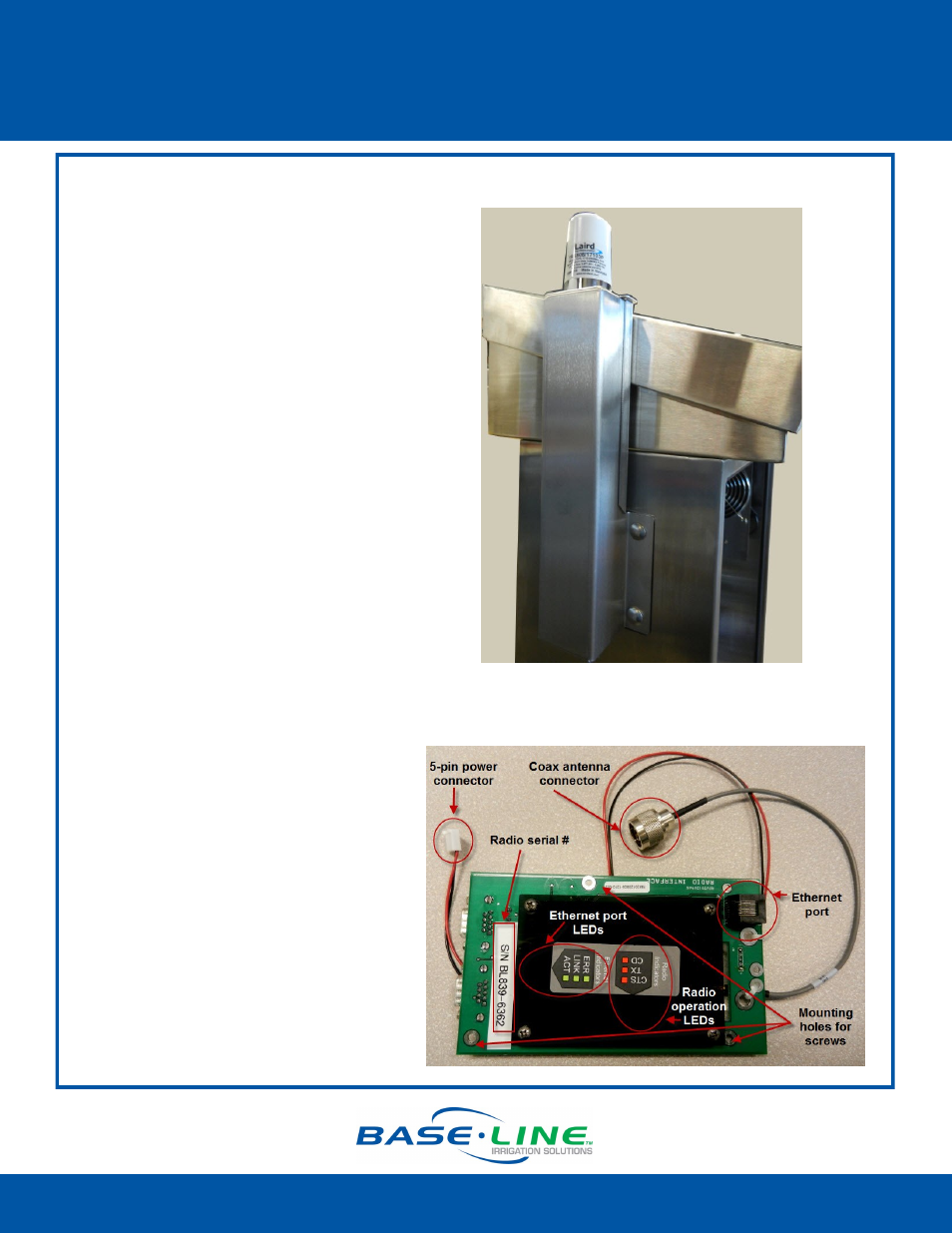

Attach the Antenna Riser to the Pedestal
1. Align the holes at the bottom of the
antenna riser with the holes in the
gasket at the mounting location on
the outside left wall of the pedestal.
2. Feed the free end of the antenna
cable through the small hole that you
made in the gasket and into the
inside of the pedestal.
3. Working from the outside of the
pedestal, insert the bolts that you
removed earlier into the four holes.
4. Working from the inside of the
pedestal, thread the nuts that you
removed earlier onto the four bolts.
Tighten the nuts snugly.
1. Remove the Ethernet radio unit from
its packaging.
2. Familiarize yourself with the parts
labelled in the illustration.
Note: The illustration shows the antenna
cable attached to the radio unit. For a
pedestal installation, the antenna
cable is disconnected from the radio
unit.
Installing the Ethernet Radio Unit
Continued 
