Lantronix Wi-Fi Module Configuration Guide for Baseline Irrigation Controllers

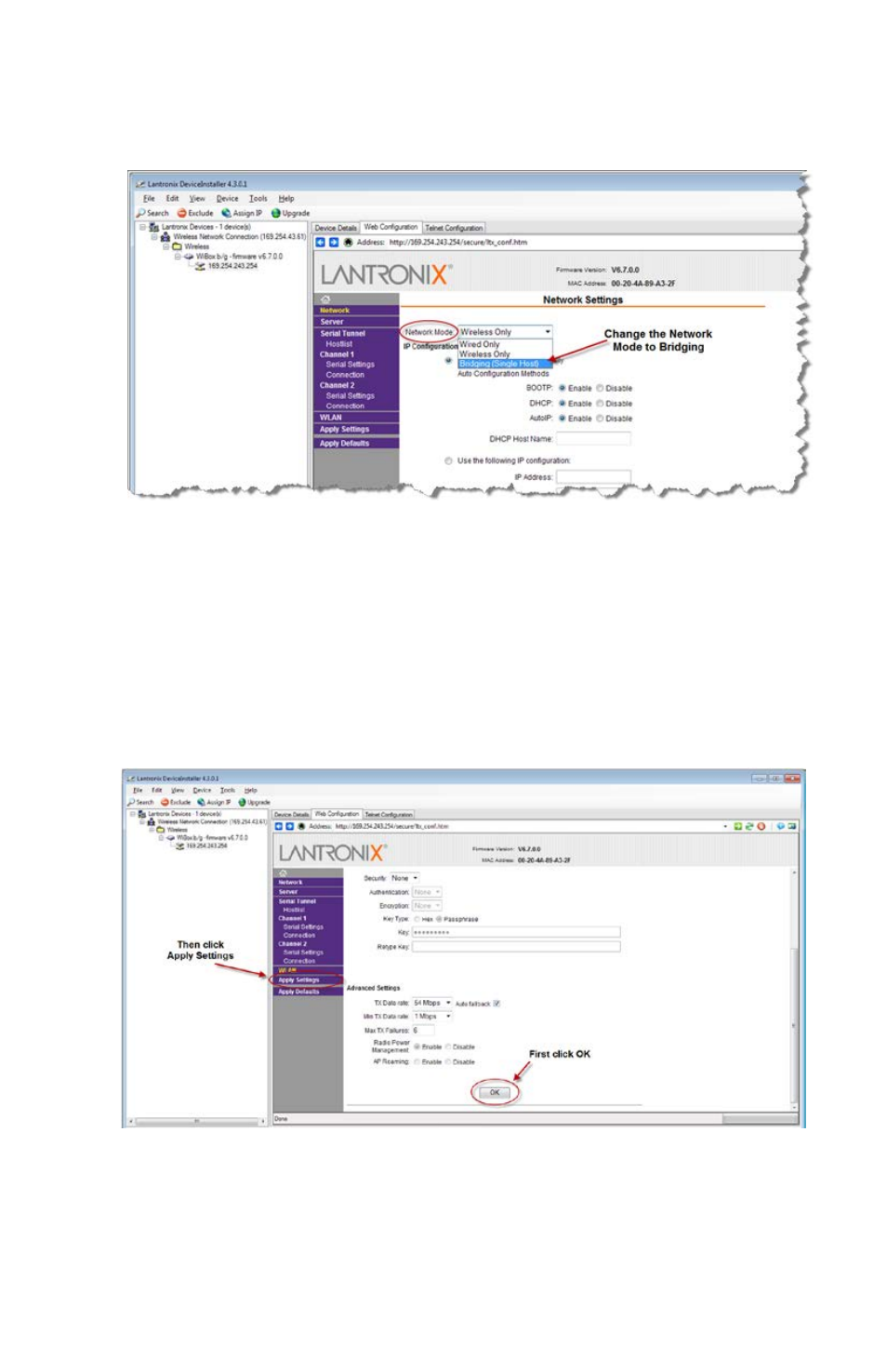

12. Click the drop-down arrow in the Network Mode field, and then click Bridging (Single Host).
13. Click the OK button at the bottom of the page.
14. Click the WLAN option in the menu on the left side of the pane. The WLAN Settings page
displays.
15. Use the details that you recorded above to complete the fields on the WLAN Settings page.
IMPORTANT! Enter the information carefully to avoid making errors, which will require a
factory reset.
16. Click the OK button at the bottom of the page, and then click Apply Settings in the menu on
the left.
17. Close the LANTRONIX DeviceInstaller application, and then disconnect the computer from the
wireless network named LTRX_IBSS.
