Step 4 - Connecting the AIS transceiver
Using the AIS transceiver accessory cable provided with this prod-
uct, route the cable from the AIS transceiver to the NSPL-400 and
connect to the AIS transceiver connector on the NSPL-400 as
shown in Figure 8. If the cable supplied is not long enough please
contact your dealer for details of suitable extension cables.
A fully approved marine AIS class B transceiver, such as the NAIS-
400, or AIS receiver should be used with the NSPL-400 and requires
a SO239 VHF antenna connector to connect to the NSPL-400 using
the supplied accessory cable.
Fig. 8 Location - AIS
AIS transceiver
VHF antenna
VHF radio
VHF radio
AIS transceiver
VHF antenna

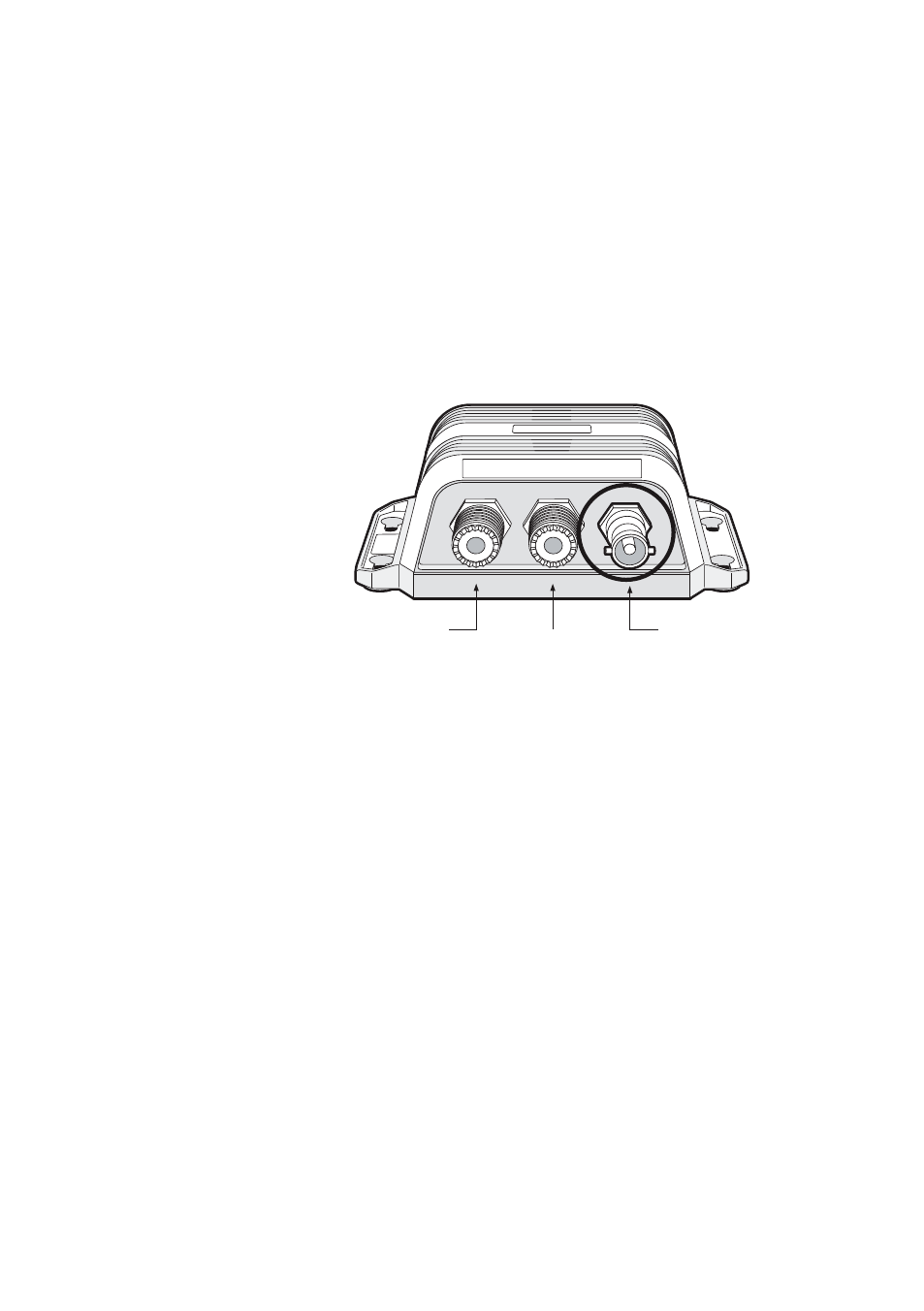

Figure 8 Position of the AIS transceiver connector
