12 |
Installation | NSPL-400 User Manual

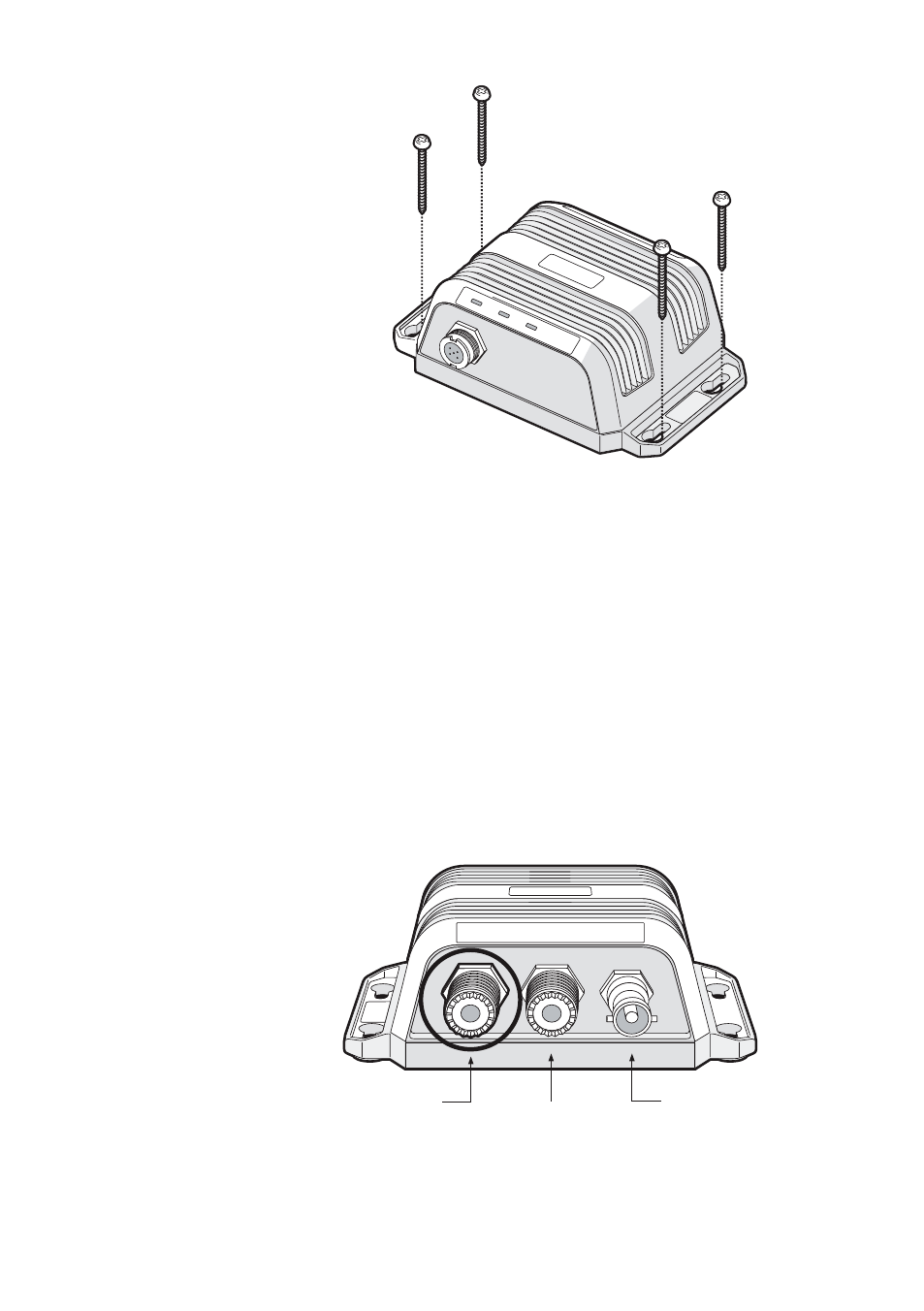

Fig. 5 Mounting
Figure 5 NSPL-400 mounting
Step 2 - Connecting the VHF antenna
Route the cable from the VHF antenna to the NSPL-400 and connect
to the VHF antenna connector on the NSPL-400 as shown in Figure
6.
A standard marine band VHF antenna or AIS antenna should be
used with the NSPL-400. The connector type on the NSPL-400 is
SO239. Your chosen VHF antenna requires a PL259 connector to
mate with this. If your VHF antenna does not use this type of con-
nector please contact your dealer for details of available adaptors.
Fig. 6 Location - VHF
AIS transceiver
VHF radio
VHF antenna
VHF radio
AIS transceiver VHF antenna
Figure 6 Position of the VHF antenna connector
