Zeus2 overview
The Zeus2 range of multifunction displays consist of rugged marine displays with built in
powerful marine processors. Display size choices are 7”, 9”, and 12” . All models come with a
built in 10 Hz high gain GPS antenna.
The ability to network over NMEA 2000 and ethernet allows access to data as well as control
of numerous optional devices that can provide radar, audio entertainment, weather and even
digital switching.
All displays can operate on 12 V or 24 V systems.
Each size display may be fl ush or bracket mounted.

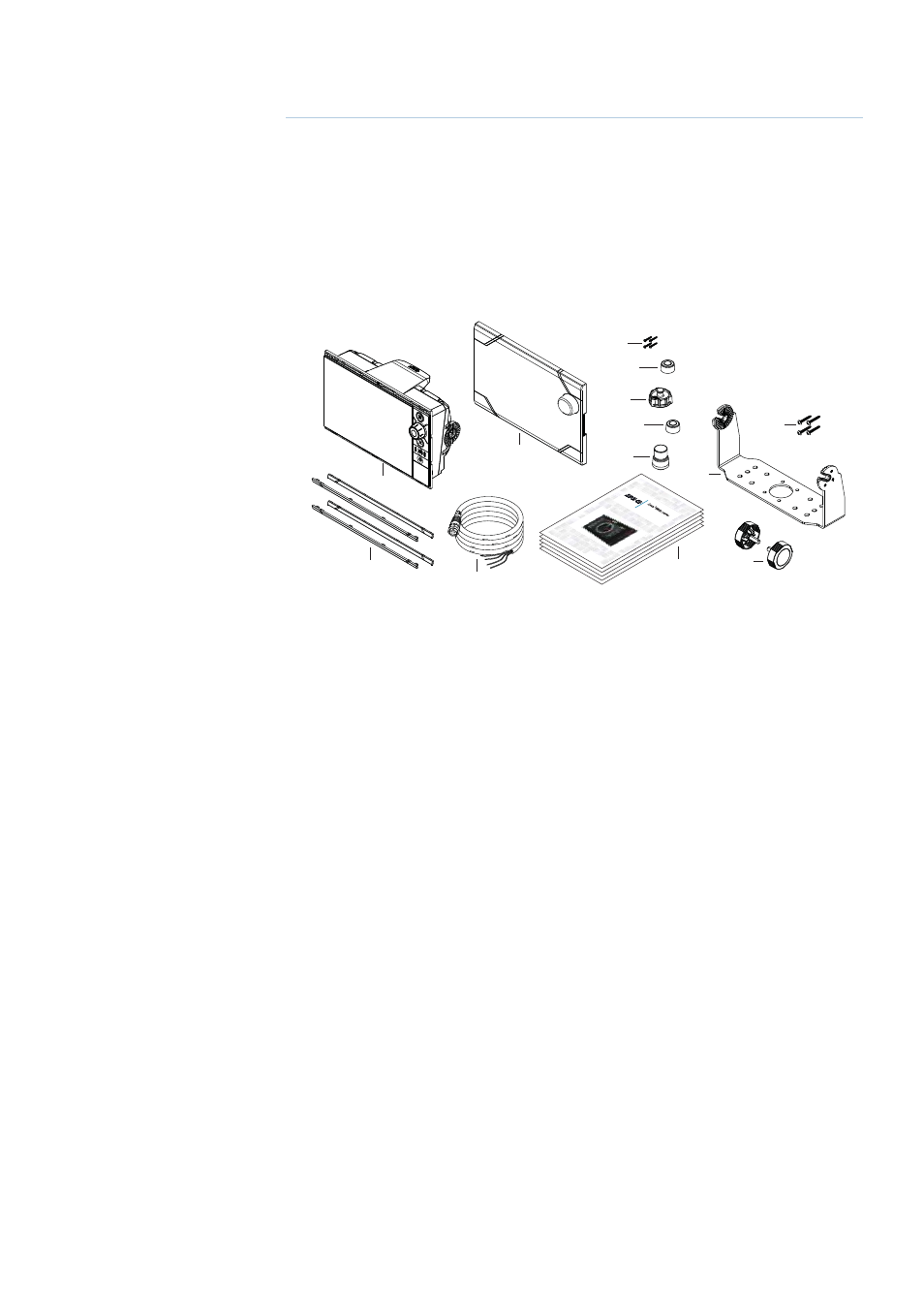

Included Items
1
3
2
11
4
12
13
5
7
8
9
10
6
