6 | Hardware installation | Zeus2 Installation Manual

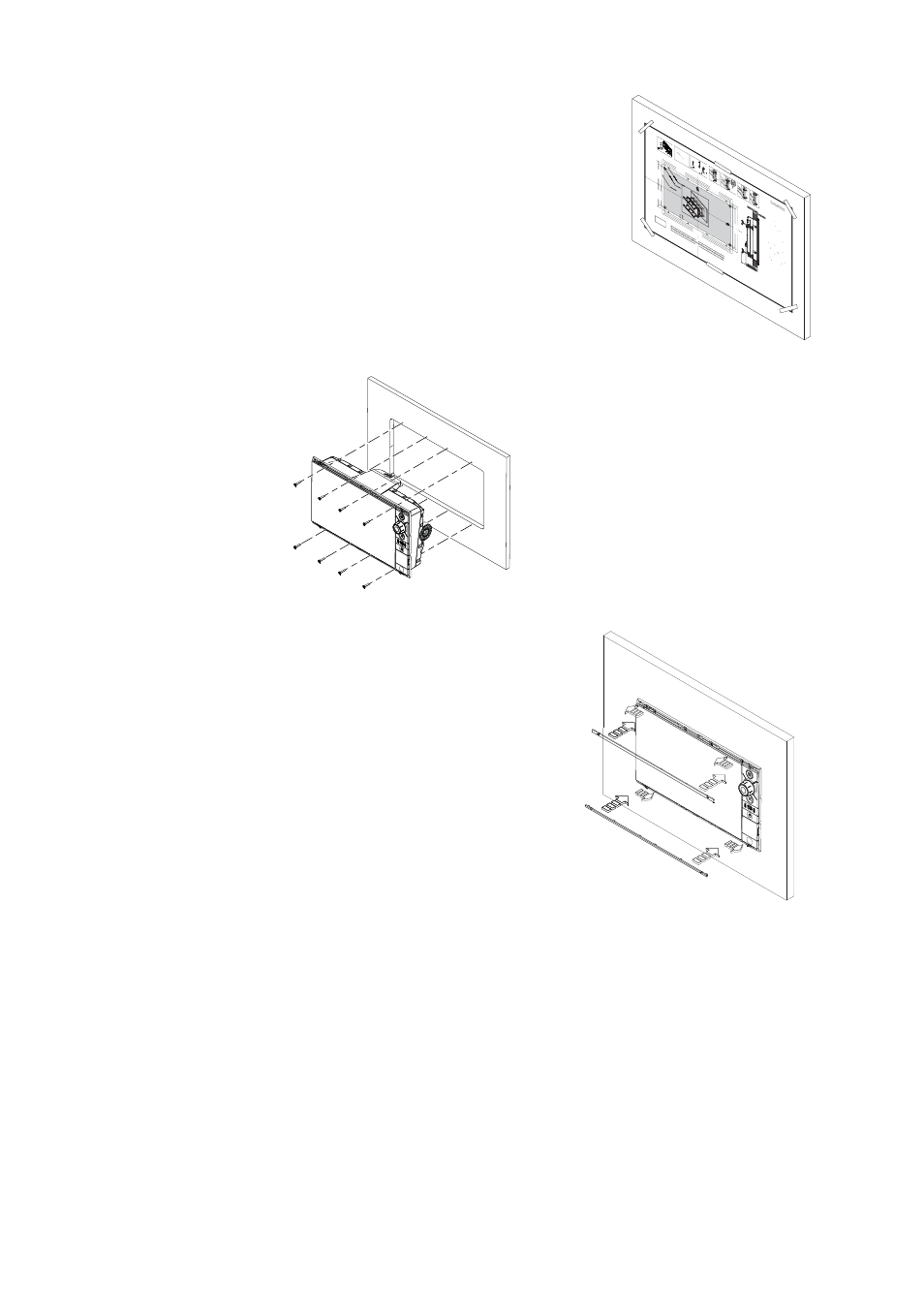

Flush mounting
Check the template for scaling accuracy, using a tape
measure or ruler against the ruler printed on the
template.
Cut away excess paper if required, and tape template
to mounting surface. Check it is correctly aligned to a
vertical or horizontal reference. Do not use a bubble
level as vessel may be listing! Adjust where required.
Drill all marked pilot holes, then using an appropriate
saw, cut through the template and mounting surface,
along the dotted line bordering the shaded area of the
template.
Check the fi t of the display, and fi le away
remaining obstructions. Secure the display
with the supplied screws. Once screws are fully
tightened, ensure there is complete contact
with the mounting surface.
Bezel Fitment and Removal
When fi tting bezels, ensure hook tabs on
back of each bezel recess in to opposing
slots on screen frame. Once fl ush with front
surface of screen, slide top bezel to the left,
and bottom bezel to the right to lock in to
place. The bezel trim have been designed
to be very low profi le, and therefore fully
conceal the locking tabs that keep them
from being accidentally disengaged from
the mounting fl ange. To release the locking
tab, it is necessary to gently lever the centre
of the bezel trim away from the mounting
fl ange. To remove the cover, simultaneously
slide it sideways; to the right for the top
bezel, and to the left for the bottom bezel.
