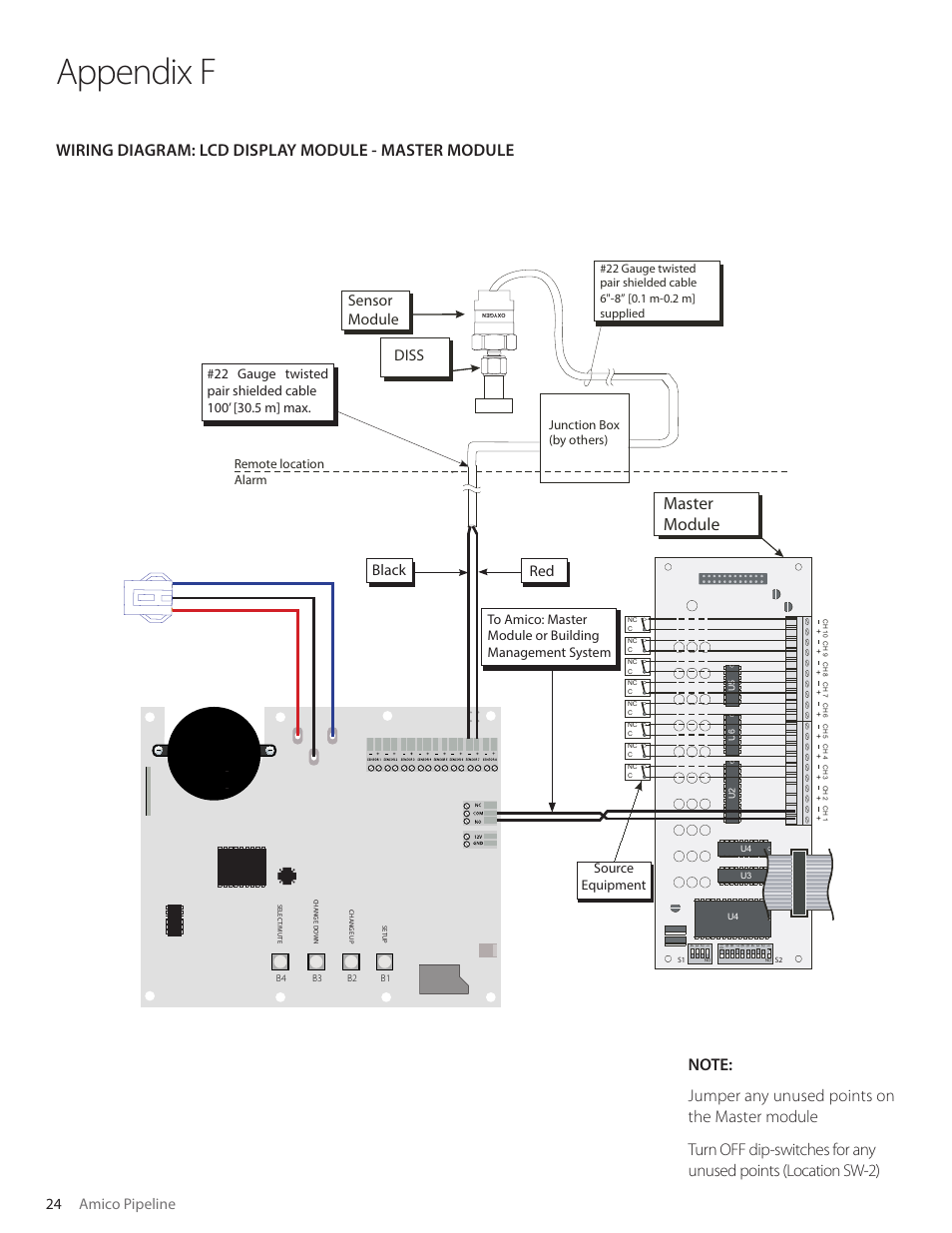

Appendix f, Wiring diagram: lcd display module - master module, Source equipment – Amico Alert-3 LCD Alarm User Manual
Page 24: 24 amico pipeline, Sensor module diss, Red black, Junction box (by others) remote location alarm
