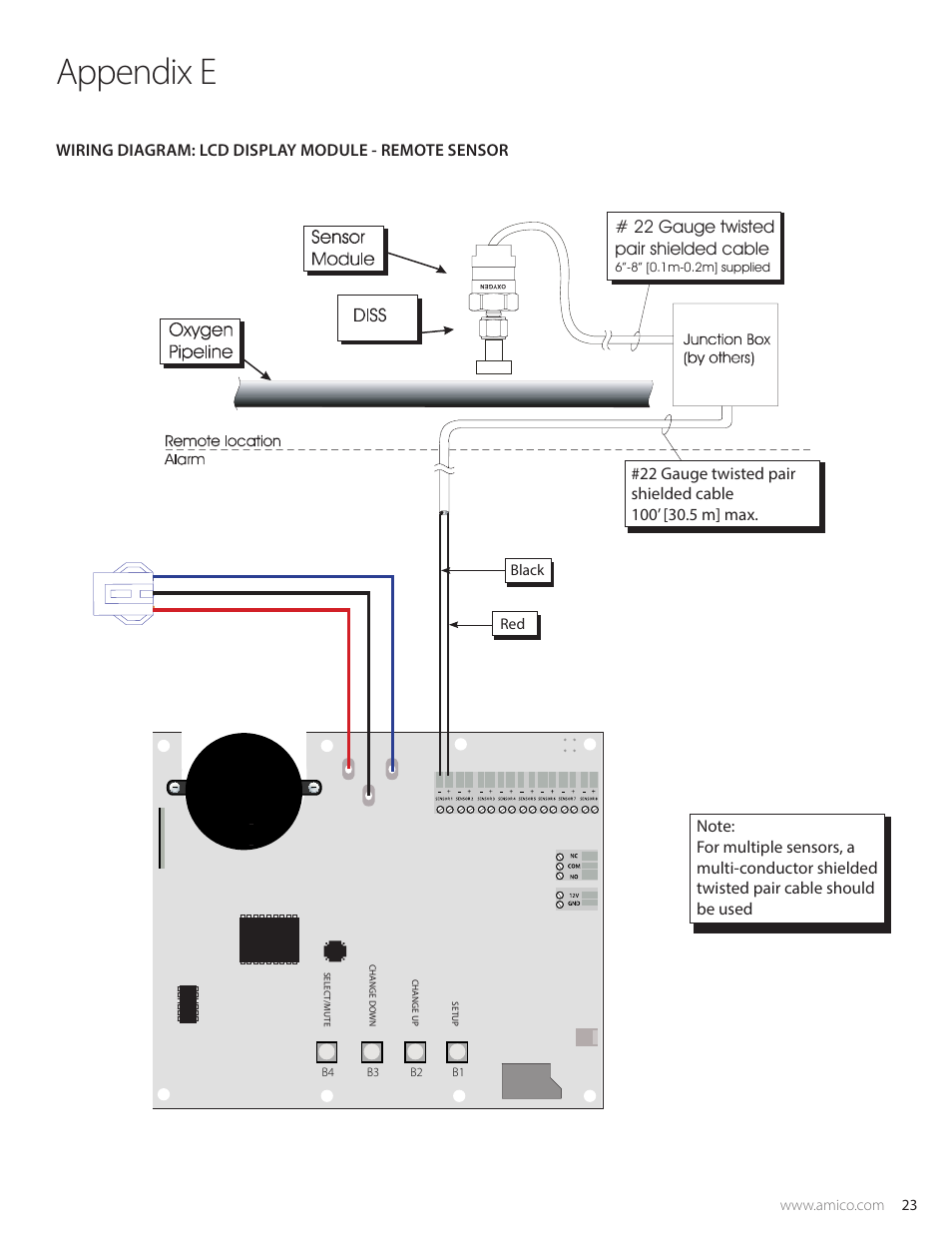

Appendix e, Wiring diagram: lcd display module - remote sensor, 22 gauge twisted pair shielded cable – Amico Alert-3 LCD Alarm User Manual
Page 23
