19 Simba TL
605-039M-ENG
2013-02-27
4.4 Levelling Discs
The Simba TL features a row of covering
discs to level behind the tines. They are
mounted onto an adjustable beam. Rubber
torsion rods inside the mounting provide
shock resistance / stone protection in work.
The levelling disc beams slide in and out for
work / road transport.

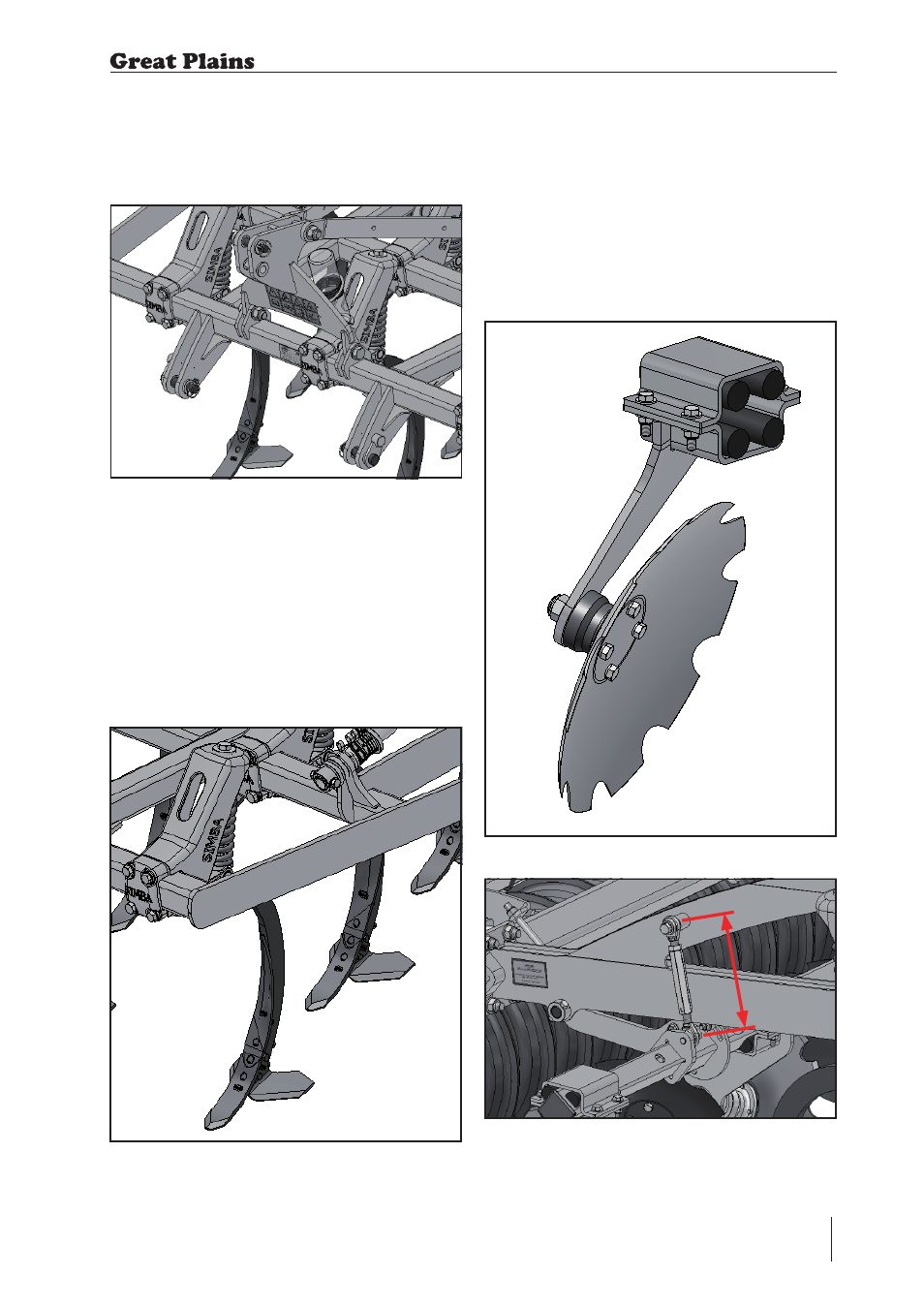

Fig. 4.02: 3 Point Linkage
4.2 3 Point Linkage
The Simba TL is fitted with a standard Ca-
tegory 3 linkage at the front of the machine.
Fig. 4.04: Levelling Discs
4.3 Tines
The tines on the Simba TL are arranged
over 3 rows to give lower draft requirements
and the ability to work progressively deeper.
The tines are spaced at 290mm. Each tine
is protected using a sprung unit allowing the
tine to trip up and over obstacles.
Fig. 4.03: Tines
4. Adjustment / Operation
Fig. 4.05: Levelling Discs: Suggested Start Setting
270mm
