4/27/2005 151-120M
Great Plains Mfg., Inc.
5 Installation Instructions

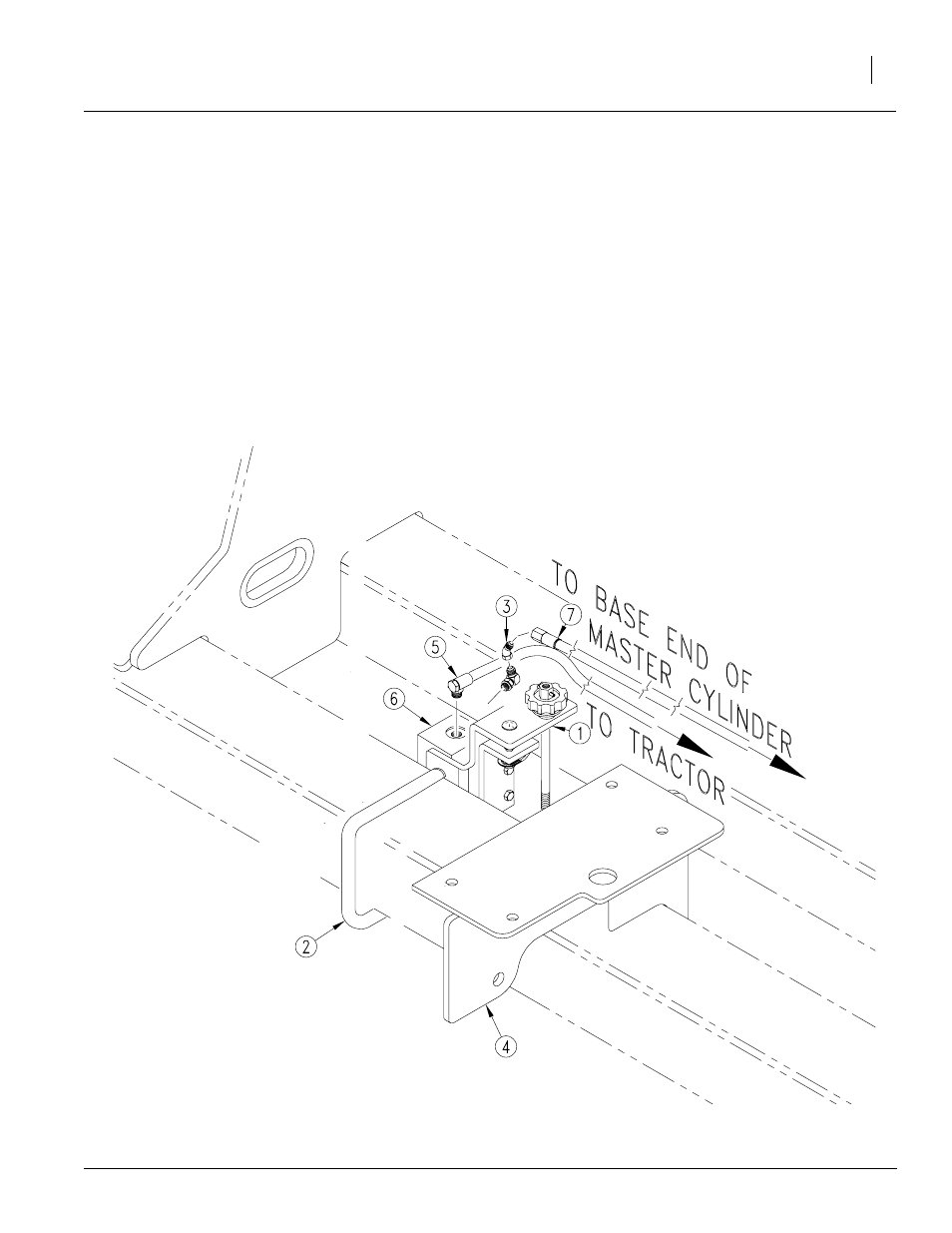

Refer to Figure 8
11. Attach valve mount (1) on tubing on right-hand
side of drill next to native grass gearbox mount
(4) using the U-bolt (2) from step 5.
12. Connect hose (5) leading to tractor to valve (6).
13. Add elbow fitting (3) to new hose (7) provided in
kit. Connect to valve (6) and master cylinder.
Where necessary, tie down with cable ties.
Figure 8 23148
