Installation Instructions

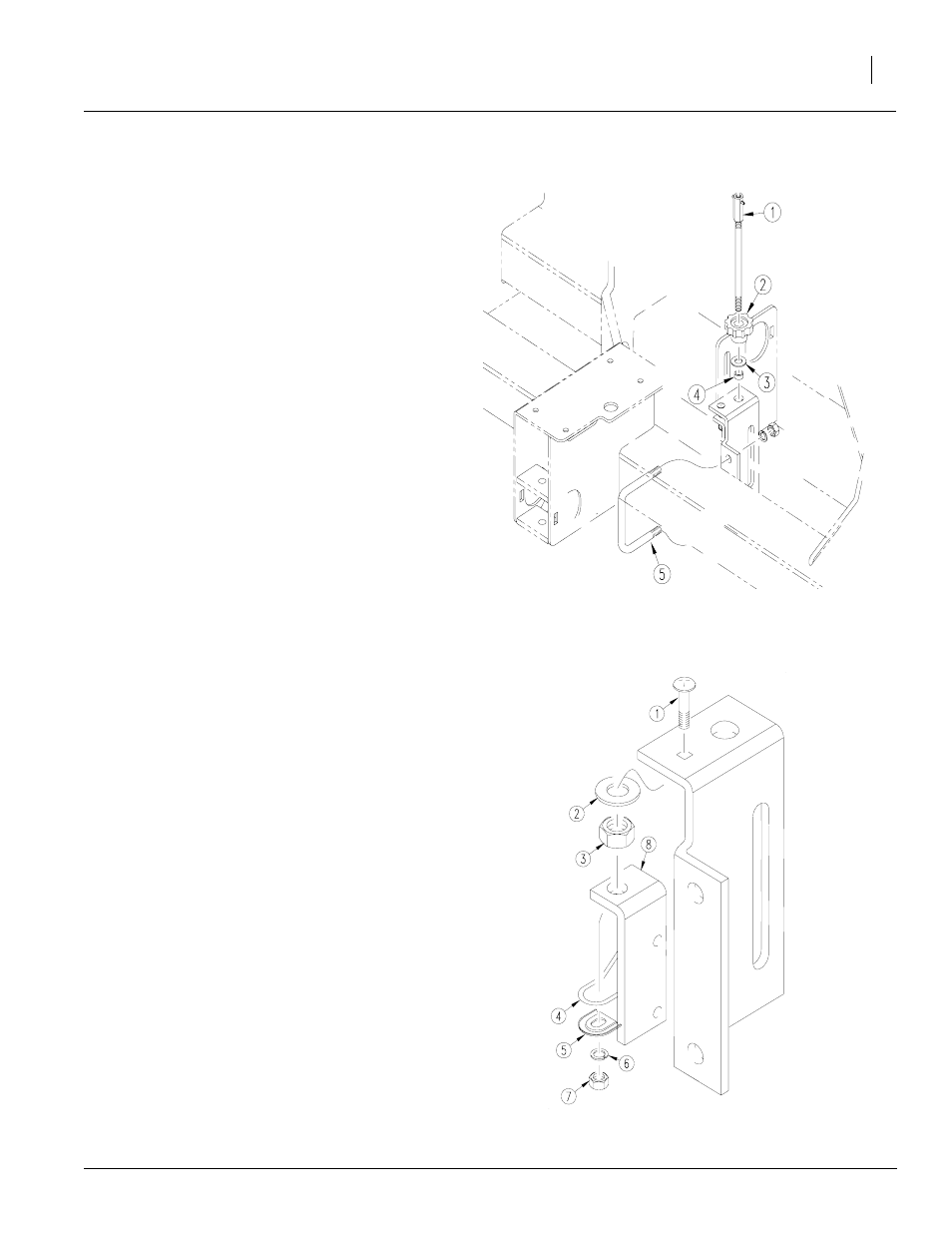

Refer to Figure 4

5.

Unscrew screw adjustment rod (1) from knob (2)
and remove knob (2), washer (3), and spacer tube
(4) from top of depth stop valve mount. Keep all
pieces for reuse.

6.

Remove U-bolt (5) holding depth stop valve
mount in place. Keep for reuse.

Figure 4

Figure 5

23146

23147

Refer to Figure 5

7.

Unscrew 1/4-20 x 3/4" bolt (1) from top of
mount removing washer (2), nut hex (3),
depth adjustment bracket (8), tension spring
retainer (4), screw spring adjustment (5),
washer (6), and nut hex (7). Discard depth
stop valve mount and depth adjustment
bracket. Keep all other pieces for reuse.
