Great Plains Disk Harrow Field Update Disk Leveler User Manual
Page 14
Installation Instructions
Great Plains Mfg., Inc.
SeriesI 3323DH-4336DH Leveler Update 557-330M
2/05/2008
14

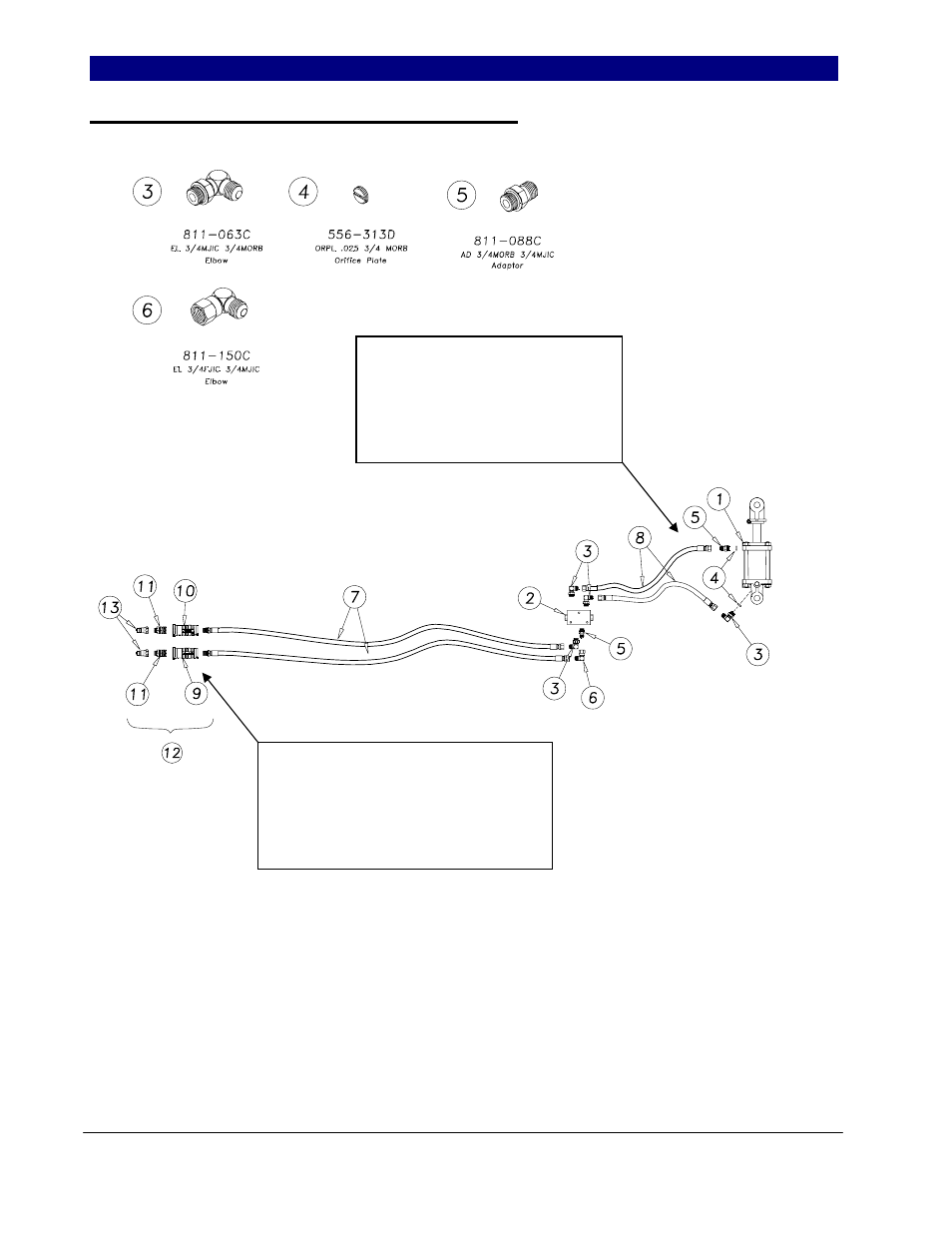

Hydraulic Level Layout - Update, optional
01119
Level Update Changes:
Install New 4x3 Cylinder (1), longer
hoses (8) and new adaptor fitting (5).
Reuse orifice restrictors (4) from old
cylinder.
Level Update Changes:
Check Hydra Grip Handles. Red extend
handle (9) should be routed to base end of
cylinder (1) as shown. Red retract (10)
routed to rod end of cylinder.
