Install New PW Mount
Refer to Figure 4
7.
With press or dead blow hammer insert one bushing
in hole on each side of the press wheel arm .
Install one pivot spacer into each bushing.
890-598C BUSHING 3/4OD X 5/8ID X 1/2
890-524C 20 SER PW ARM PIVOT SPACER
8. Select one new press wheel mount or :
Note: The press wheel assemblies can have either
all long or all short mounts or a combination of the
two.
199-148H 25P LONG PW MOUNT UPDATE
199-149H 25P MID PW MOUNT UPDATE
9. Slide new press wheel mount or into press
wheel arm . Insert 2 new carriage bolts in press
wheel mount (make sure head is on inside of pw
mount with end facing to the outside).
802-030C RHSNB 7/16-14X1 3/4 GR5
Select one each and install on end of each bolt:
804-041C WASHER FLAT 7/16 SAE PLT
804-014C WASHER LOCK 7/16 PLT
803-229C NUT HEX FLANGE LOC 7/16-14
10. Attach the spring on the underside of the press
wheel arm and insert top ring of spring between
the 2 spring alignment bushings .
Attach the spring to the lower holes of the mount
with the clevis pin
and spacer bushings .
Secure with cotter pin .
199-113D SPRING ALIGNMENT BUSHING
805-417C PIN CLEVIS 5/8 X 3 49/64 USBL
805-109C PIN COTTER 1/8 X 1 1/4 PLT
11. Reinstall press wheel assembly to opener body
reusing hardware from prior disassembling.
802-091C HHCS 1/2-13X1 1/2 GR5
802-258C HHCS 1/2-13X1 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
405-032D 1X12 PW ADJUSTER

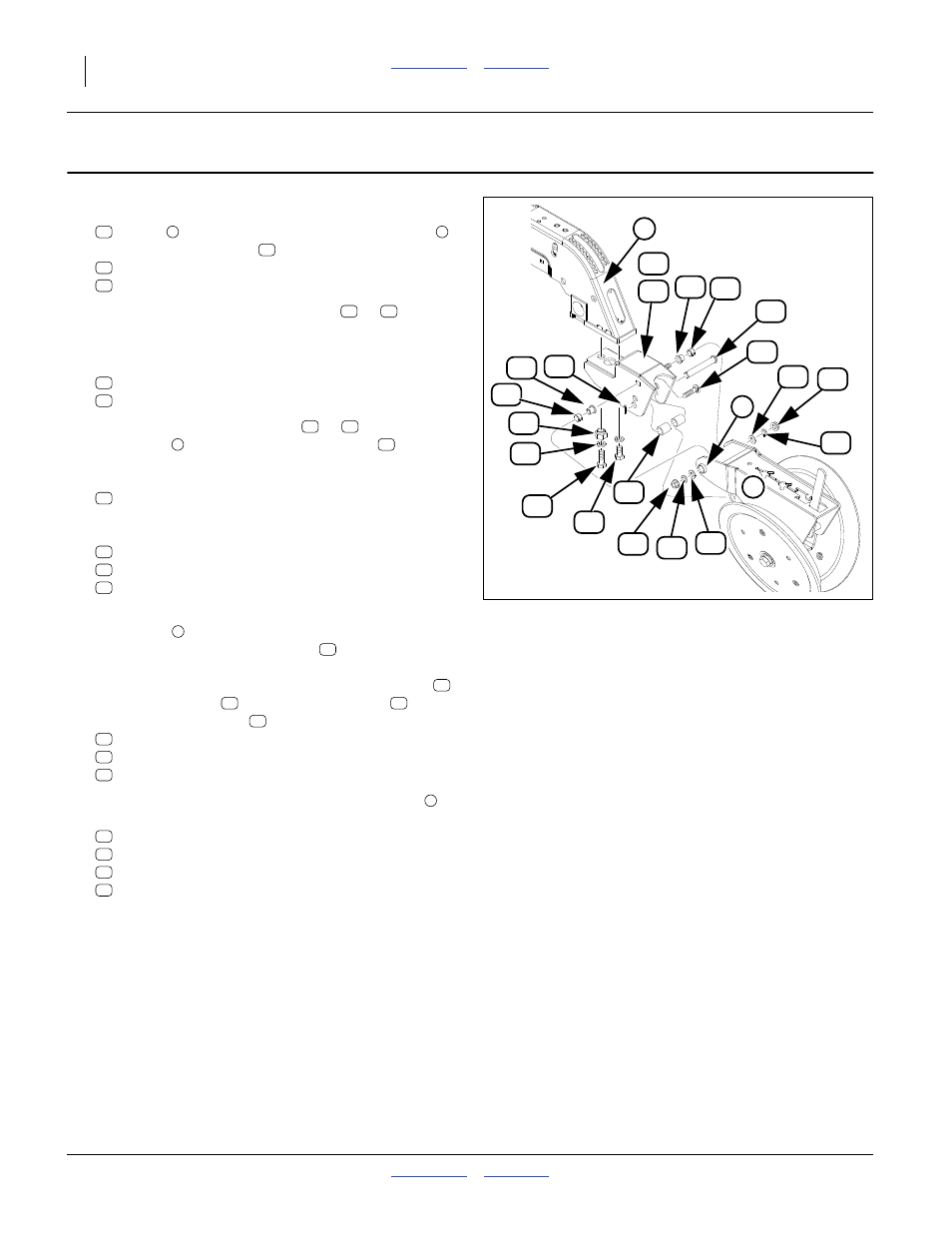

Figure 4
Install New PW Mount Kit
31494
14
20
12
16 18
16 17
22
15
17
61
55
56
57
18
21 22
1
19
3
21
13
2
22 3 1
21
22
21
13 14
13
14
13 14
1 15
15
18
17
16
1
12
13
20 12
19
12
20
19
2
56
57
61
55
