Remove Old PW Mount
Refer to Figure 3
With openers slightly off ground spring tension is
released.
4. To detach press wheel assembly from opener
body
remove two vertical bolts, washers, and nuts
from underside of press wheel mount:
802-091C HHCS 1/2-13X1 1/2 GR5
802-258C HHCS 1/2-13X1 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
405-032D 1X12 PW ADJUSTER
Save hardware for reuse.
5. Detach old press wheel mount and/or from
press wheel arm by removing bolt, bushings, pin
clevis and other hardware.
802-616C HHCS 3/8-16X5 1/2 GR5
804-011C WASHER FLAT 3/8 USS PLT
803-209C NUT FLANGE LOCK 3/8-16 PLT
199-106D PW ANCHOR MOUNT TUBE
199-113D SPRING ALIGNMENT BUSHING
805-417C PIN CLEVIS 5/8 X 3 49/64 USBL
805-109C PIN COTTER 1/8 X 1 1/4 PLT
817-083C PW ARM PIVOT BUSHING
This hardware is not reused
6. Discard press wheel mount (it will not be reused):
Note: The opener assemblies can have all long or all
short mounts or a combination of the two.
199-108H 25P LONG PW MOUNT
199-109H 25P MID PW MOUNT

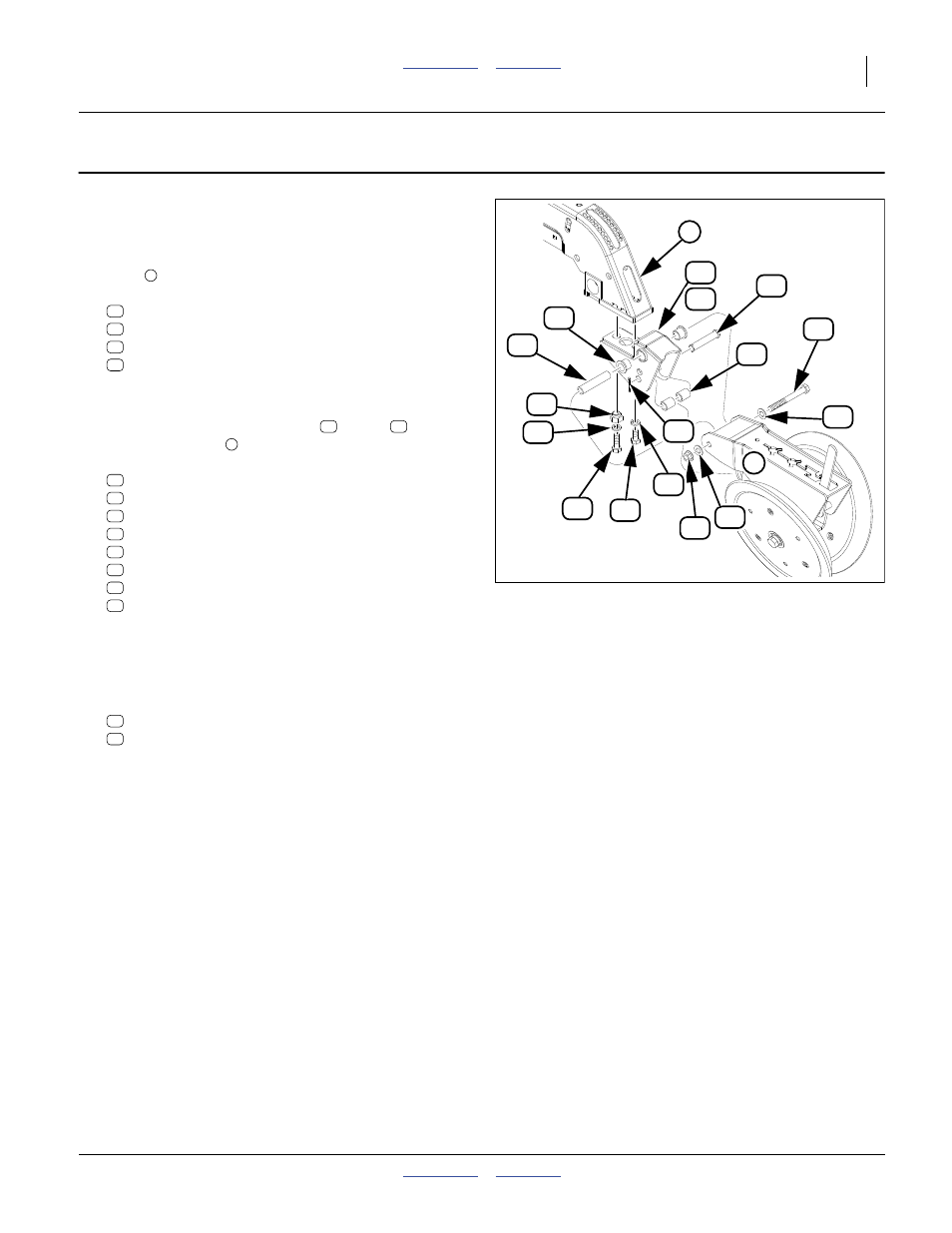

Figure 3
Remove PW Mount
