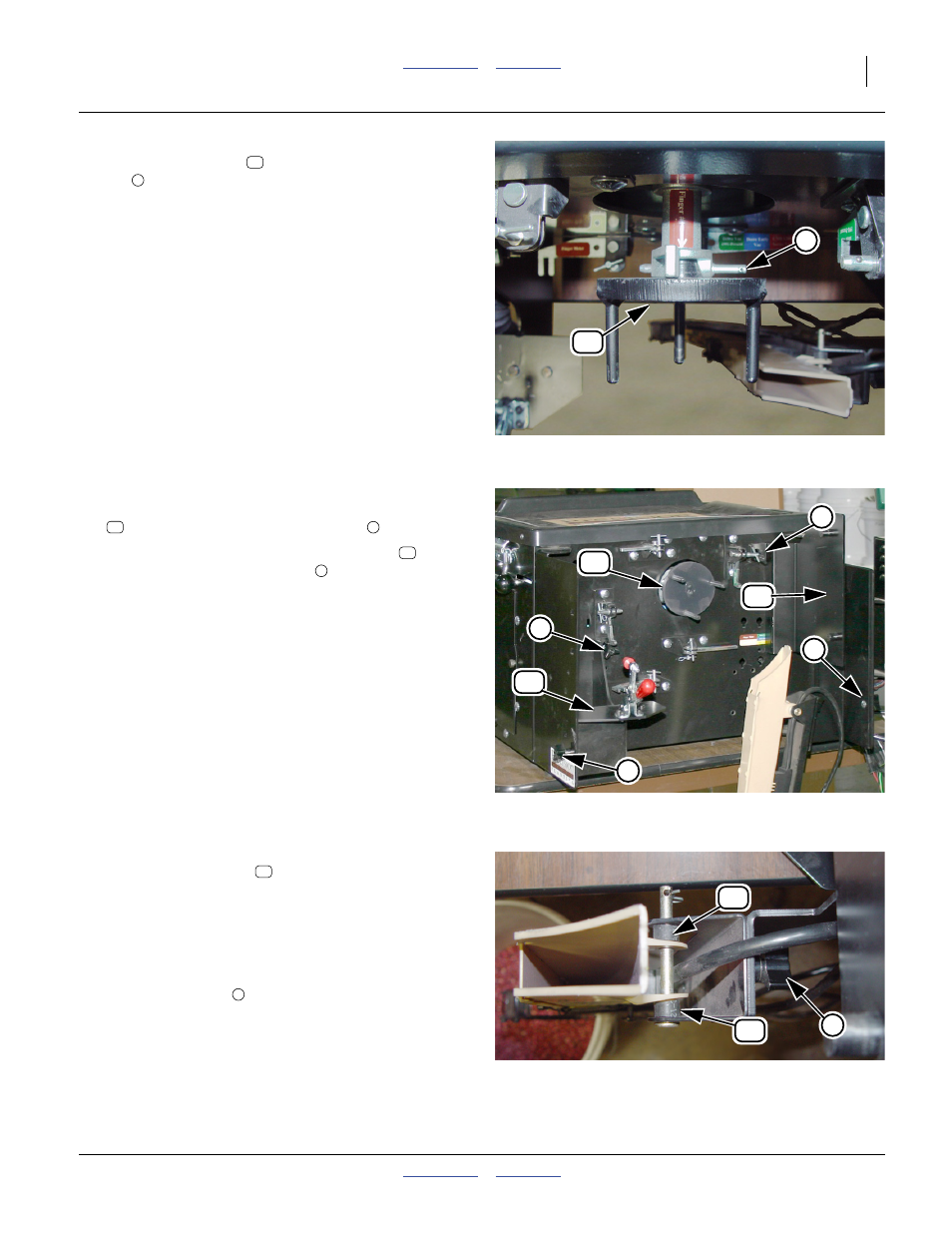

Refer to Figure 4
3.
Mount the drive hub and secure with existing long
pin (same pin used for the White meter drive).
Refer to Figure 5
4.
Mount the LH Air-Pro
®
meter mount clamp assembly
and secure with existing hardware .
5. Mount the RH Air-Pro
®
MeterMax
®
mount and
secure with existing hardware .
Refer to Figure 6
6.
Cut two
1 ⁄
4
in spacers from the pressure sensing
1 ⁄
4
in hose supplied with the Air-Pro
®
kit.
7. Use the two spacers to center the Air-Pro
®
seed
tube in the seed tube bracket.
8. Position seed tube and holder in its proper location
on the RH Air-Pro
®
meter mount and secure with
existing hardware .
Null4:
Figure 4
Drive Hub and Long Pin
31062
14
6
14
6
Null4:
Figure 5
Test Stand Showing Brackets & Drive
31061
16
15
8
7
7
8
14
16 8
15
7
Null4:
Figure 6
Seed Tube Centered in Bracket
31063
23
23
9
23
9
