Page 15
Great Plains Manufacturing, Inc.
Assembly
13
2012-08-17
167-088M
Route Auger Hoses
Refer to Figure 8
Two hydraulic hoses connect the valve
on the auger
body to the diverter
on the cart tongue. After installing
the auger, secure the hoses to the auger swing arm to
prevent hose damage.
27. Loosen but do not remove the bolts holding the
5
⁄
16
inch hose clips on the swing arm.
28. Route hoses over swing arm as shown. Use the
hose clips to secure hoses. Allow enough hose slack
between clips for auger arm to fold and unfold. See
figure below for approximate lengths.
29. Swing the auger as if loading and unloading the cart.
(Refer to Loading Material, “Operating Instructions”
in the operator’s manual.) Check that hoses do not
bind. Increase hose slack between clips if necessary.
30. When satisfied with hose slack, snug clips over
hoses. Do not overtighten clips or hose damage may
result.
High Pressure Fluid Hazard:
Escaping fluid under pressure can penetrate the skin causing
serious injury. Check all hydraulic lines and fittings before
applying pressure.Use paper or cardboard, NOT BODY
PARTS, to check for suspected leaks. Wear protective gloves
and safety glasses or goggles when working with hydraulic
systems. If an accident occurs, see a doctor immediately.

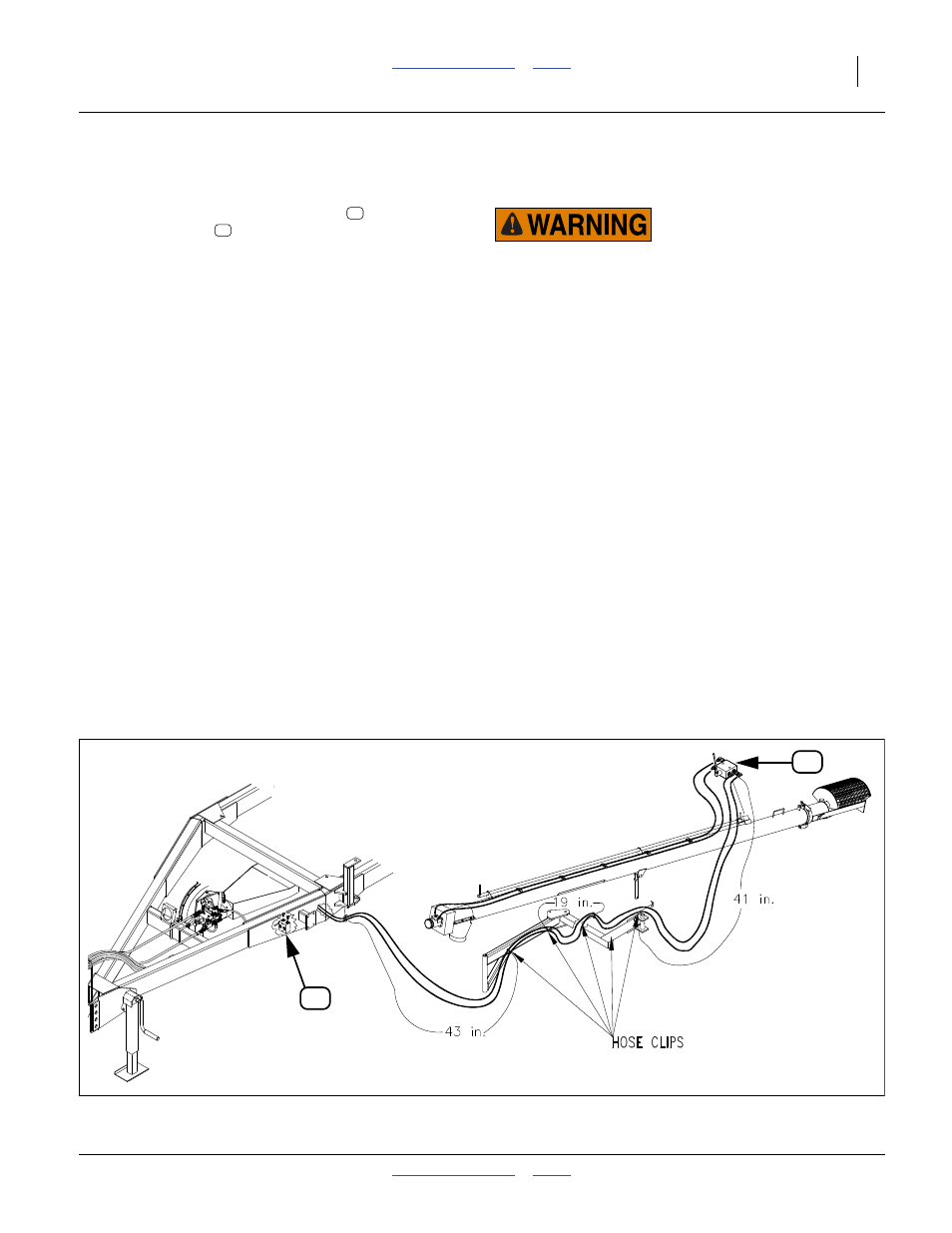

Figure 8
Hydraulic Hose Routings
16208
17
18
(109 cm)
(48 cm)
(104 cm)
17
18
