Remove Cart From Truck
Crushing Hazard:
You may be severely injured or killed by the cart if it falls.
Secure cart to lifting equipment so it cannot fall. Do not walk
or place any body part under the raised sections of the cart.
Always support the cart with jack stands or blocks before
working on the cart when raised off the ground.
Lift Failure Hazard:
Obey all safety instructions from lifting equipment
manufacturer. Be sure shipping stands are securely attached
prior to lifting. Be sure lifting equipment has enough capacity
to lift cart.
10. Use the forklift or hoist to move the cart from the
truck to the center of the assembly area.
11. Use 4-ton jack to raise frame so rear axle is high
enough to install wheels.
12. Bolt wheels to hubs and tighten as specified, see
“Torque Values Chart” on page 17.
Wheel Damage Risk:
Wheels must be installed with the center dish in the correct
position.
Refer to Figure 2
13. Bolt wheels with the edge of the center dish in
toward the hub (otherwise, wheels will be positioned
too wide).
14. Lower cart onto wheels. Inflate tires to pressure
recommended, see “Tire Inflation Chart” on
page 17.
15. Remove cart jack from storage stob on inside of left
tongue rail. Block tires securely and raise cart
tongue with forklift or jack. Place cart jack on stob
near cart hitch and lower jack to support cart.

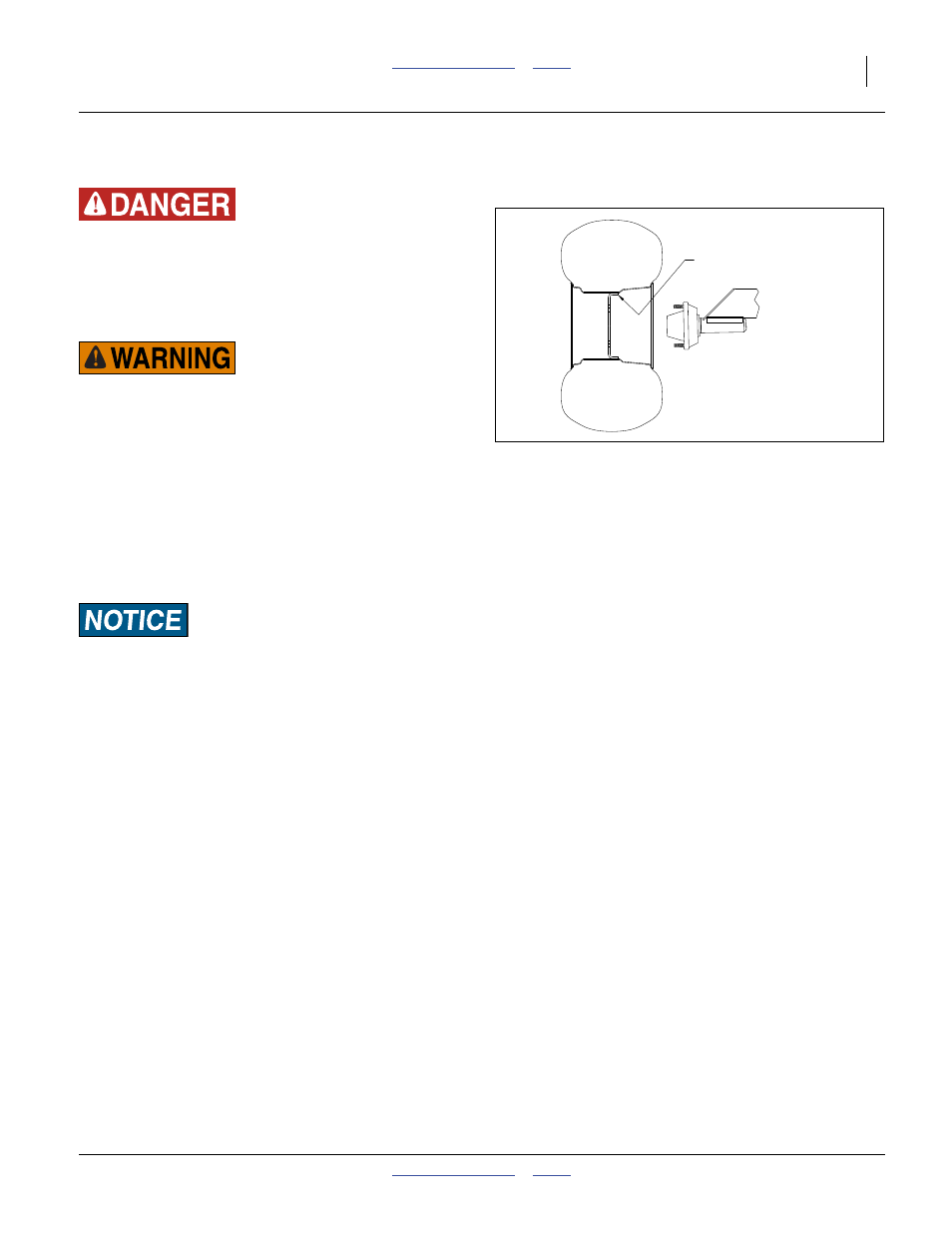

Figure 2
Cart Wheel Installation
16199
EDGE OF DISH IN
