Install Upper Ladders

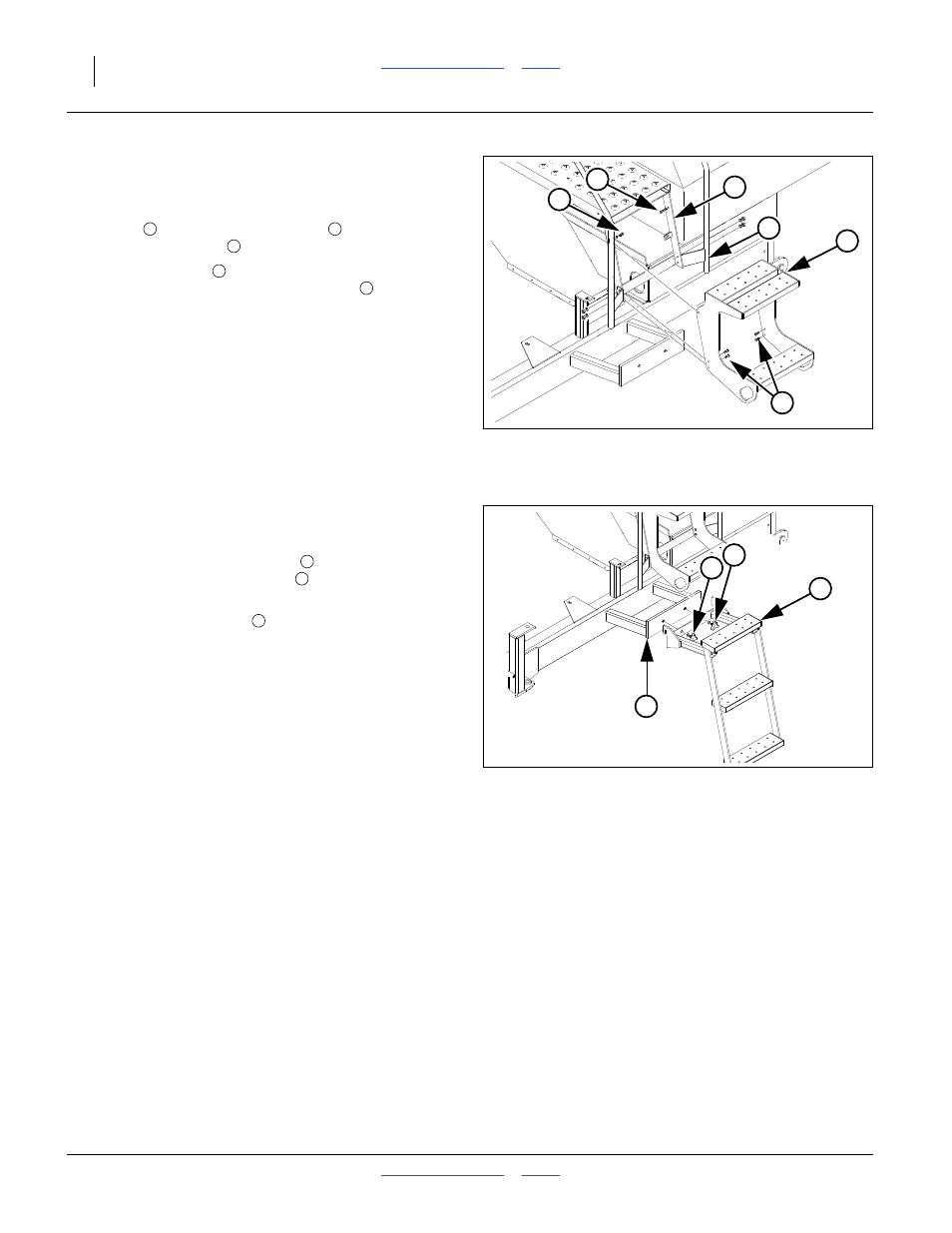

Refer to Figure 3
16. Starting on the left side of cart, bolt the upper
ladder to the mounting bracket with two
5 ⁄
16
× 3 ⁄
4
inch bolts and lock washers as shown.
17. Bolt the handrail , mounting bracket and ladder
together with four
5 ⁄
16
× 1 1 ⁄
4
inch bolts , lock
washers and nuts as shown.
18. Repeat step 16 and step 17 on the right side of the
cart.
Install Lower Ladders
Refer to Figure 4
19. Unscrew the two black knobs
from the
lower-ladder support bracket on the left side of the
cart.
20. Hang the lower ladder over the mounting bracket.
21. Align holes in ladder and bracket. Screw the black
knobs into place.
22. Repeat step 19 through step 21 for lower ladder on
right side of cart.
Figure 3
Upper Ladder
16225
1
2
4
3
3
5
1 2
3
4
5
Figure 4
Lower Ladder Installation
16435
6
7
8
6 6
7
8
