Figure 17
Extensions
Figure 18
Harrow Extension and chain
Folding the Drill
!
WARNING!
Pinch Point and Crushing Hazard. To prevent serious injury or
death:

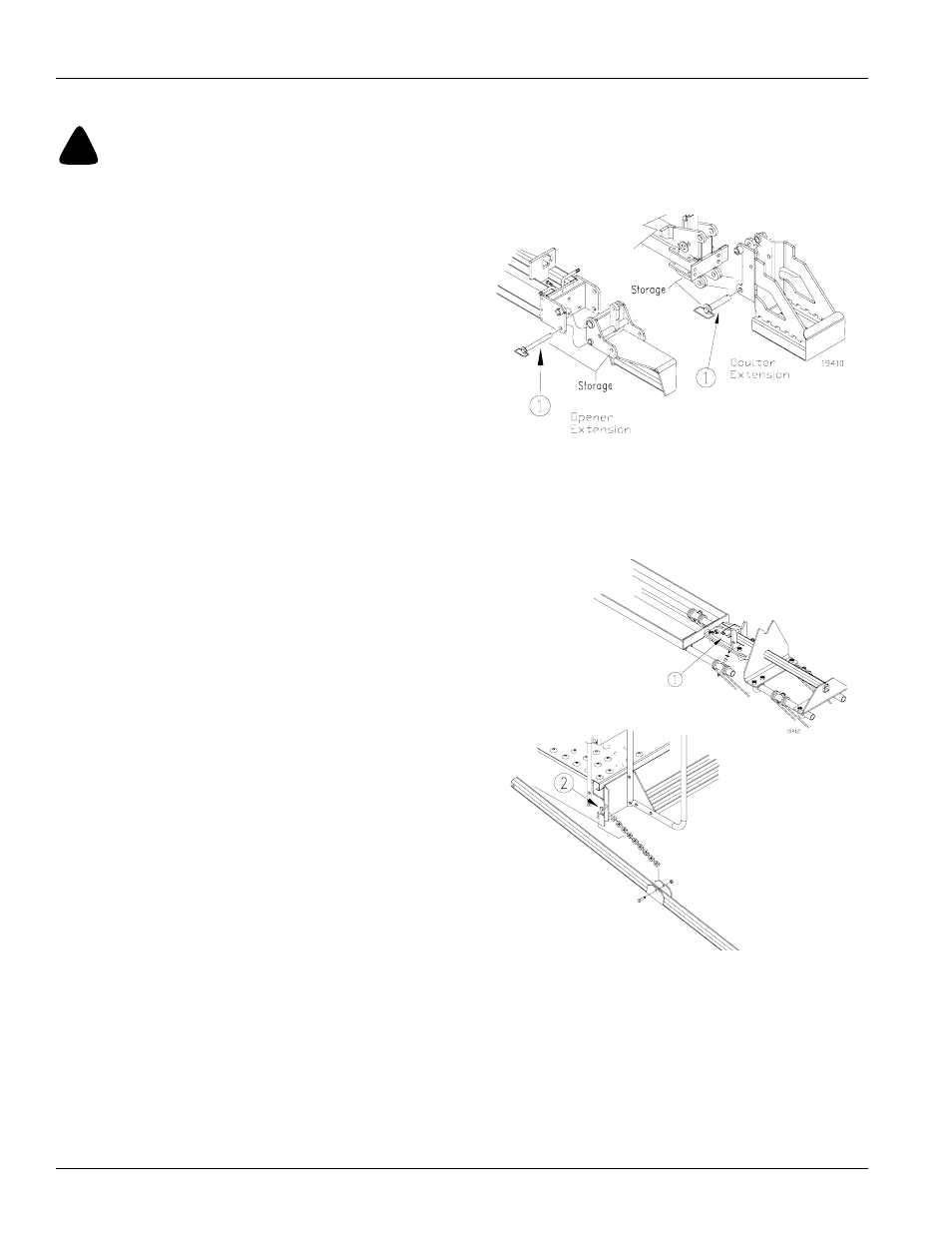

Refer to Figure 17
1. Pull pins (1) and put them in their storage places. Ac-
tivate hydraulics slowly folding drill until cylinders are
fully stroked. (Coulter cylinders extend to fold and
opener cylinders retract to fold)..
2. I f markers are an option on the drill be sure they are in
the upright position.
Refer to Figure 18
3. If Harrows are an option on the drill, they will need to
be folded by hand. With drill lowered remove pin (1)
and lift extensions over to rest on main harrow frame.
Replace pin in same holes.
4. The chain can also be used to lift the harrows further
up if need be. Grab chain, lift and slide chain link into
slot (2) located to the side of the steps.
