10 NTA 1000 and NTA 1300 148-528M 5/26/2006
Great Plains Mfg., Inc. Preparation and Set-Up
Hitching Tractor to Implement
!
DANGER!
You may be severely injured or killed by being crushed between
the tractor and drill. Do not stand or place any part of your
body between drill and moving tractor. Stop tractor engine and
set park brake before installing pins.

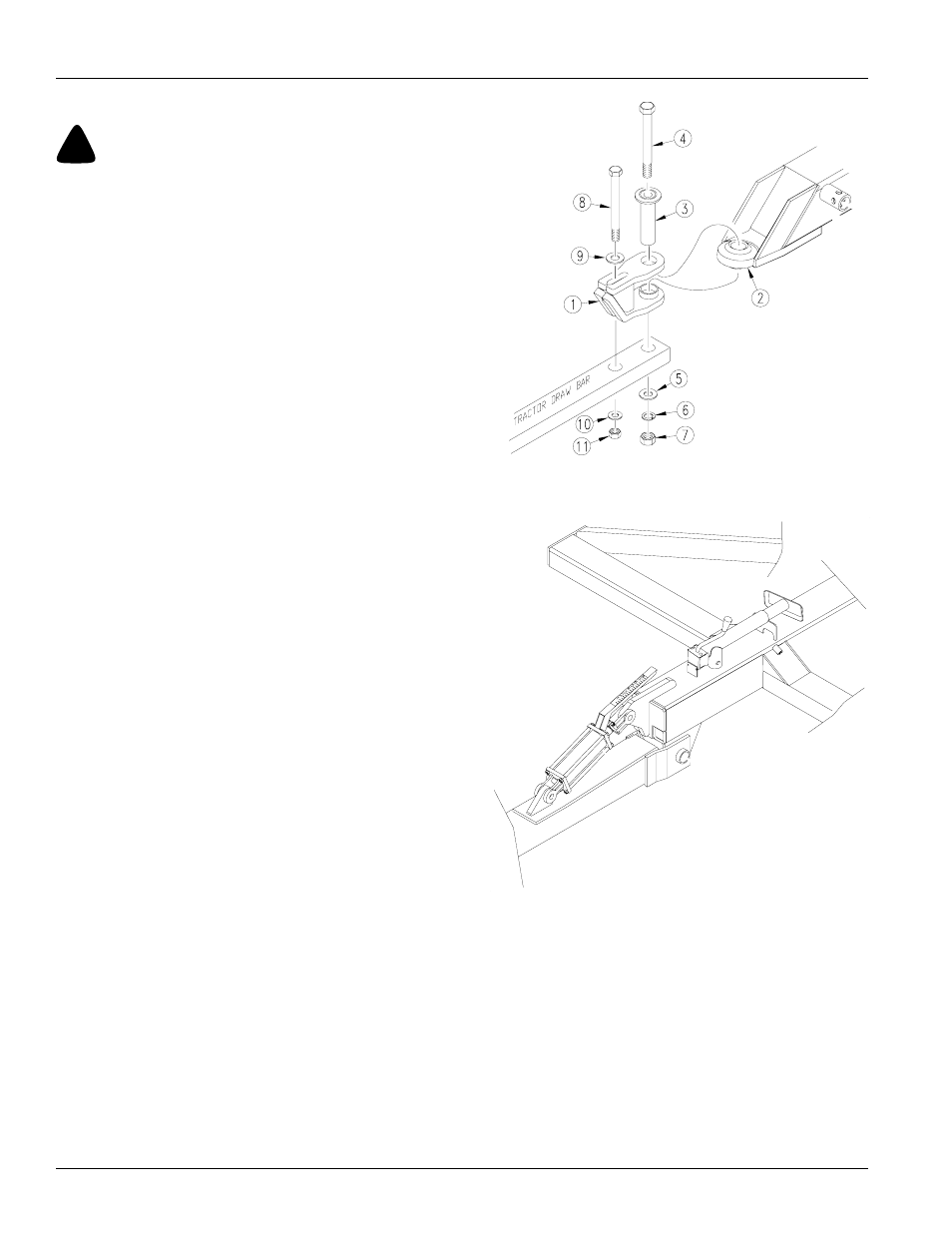

Refer to Figure 5
1. Place hitch weldment (1) over ball swivel on hitch
tongue (2). Hold hitch weldment in place by inserting
spacer tube (3) through hitch clevis and ball swivel.
2. Back tractor up to hitch and bolt hitch weldment to
tractor drawbar using 1-by-10-inch bolt (4), large flat
washer (5), lock washer (6), and nut (7).
3. Use 3/4-by-9-inch bolt (8) to bolt hitch weldment
through its slotted hole and onto secondary hole of
tractor drawbar. Install a 3/4-inch flat washer (9) next
to top slotted hole and fasten with a lock washer (10)
and nut (11). Tighten both bolts.
4. Securely attach safety chain to tractor-drawbar frame.
Refer to Figure 6
5. Remove jack from stob on side of hitch tongue and
place in transport position on implement.
Figure 5
Hitch
Figure 6
Jack In Transport
17215
19333
