This section will help you prepare your tractor and
implement for use.
Prestart Checklist
1. Read and understand “Important Safety
Information,” page 1.
2. Check that all working parts are moving freely, bolts are
tight, and cotter pins are spread.
3. Check that all grease fittings are in place and
lubricated. Refer to Lubrication, “Maintenance and
Lubrication,” page 29.
4. Check that all safety decals and reflectors are correctly
located and legible. Replace if damaged. See Safety
Decals, “Important Safety Information,”
page 4.
5. Inflate tires to pressure recommended and tighten
wheel bolts as specified. See “Appendix,” page 36.
Wiring Drill
NOTE: If tractor does not comply with ASAE connector, use
the European adapter.

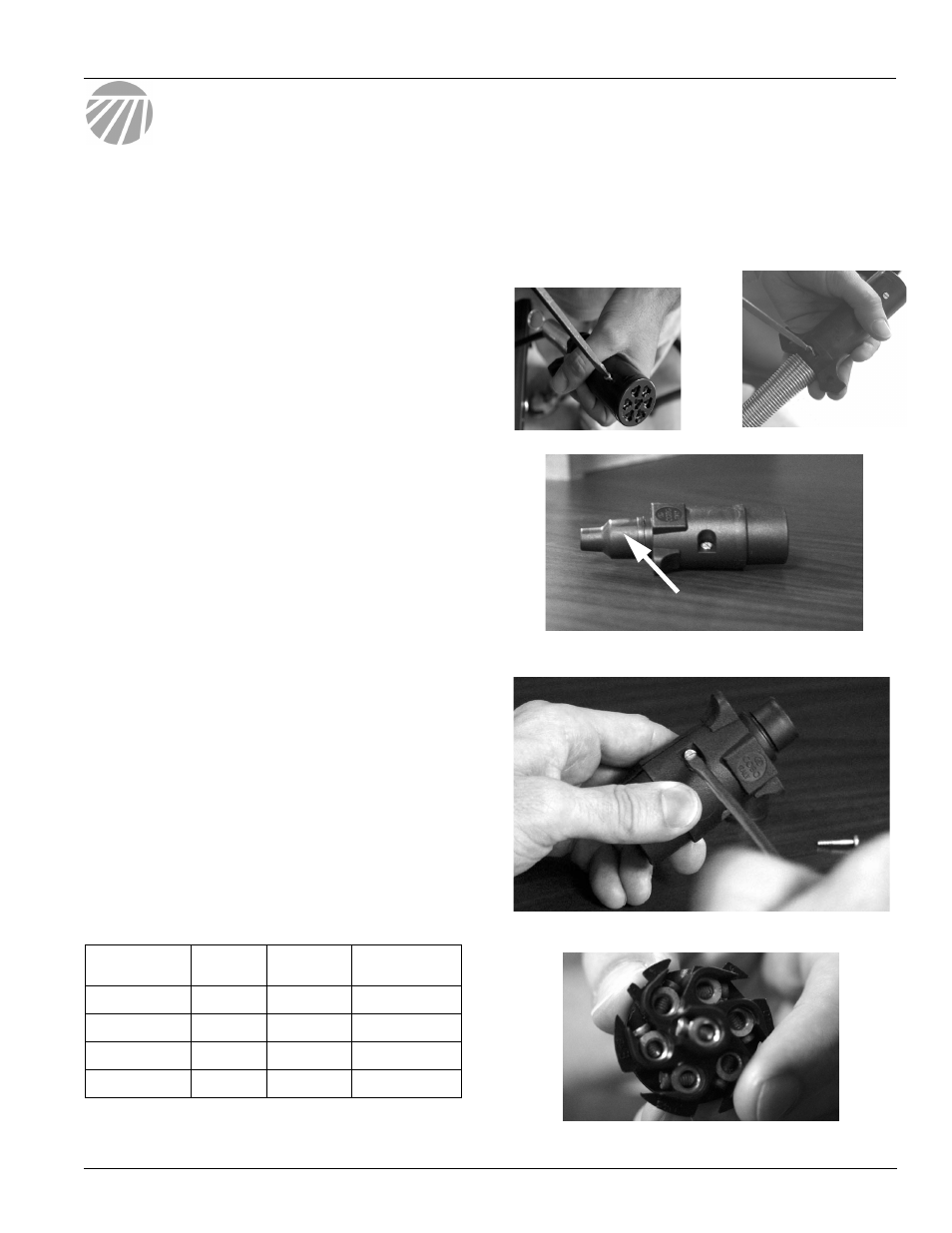

Refer to Figure 1
1. Remove screw from outer casing of ASAE connector.
2. Loosen screw holding wires in place from outer casing
of ASAE connector. Pull outer casing apart. Discon-
nect wires from connector by removing screws.
3. Completely remove outer casing from wires.
Refer to Figure 2
4. Remove black rubber end piece from European
adapter. Thread wires through black rubber end piece
starting with the smaller end.
Refer to Figure 3
5. Remove the two screws holding the outer casing of the
European adapter together. Keep for reuse.
6. Remove connector from outer casing. Thread wires
under metal bar in bottom of outer casing.
Refer to Figure 4
7. Attach wires to connector using the terminal number
indicators on the back of the connector and the table
below.
8. Align connector in bottom of outer casing.
NOTE: BE SURE CONNECTOR AND CASING ARE PROPERLY
ALIGNED, OR CASING WILL NOT FIT CORRECTLY.
Conductor
Identification
Wire
Color
Terminal
Number
Circuit
Wht White 3 Ground
Yel Yellow 1 Left Blinker
Grn Green 4 Right Blinker
Brn Brown 6 Tail Lamps
Preparation and Set-Up
Figure 2
European Adapter
23254
23255
9. Tighten screws securing wires and metal bar in place.
10. Replace top of outer casing. Insert and tighten screws re-
moved in step 3.
11. Slide black rubber end piece over the end of the outer cas-
ing securing the wires.
23264
23265 Figure 1
Removing ASAE Connector
