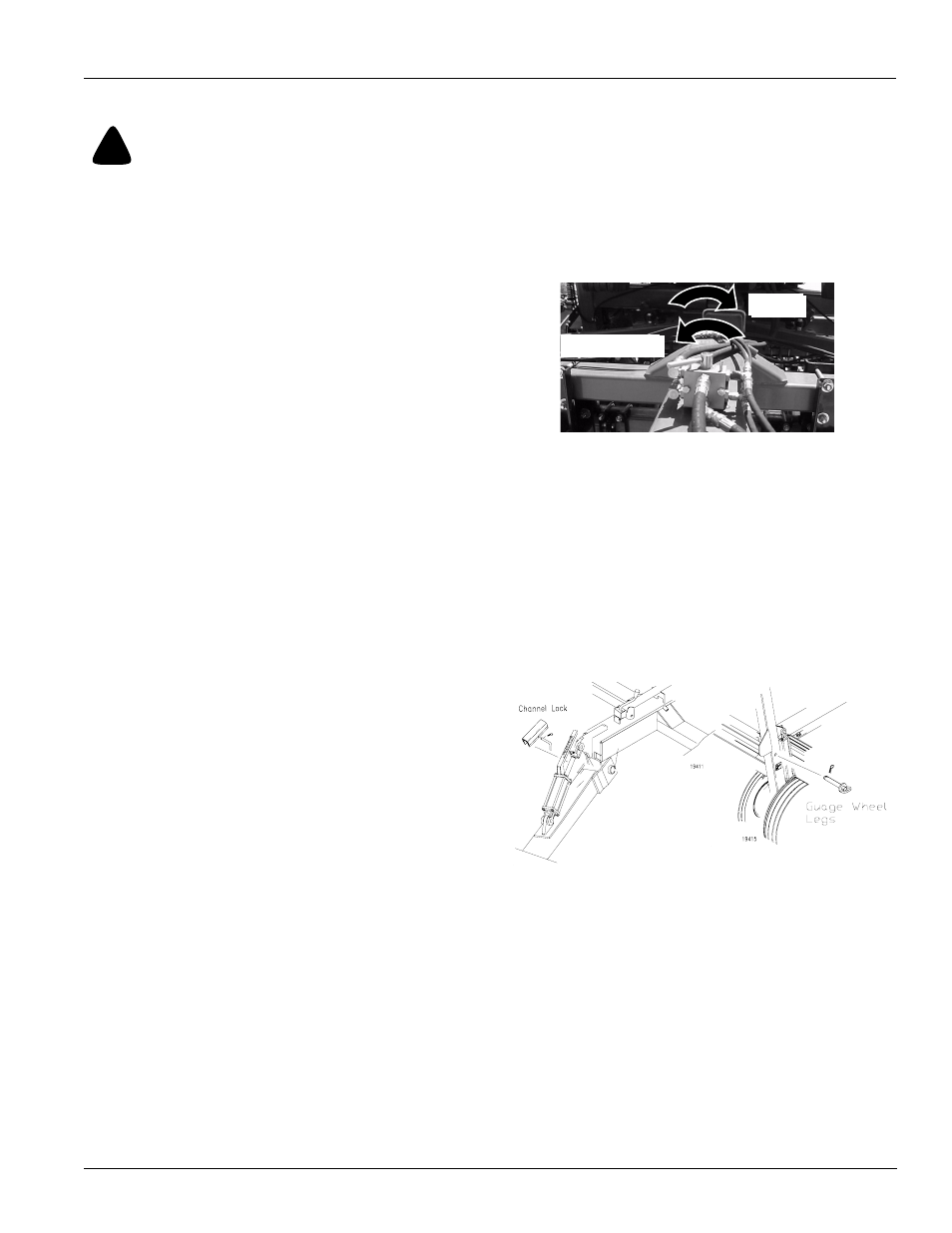

Figure 15
Valve
Figure 16
Lock and Pins
Folding the Drill
!
WARNING!
Pinch Point and Crushing Hazard. To prevent serious in-
jury or death:
• Always lift drill when folding.
• Fold only if hydraulics are bled free of air and fully
charged with hydraulic oil.
• Stay away from frame sections when they are being
raised or lowered.
• Keep away and keep others away when folding or un-
folding drill.
Note: For the NTA 1000 drill, no options, there is no
folding required. Be sure to raise the drill and install
the lock channel to cylinder on tongue frame and
install transport pins in guage wheel legs when
transporting. Refer to figure 12 on the bottom of
this page.
Note: For the NTA 1300, no options, there is folding
required when transporting.
Note: Raise and fold the drill on level ground with
the tractor in neutral.
Refer to Figure 15
1. Turn handle on valve to folding position.
Refer to Figure 16
2. Place channel lock and guage wheels pins in
position to lock drill for transporting.
Folding
Fan
19411
19415
19449
