Install New Right Hand Hopper

Front Page

Part Lists

Great Plains Manufacturing, Inc.

3

08/16/2011

Front Page

Part Lists

403-612M

Install New Right Hand Hopper

Refer to Figure 3
The right hand and left hand opener mounts are offset.
Be sure the placement is correct for right/left offset orien-
tation.

Install Hopper Support Mount

5.

Select:
1

403-565H RH HOPPER MOUNT WLDMNT

2

802-017C HHCS 3/8-16X1 GR5

1

802-323C HHCS 1/2-13X6 1/2 GR5

1

803-169C HEX FLG LOCK 1/2-13 PLT

2

803-209C FLANGE LOCK 3/8-16 PLT

Secure mount to opener arm bracket using bolt
and nut

, just below this hardware insert bolts

and flange locks

. Tighten.

Place Hopper on Mount

6.

Select:
1

403-594K HOPPER ASSEMBLY RH

4

802-092C RHSNB 5/16-18X3/4 GR5

4

803-177C

NUT HEX FLG TP LK 5/16-18ZNYCR

Place new 1.6 bu hopper

on hopper mount

and adjoin bottom opening to seed tube. Secure
hopper to mount with four carriage bolts

and

nuts

.

Connect Meter Air Hose

7.

Select one:

800-060C CABLE TIE .19X14.25 3DIA 50

Route the air hose through the top left hand corner
of the mount and reconnect it to the air inlet elbow
on the tube meter securing with the clamp saved
earlier.

8.

Secure the air hose to the tab mount

with the

cable tie

.

Connect Blockage Monitor Wire

9.

Select one:

800-112C CABLE TIE .19X7.25 1.75D 50

Route the blockage monitor cable through the hole
in the front of the mount

and reconnect to the

harness. Secure the cable to the mount

with

cable tie

through hole

in the mount and

opener.

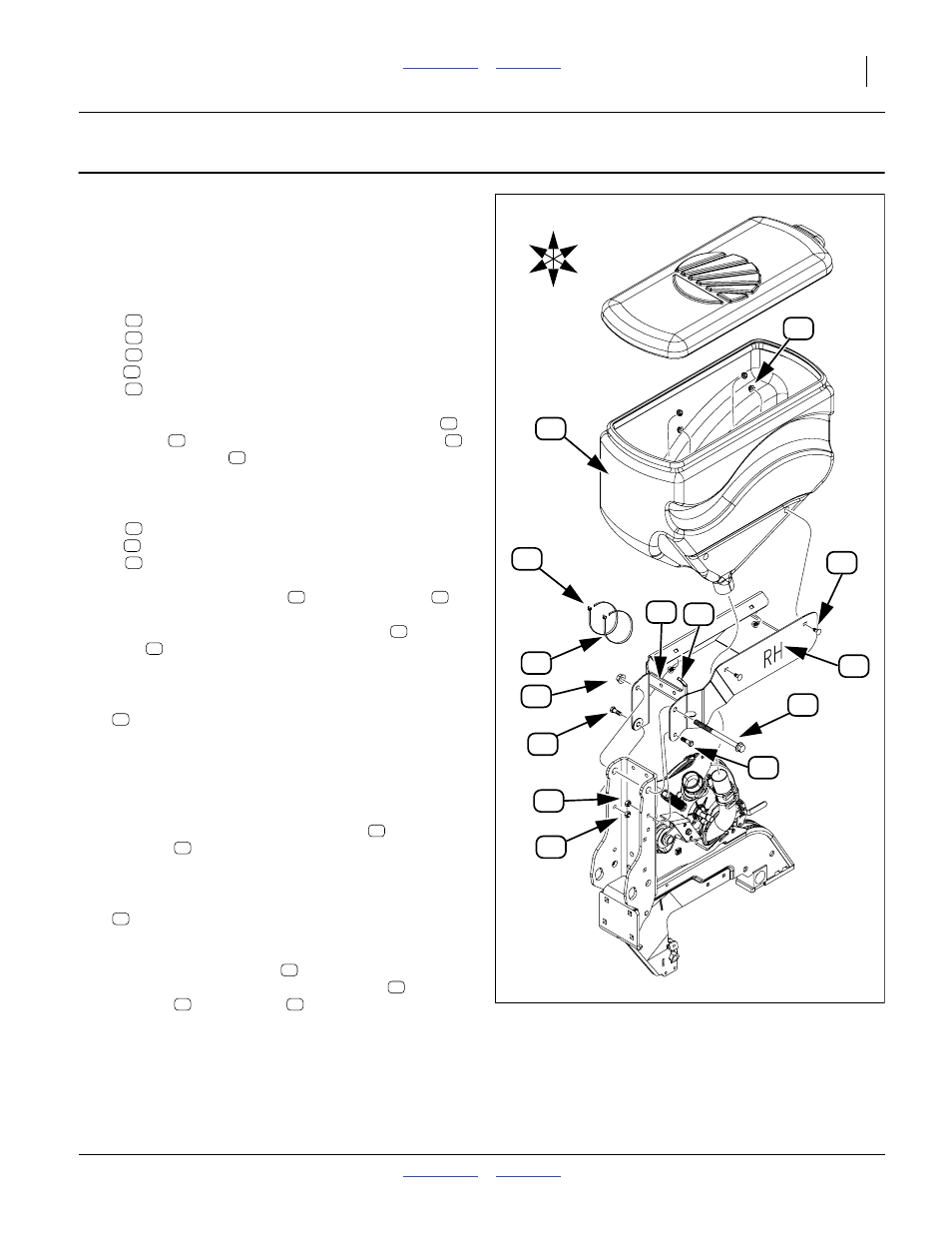

Figure 3

Right Hand Hopper

32233

U

D

F

B

L

R

12

13

16

17

18

19

20

18

31

98 99

32

21

21

12

18

19

20

21

19

20

18

21

13

31

32

13

12

31

32

16

99

16

17

12

12

17

98
