Yield-Pro® Double Unit Mount
Row Cleaner Installation
Double Arm
Refer to Figure 2
1. Assemble row cleaners to the row cleaner
arms.
2. Insert the arm pivot bushings (5) in the upper
holes of the unit mount (3). Insert the bush-
ings from the outside and press until the
shoulder of the bushing rests against the
frame.
3. Insert the 1/2” x 1 3/4” carriage bolts (2) into
the row cleaner mount (1).
NOTE: Insert the bolts from the outside so the
nuts will be on the inside of the frame.
4. Thread on the 1/2” flange nuts (6) and tighten.
NOTE: Double arm row cleaner mounts in up-
per hole of unit mount.

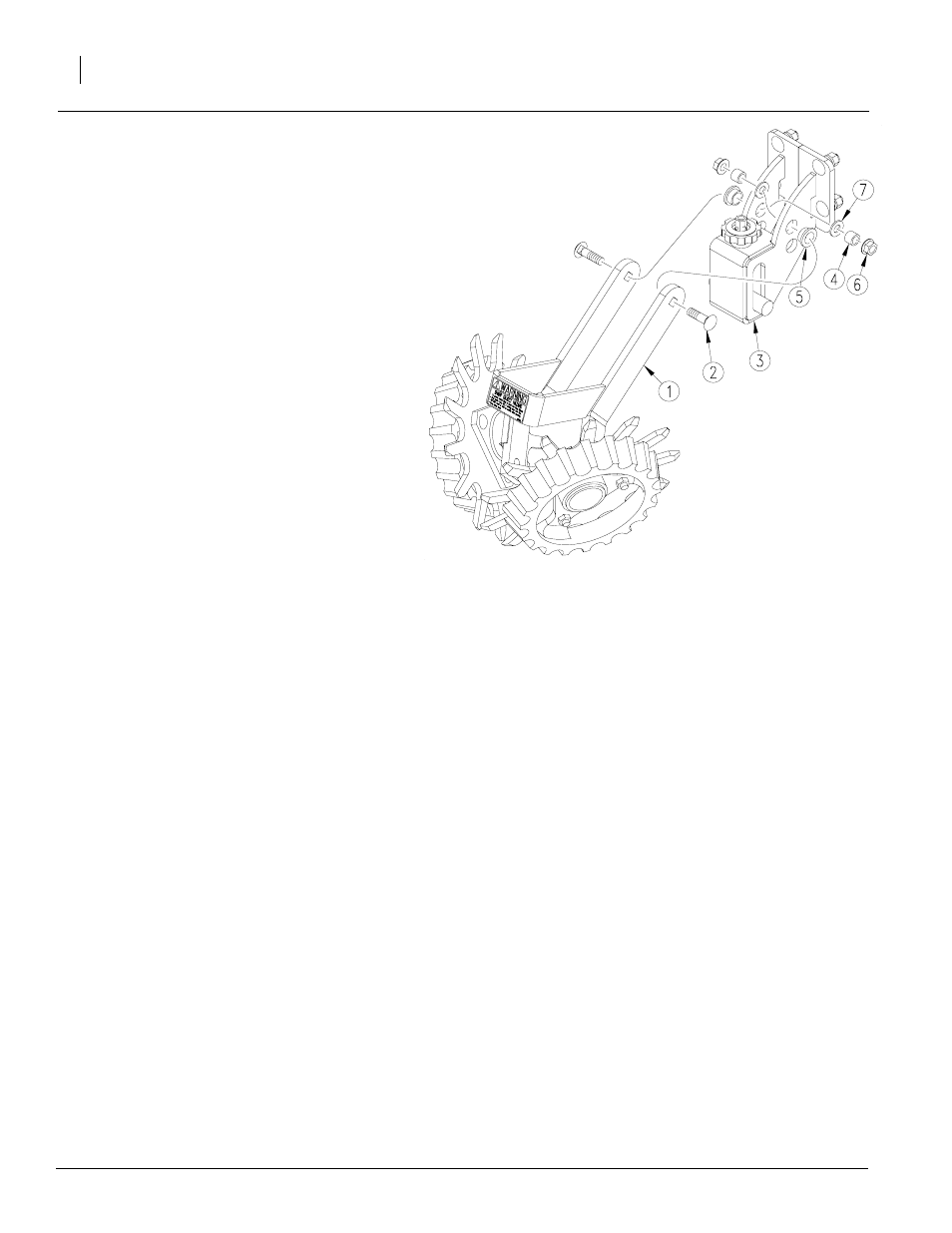

Figure 2
Double Arm Assembly
22943
