10 3500-4000TM Great Plains Manufacturing, Inc.
586-537M 12/03/2013
Introduction
Great Plains welcomes you to our growing family of new
product owners. The Turbo Max has been designed with
care and built by skilled workers using quality materials.
Proper setup, maintenance, and safe operating practices
will help you get years of satisfactory use from the
machine.
Models Covered
Description of Unit
The 3500-4000TM Turbo Max is a three or five section
“vertical” tillage tool. Working width ranges from 35 to 40
feet. The implement is designed to cut and size residue,
till soil for faster seedbed warming, break up soil crust on
hard dried fields while eliminating compaction layers.The
front and rear gangs may be adjusted from 0-6 degree
angle, depending on the aggressiveness desired. Vari-
ous finishing attachments are also available to further
smooth, redistribute residue, kill weeds, and break clods
Document Fam
ily
Using This Manual
This manual will familiarize you with
safety, assembly, operation, adjust-
ments, troubleshooting, and mainte-
nance. Read this manual and follow
the recommendations to help
ensure safe and efficient operation.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
A crucial point of information related to the preceding topic.
Read and follow the directions to remain safe, avoid serious
damage to equipment and ensure desired field results.
Note: Useful information related to the preceding topic.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.
3500TM 35’ (7.5in) spacing
4000TM 40’ (7.5in) spacing

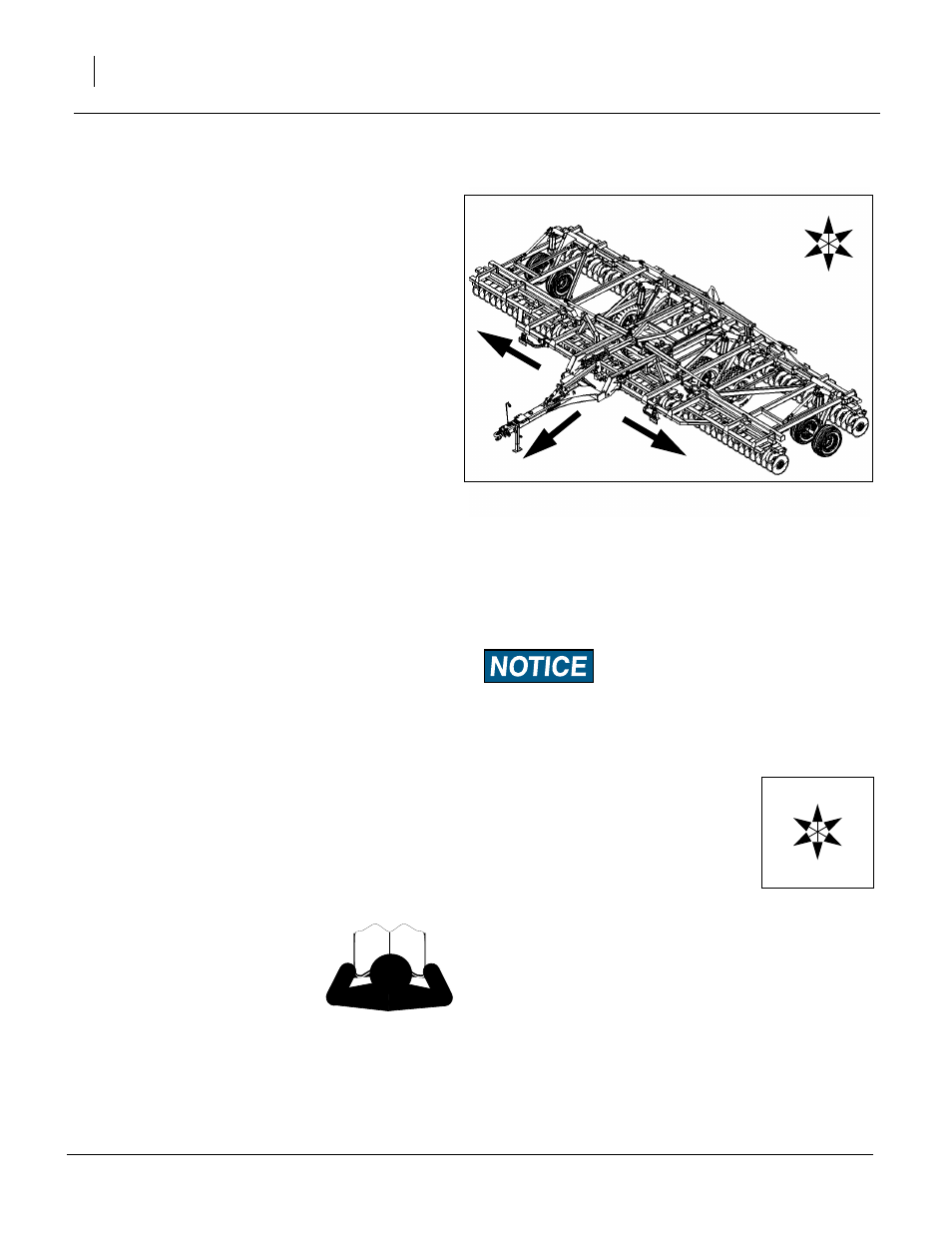

Figure 1
3500TM Turbo Max
43102
L
R
U
D
F
B
L
R
586-537Q-ENG Assembly Manual
586-537Q Pre-Delivery Manual
586-537M Operator Manual (this document)
586-537P Parts Manual
U
D
F
B
L
