Shutting Off Seed Flow
Refer to Figure 33
Figure 33 shows the sliding seed tubes in the
open position. To shut off seed flow, move front
tubes backward and back tubes forward. The fol-
lowing instructions explain how to shut off seed
flow to each meter.
Refer to Figure 34
1. Remove the retaining clip and pull pin. Do not
remove cotter pin.
2. Move meter cap to position seed tube over
shut off pad.
Refer to Figure 35
3. Place pin in hole of meter cap and install re-
taining clip.
4. Repeat steps 1 through 3 for each meter.
NOTE: When pin with retaining clip is located
in the slot, sliding seed tube is open. When pin
with retaining clip is located in the hole, slid-
ing seed tube is closed.

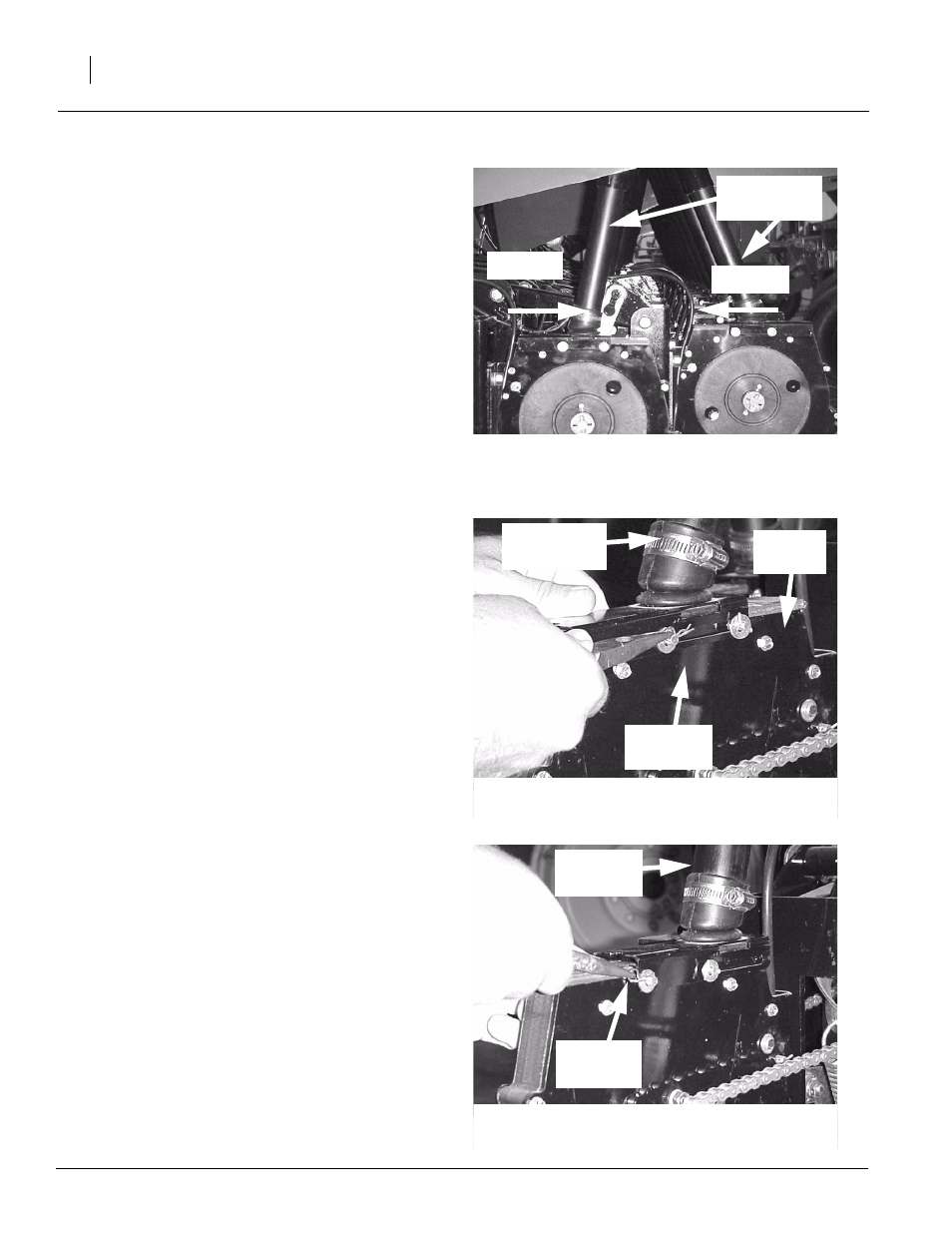

Figure 33
Sliding Seed Tubes in open positions
18290
Shut off
Shut off
Sliding seed
tubes
Figure 34
18302
Retaining
clip
Shut off
pad
Sliding seed
tube
Figure 3 18303
Retaining
clip
Sliding
seed tube
Figure 35 18303
