27 Adjustments
20 Series Openers
Opener Down Pressure
Refer to Figure 20
Opener springs provide the down pressure nec-
essary for opener disks to open a seed trench.
The springs allow the openers to float down into
depressions and up over obstructions.
You can adjust down pressure individually for
each opener. This is useful for penetrating hard
soil and planting in tire tracks.
Use enough down pressure to cut the seed trench
and maintain proper soil-firming over seed. Ex-
cessive opener down force will lead to premature
wear on opener components.
Refer to Figure 21
To adjust down pressure, use adjustment tool
stored under walkboard. Position tool in holes on
spring mounting plates, and pull down. Move the
adjustment cam to the new setting.
Refer to Figure 22
Minimum and maximum settings are indicated by
position of adjustment cam.

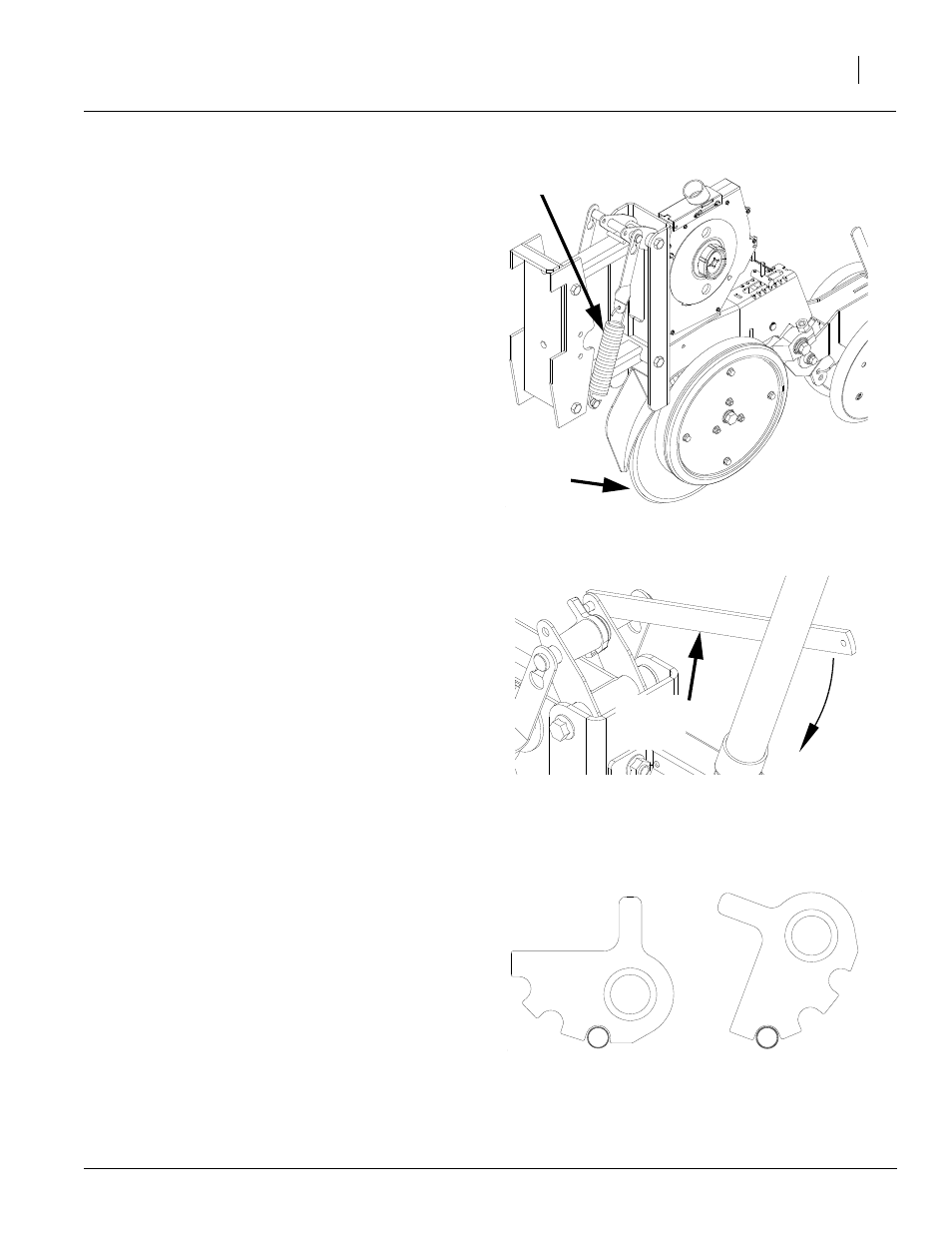

Figure 20
20 Series Opener with Meter
Opener spring
Disk
18273
Adjustment
tool
Figure 2
Press Wheel Adjustment
18409
Figure 21
Press Wheel Adjustment
18409
Figure 22
Adjustment Cam Settings
12104
Minimum setting Maximum setting
