2410P and 2420P
118-769M 2012-04-17
16
Hydraulic Hose Hookup
Refer to Figure 3
Current Style Color Coded Hose Handles
Great Plains hydraulic hoses have color coded
handle grips to help you hookup hoses to your
tractor outlets. Hoses that go to the same remote
valve are marked with the same color.
To distinguish hoses on the same hydraulic circuit,
refer to the symbol molded into the handle grip.
Hoses with an extended-cylinder symbol feed cyl-
inder base ends. Hoses with a retracted-cylinder
symbol feed cylinder rod ends.
Older Style Hoses with Color Ties
Hoses that go to the same remote valve are
marked with the same color tie.
To distinguish hoses on the same hydraulic cir-
cuit, refer to plastic hose holder. Hose under
extended-cylinder symbol feeds cylinder base
ends. Hose under retracted-cylinder symbol
feeds cylinder rod ends.
Color Hydraulic Function
Green Marker Cylinders
Color Hydraulic Function
Orange Marker Cylinders
31733

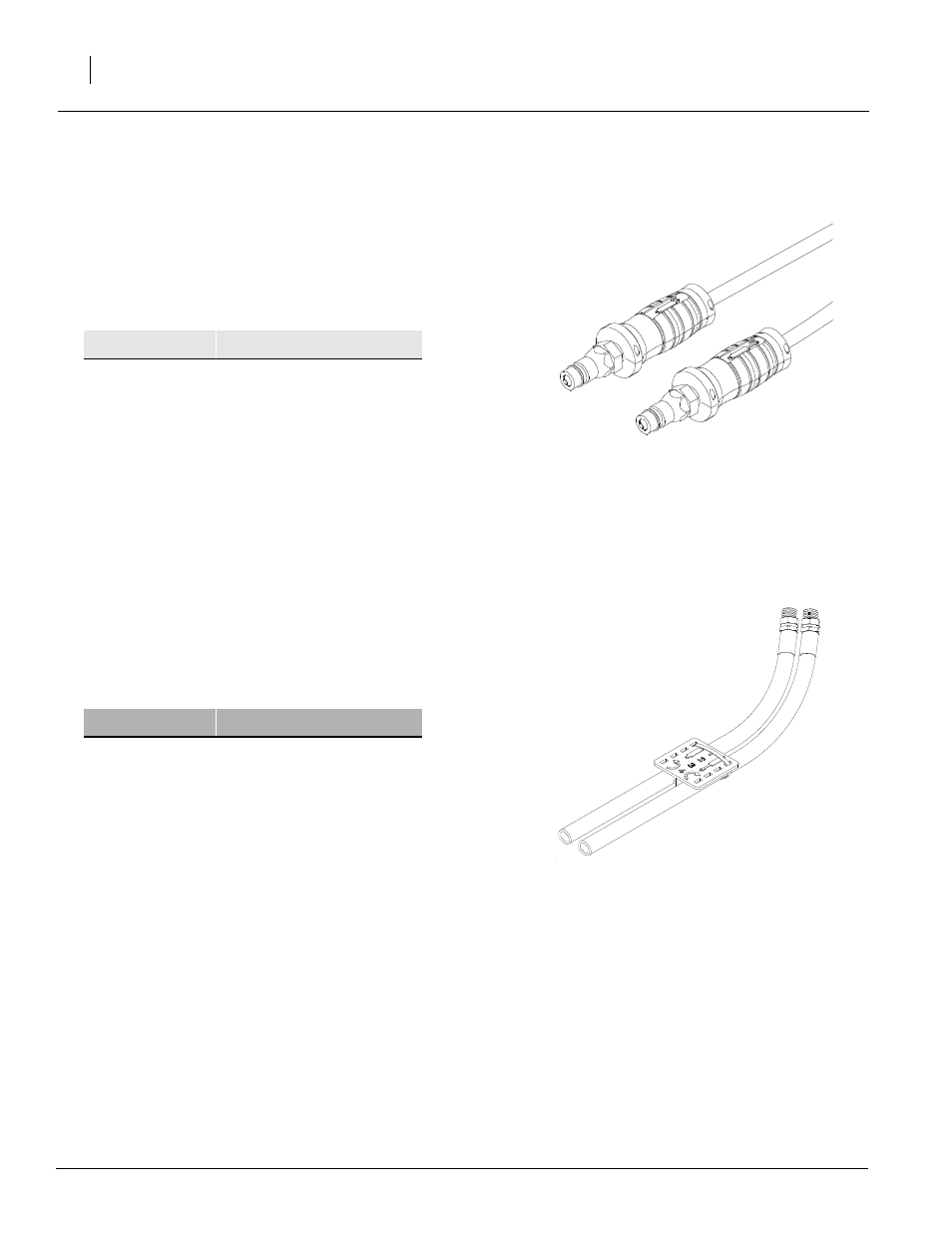

Figure 3
Color Coded Hose Grips
17641
Hydraulic Hose Label
