Great Plains 7336 DH Predelivery Manual - Manual (Page 11)

2014-06-25 556-235Q
Great Plains Manufacturing, Inc. 7
Assembly
Narrow Center Hub and Wheel Assembly
Refer to Figure 4
Note: All bolts will be pre-installed on the unit in their
proper location. Bolts will need to be removed and
then re-installed during assembly. See “Parts
Manual” for complete break down of parts. For
7330-7336 models, skip to, See “Wide Center
Frame Assembly” on page 8.
1. Set pre-assembled center frame section on
stands that are tall enough to allow for installation
of the wheel hubs and tires as shown. See “Wide
Center Frame” on page 8, for Models 7330-7336.
2. Bolt on rear fold bracket with
3 ⁄
4
” x 2
1 ⁄
2
” hex
bolts and secure with
3 ⁄
4
” lock washers and
3 ⁄
4
” nuts.
3. Remove
1 ⁄
2
” x 4
1 ⁄
2
” Gr. 5 hex bolt from walking
beam. Slide the hub/spindle assembly into the walk-
ing beam and reinstall the hex bolt and secure with
1 ⁄
2
” lock nut.
Note: The center uses 340/60R 16.5 tires while the
wings have 12.5Lx15 tires.
4. Install tire/wheel to hub assembly with
5 ⁄
8
” lug
nuts .
5. Bolts may be tightened to specs, See “Torque Val-
ues Chart” on page 19.
11
12
13 14
15
16 17
18
11
12
13
14
16
18
15
17
U
D
F
B
L
R

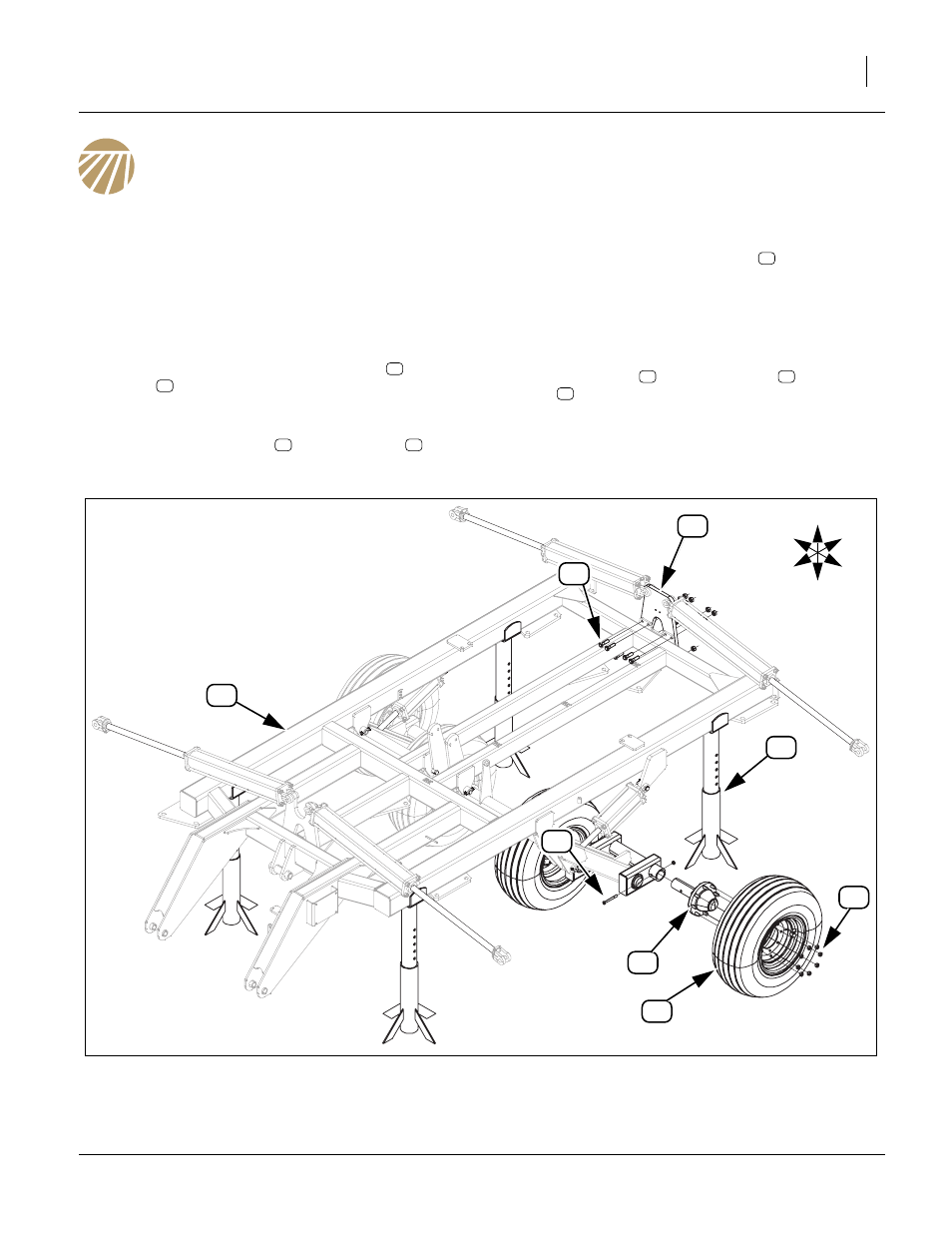

Figure 4
Narrow Center Hub and Wheel
43447
