Introduction
Great Plains welcomes you to its growing family of new
product owners. Your Semi-Mounted 8-Foot No-Till Drill
has been designed with care and built by skilled workers
using quality materials. Proper setup, maintenance, and
safe operating practices will help you get years of
satisfactory use from the machine.
Description of Unit
The 3P806NT is a towed seeding implement. This drill
has a working width of 8 feet (2.5 m). The drill has
straight arm, double disc 06 Series openers. The opener
discs make a seed bed, and seed tubes mounted
between the discs place seed in the furrow. Press
wheels following the opener discs close the furrow and
gauge opener seeding depth. A T-handle on the opener
body makes seeding depth adjustments.
The metering system is driven from the forward gauge
wheel. Seeding rates are set by rate adjustment handles
and a Drive Type gear box for a main seed box. Native
Grass rates are set by sprocket selection.
Intended Usage
Use this drill to seed grasses or production-agriculture
crops or to seed over existing grass stands, in ground
conditions that are flat to semi-flat or gently rolling.
Models Covered
This manual applies to Great Plains drill model:
Standard 3P806NT Models have a main seed box. A
second main seed box (Dual Seed), Fertilizer, Native
Grass and/or Smalls Seeds capability may be added.
This manual covers both current and previous
Great Plains 3P806NT models. Some significant
operating differences are noted by headings with serial
number breaks A1056V- and A1057V+ (“-” is “and
lower”, “+” is “and higher”).
Using This Manual
This manual familiarizes you with safety, assembly,
operation, adjustments, troubleshooting, and
maintenance. Read this manual and follow the
recommendations to help ensure safe and efficient
operation.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Document Family
Identifies an Economic (not a Safety) Risk:
NOTICE provides a crucial point of information related to the
current topic. Read and follow the instructions to avoid damage
to equipment and ensure desired field results.
Note: This form sets off useful information related to the
current topic, or forestalls possible
misunderstanding.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.

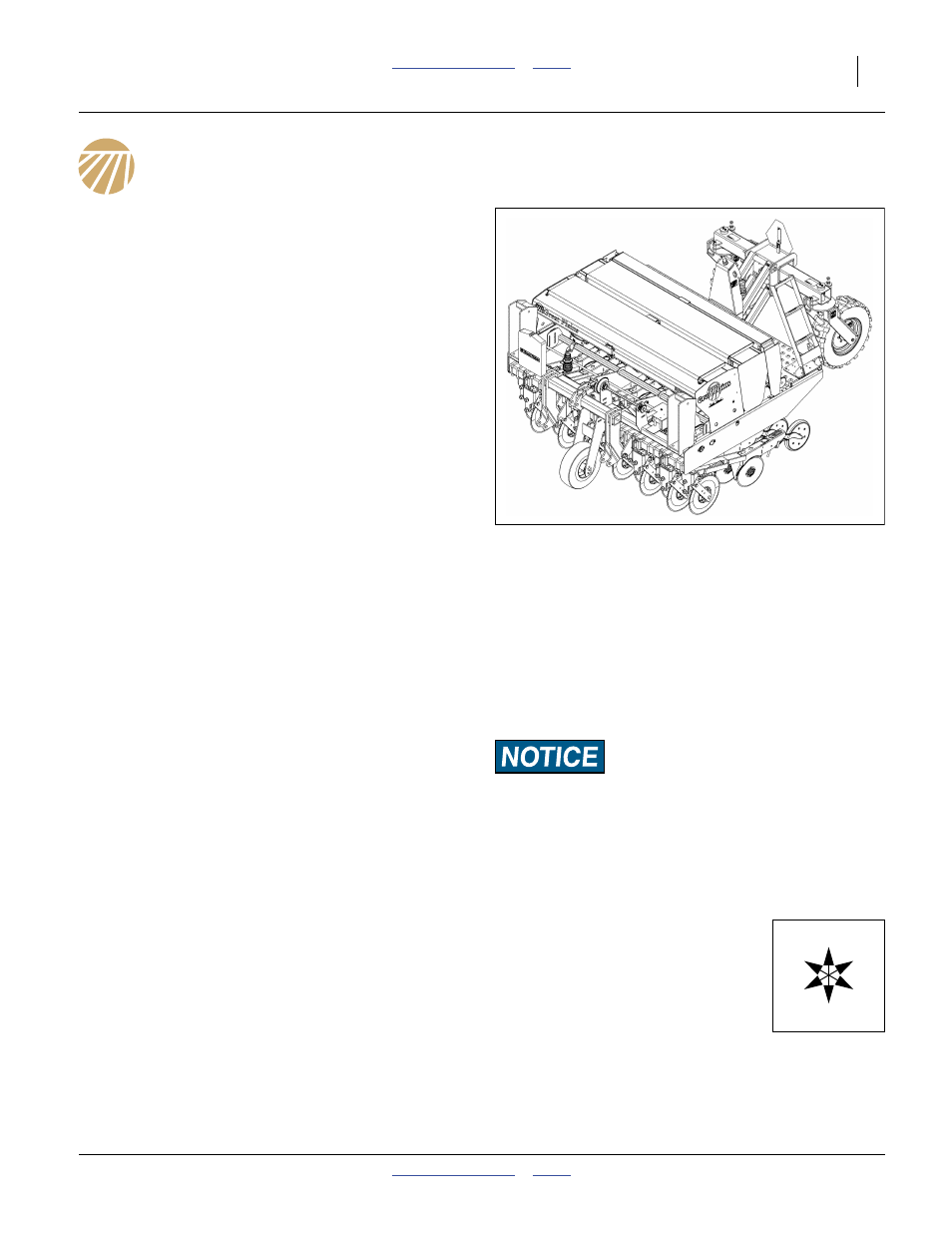

Figure 1: A1057V+
3P806NT Semi-Mounted No-Till Drill
28357
3P806NT-1375 15-row 7.5-inch (19.1 cm)
151-143M Operator Manual (this document)
151-143P 3P806NT Parts Manual
151-143B Seed Rate Manual
U
D
F
B
L
R
